Capacitance Measurement

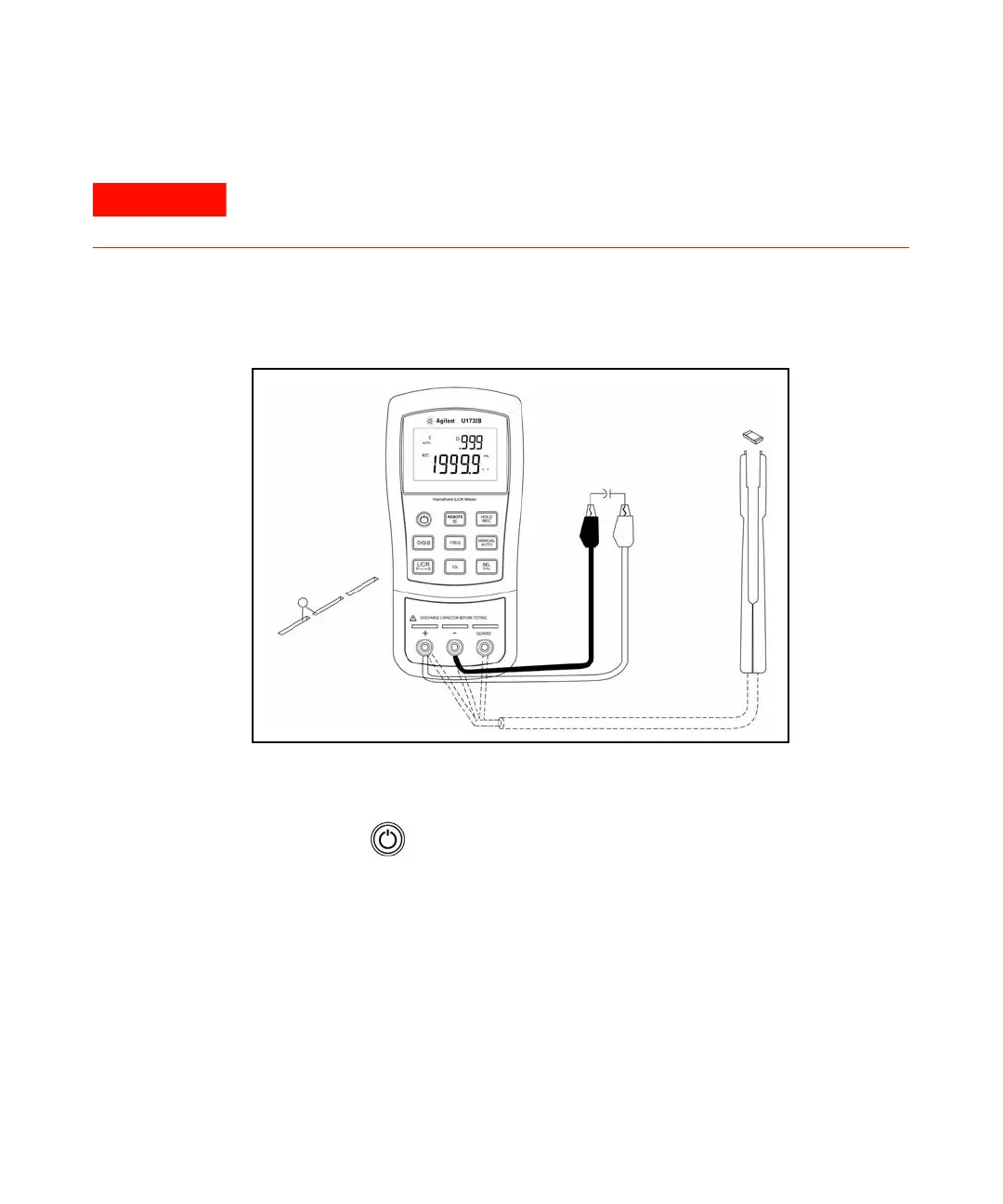

Figure 2-2 Capacitance measurement
1 Press the key to turn on the LCR meter.
2 Press the L/C/R key to select capacitance (C) measurement.
3 Insert a capacitor into the component receptacle socket or connect the
test clip to the component leads as required.
4 Press the FREQ key to select testing frequency.
5 Press the D/Q or D/Q/q key to select D factor for secondary display.
6 Read the display readings for capacitance value and dissipation factor.
To avoid electrical hazards, discharge the capacitor to be tested before measuring.
