17 Technical Information
TwisTorr 74 FS On Board Controller Installation
322/342 TwisTorr 74 FS User Manual / 87-901-053-01

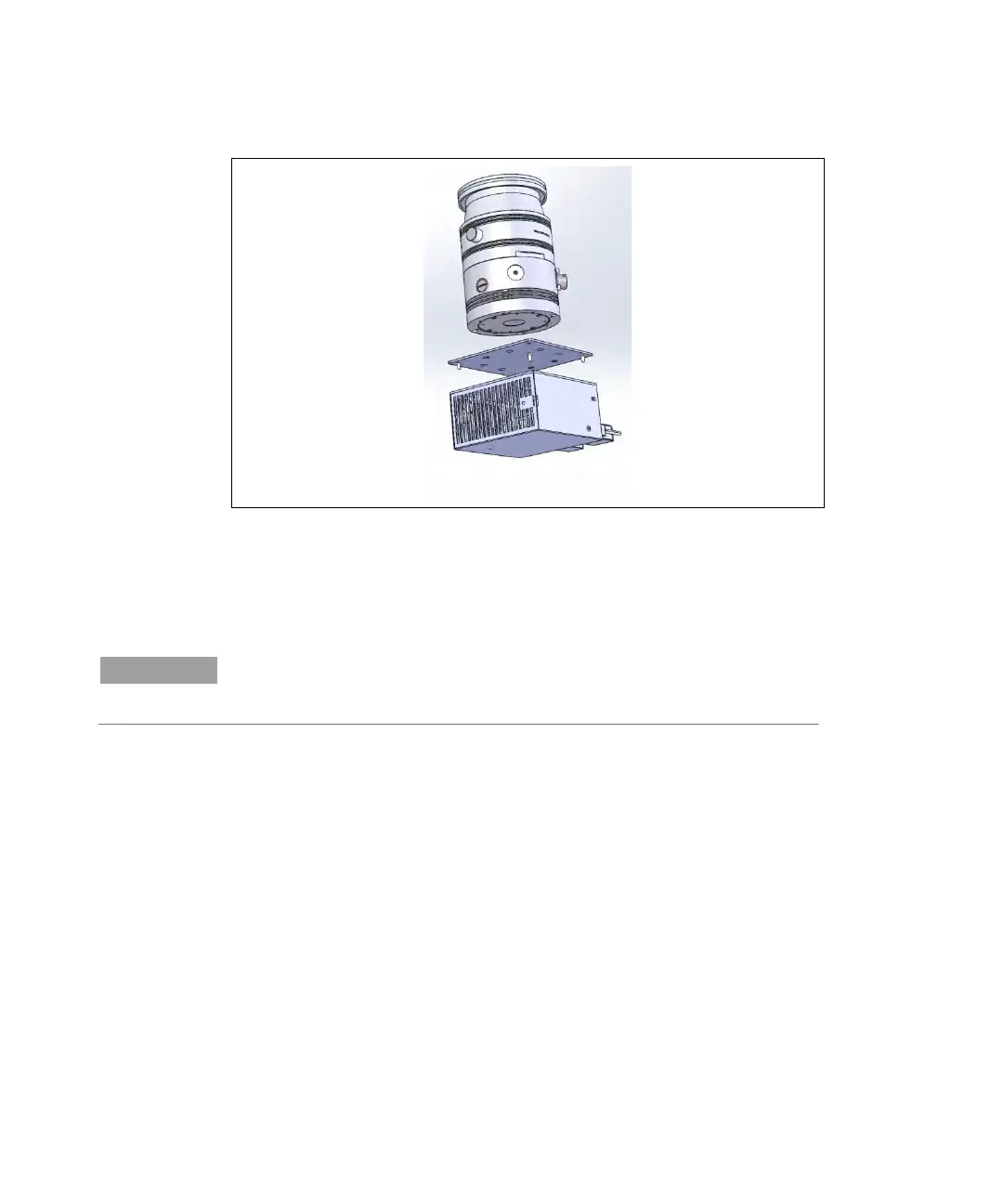

Figure 40
Mounting 1
Side Mounting
NOTE
The L-shaped bracket (P/N X3500-68006) is available as an option.
See the following figure.
1 Screw the 4 fixing studs (provided with the accessories bag) in
the holes on the L-shaped bracket;
2 Place the controller on the studs aligning the 4 rubber holes on
the controller top;
3 Press the controller towards the bracket;
4 Turn the pump upside-down;
5 Place the bracket on the pump bottom;
6 Screw a little bit the three screws M4 in the holes on the pump
bottom;
7 Rotate the bracket until the controller is on the chosen position;
