Agilent Technologies X3502-64170

Technical Information
TwisTorr 74 FS On Board Controller Installation
17
TwisTorr 74 FS User Manual / 87-901-053-01 323/342
8 Tighten the screws properly;
9 Turn the pump up again;
10 Plug the line cord and connect the pump cable to the pump;
11 Connect the mating connector with the jumper on the interlock
signal to start the pump.

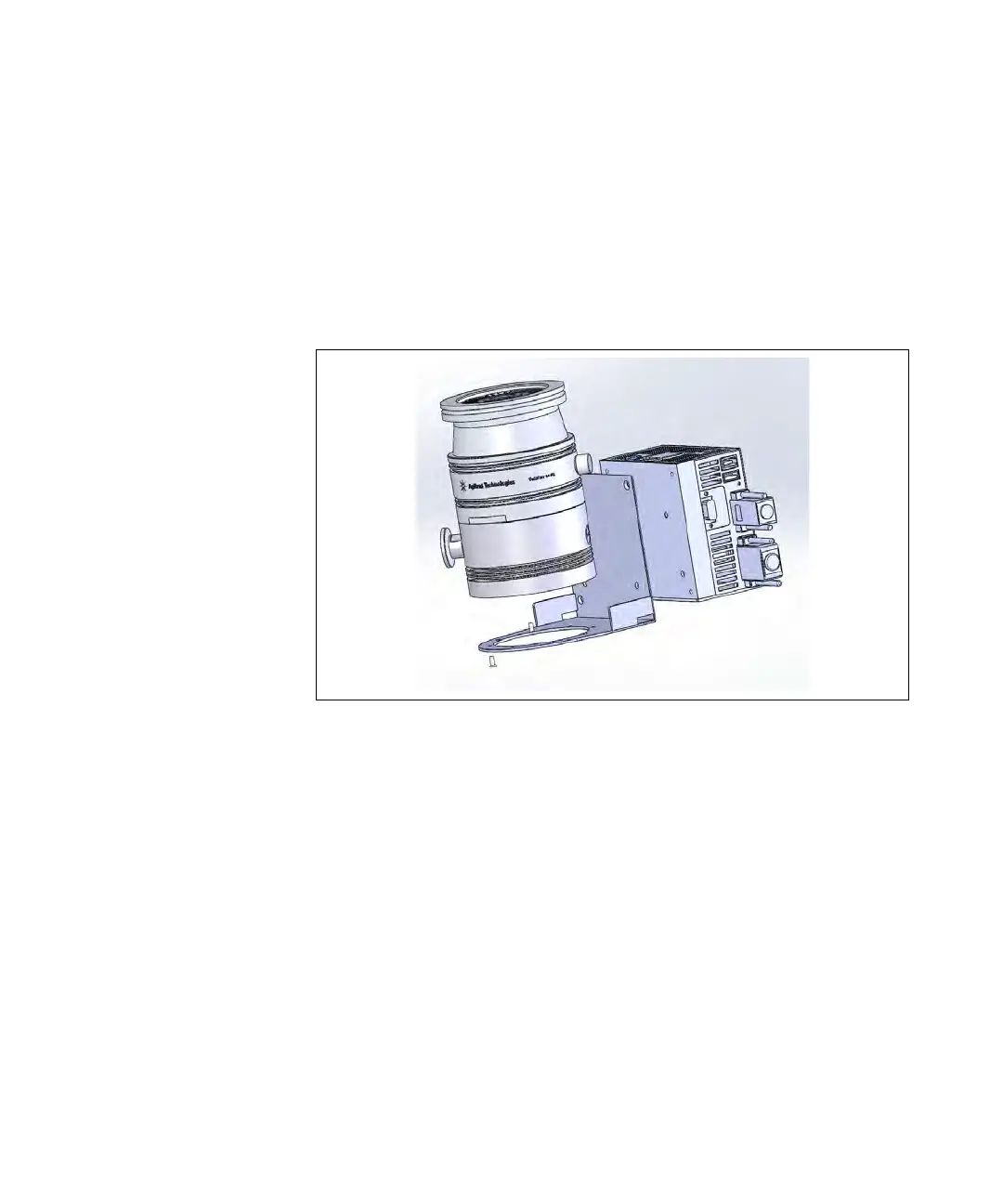

Figure 41
Mounting 2
