agria Multi-Purpose Machine 400E/400K 21

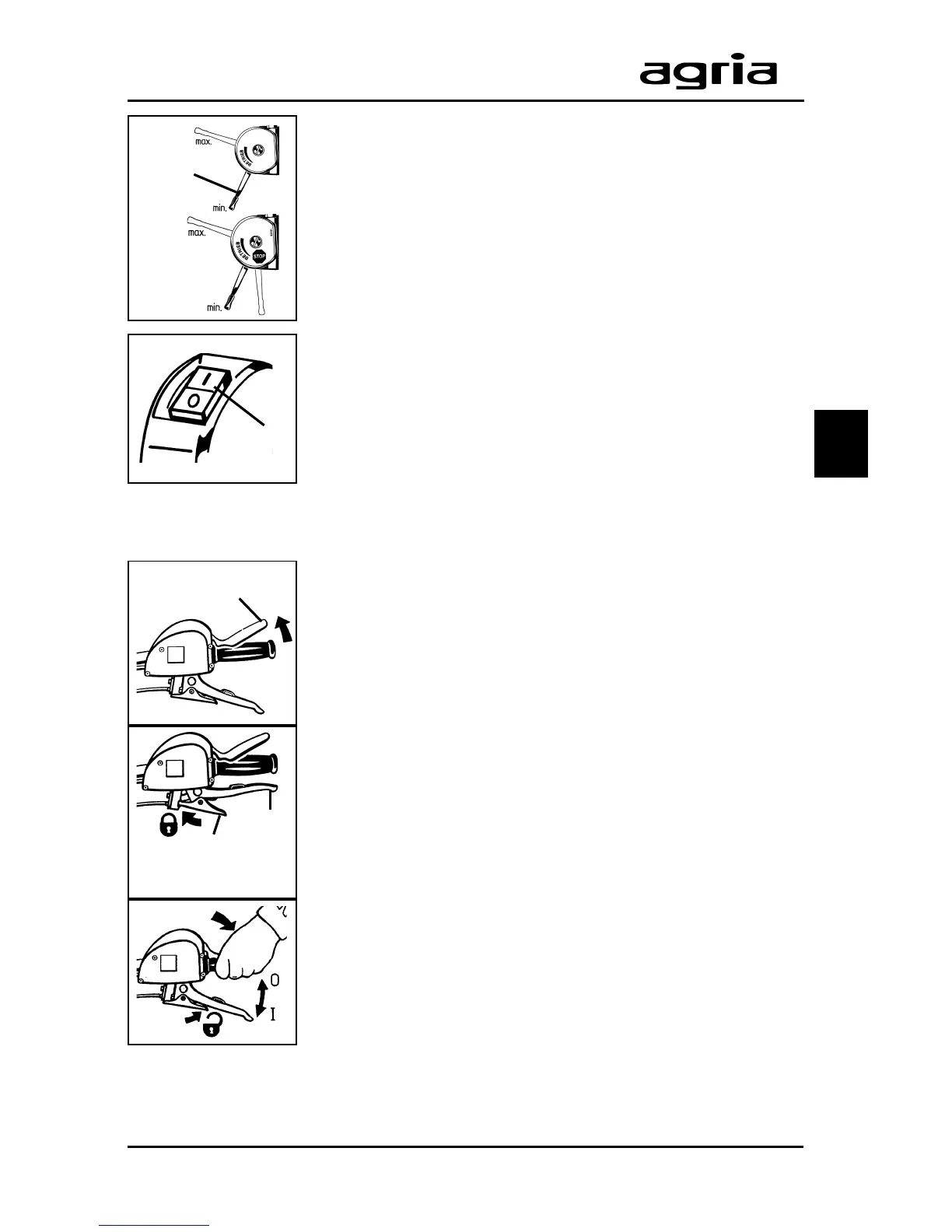

Speed Control Lever
The speed control lever (E/6 or G/9) on the steering handle
is for stepless control of engine speed from min = IDLING
to max = FULL THROTTLE to fit requirements.
With version engine 5 HP the speed control lever serves to
adjust the engine speed at infinitely variable steps and to
stop the engine.
Engine Shut-off Switch
The model with a Power Built engine is fitted with an electri-
cal motor off switch (E/12) which switches off the ignition
system when the switch is operated (engine is cut out).
Position "I" = Operating
Position “0” = Engine off
I
The engine shut-off switch serves as emengency-
off-switch. In a situation which requires a fast stop,
move the lever to position “STOP”
Safety Circuit
The multi-purpose machine is equipped with a safety switch.
Stop position: When releasing the lever (E/3 or G/3)
the ignition system is switched off (engine is cut out). Be-
ware – engine keeps running due to centrifugal mass.
Start position: For starting the engine and for short
breaks, pull the hand clutch lever (E/4 or G/4) and lock with
pawl (E/5 or G/5).
Operating position: To operate the machine, press
down the safety lever (E/3 or G/3).
W
Do not fasten the safety lever.
I
The safety lever also serves to switch off in an
emergency. Release the safety lever for fast engine
switch-off. The lever automatically goes to STOP position.
3. Devices and Operating Elements
3
E/12
E/9
G/9
E/3
G/3
E/4
G/4
E/5
G/5
