Agria 400E - Lubrication Chart

58 agria Multi-Purpose Machine 400E/400K

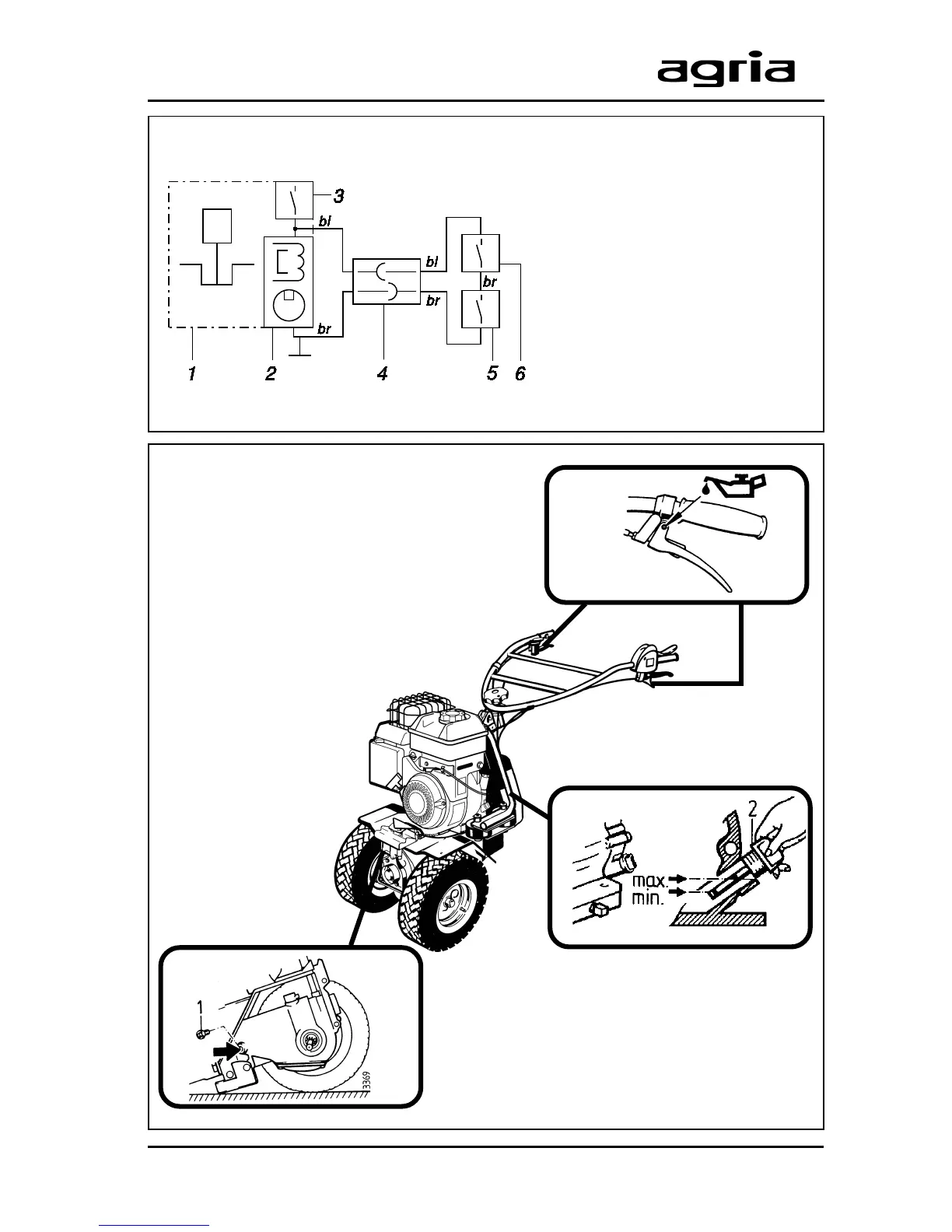

Electrical Wiring
1 Engine
2 Magnet ignition system
3 Engine-off-switch
(on speed control lever
next to engine)
4 Connector pair
5 Switch in safety lever
6 Switch in clutch lever
bl = blue
br = brown
Lubrication chart
1 Engine oil (page 45/46)
2 Transmission oil (page 50)
3 Lever bearing (page 53)
3
2
1
