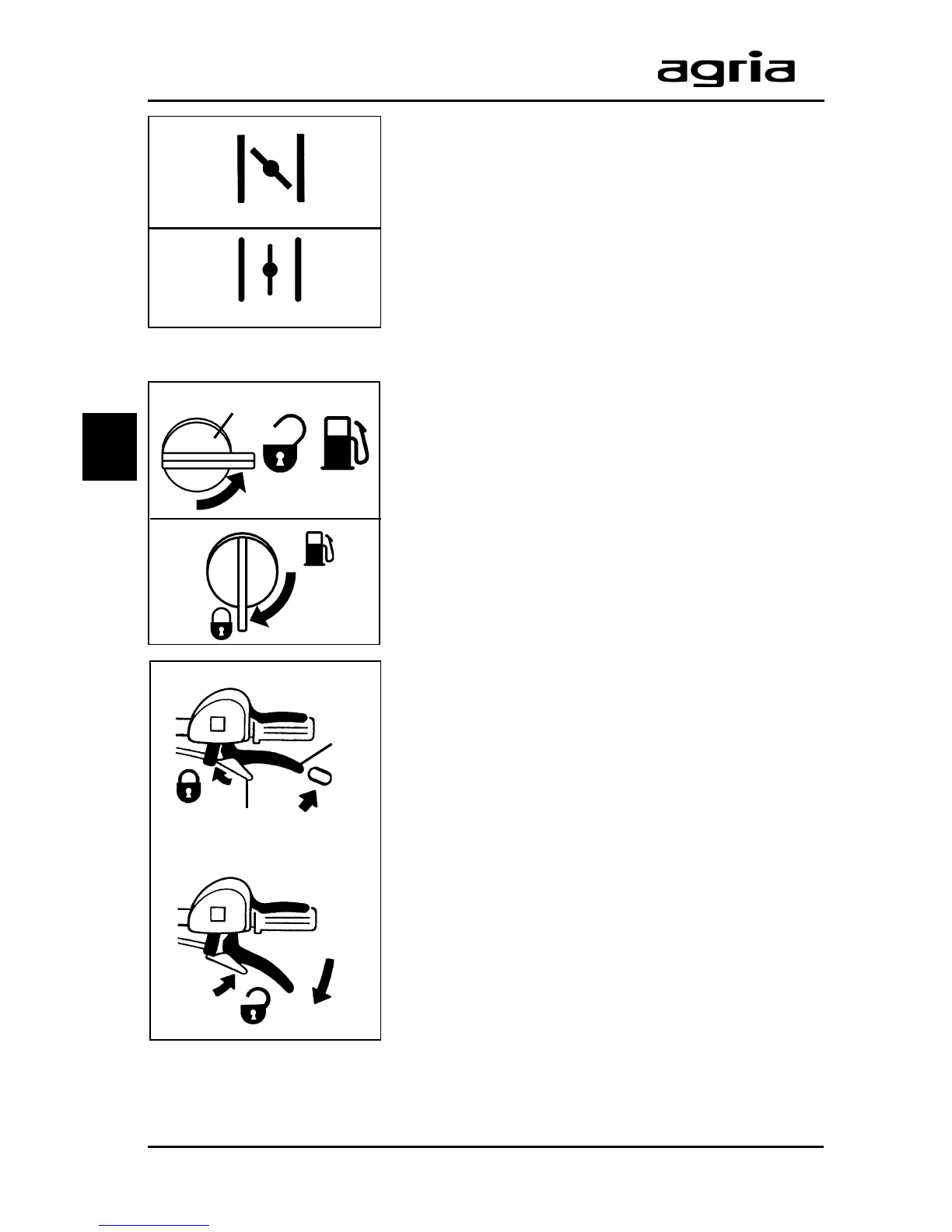

3. Devices and Operating Elements
Choke
The choke lever (B/5, D/5) is on the carburetor.
Close the choke for cold starts.
Open the choke for warm starts (operation).
Fuel tap
Only version Power Built engine:
The fuel tap (B/13 ) is on the carburetor.
Fuel tap - OPEN
Fuel tap - CLOSED
Clutch
The machine is equipped with a V-belt clutch with
integrated reverse shift.
Operation is via the hand clutch lever (E/4 or G/4).
The machine is decoupled when the hand clutch
lever is pulled until the pawl locks into place. Now,
the engine stops driving the machine.
The decoupled hand clutch lever can be locked with
the pawl (E/5 or G/5).
To avoid clutch slipping away during operation, a
clutch play is factory-set at the hand lever (refer to
“Maintenance”).
After the first operating hour, the clutch play has to
be checked and, if necessary, re-adjusted (refer to
“Maintenance”).
