34 agria Multi-Purpose Machine 400E/400K
Attachments
W
Only couple and decouple at-
tachments when the engine is
stopped. Secure attachments against
rolling off. Watch out for crushing
spots when coupling the attachment.
Front attachments
Most front attachments are attached to
the basic machine by two tensioning
devices. Before you couple and
decouple the attachment park the ma-
chine on level ground.

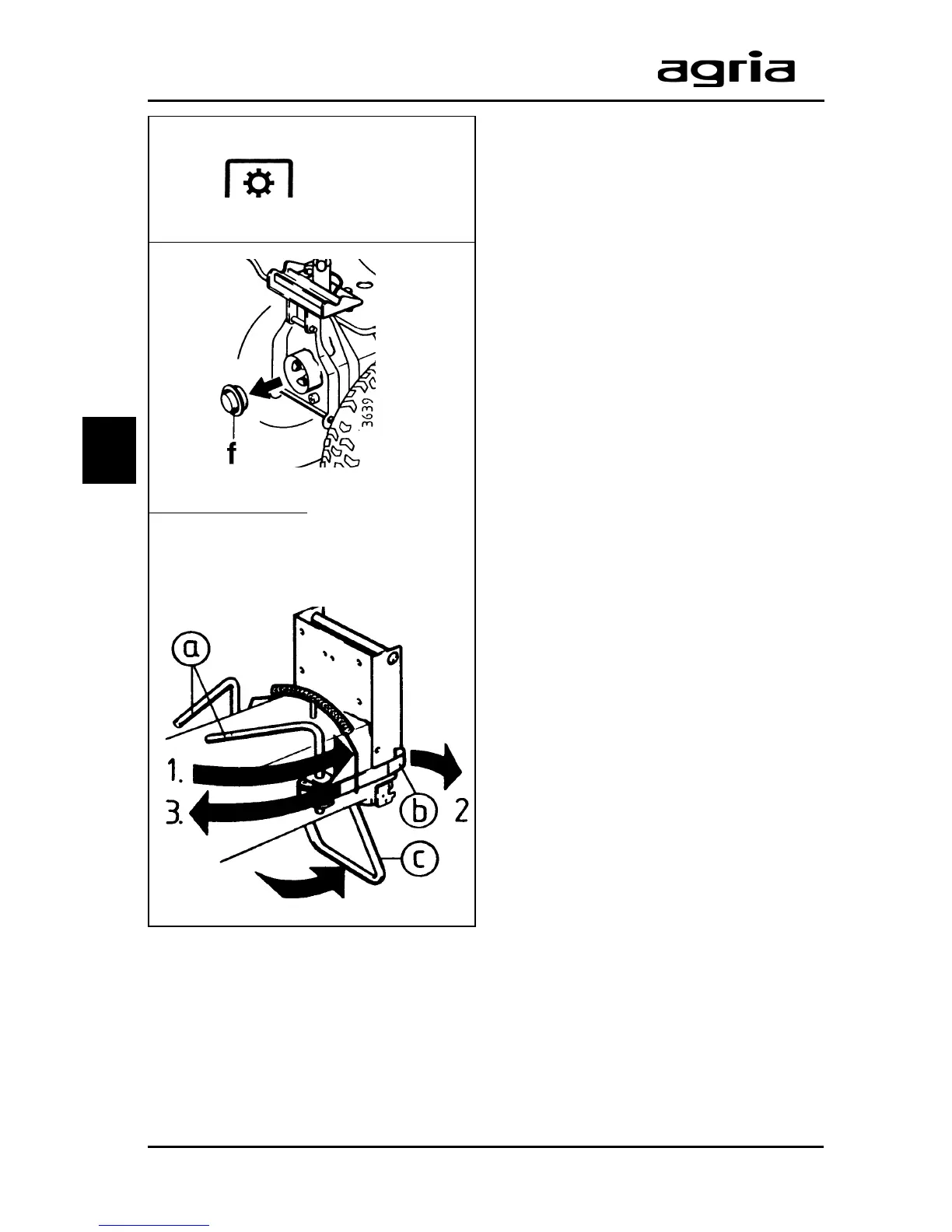

Coupling
l Move pto lever to “0”.
l Remove cap (f) from the pto.
l Rest the attachment on the stand (c),
if equipped.
l Bring tensioning bands into starting
position:
1. Move both tensioning levers (a) to
the rear,
2. pull both tensioning bands (b)
towards the side while you
3. move both tensioning levers back
to the front.
3. Devices and Operating Elements
3
è 0
3
a Tensioning lever
b Tensioning band
c Stand
d Linkage
e Linkage pin
f Cap
