Safety circuit
Check safety circuit function each time you take up
operation and each time you maintain the machine.
l
With clutch engaged and upon release of safety
lever (E/3 bzw. G/3) the engine must automatically
come to a stop.
l
Check electric lines and connections and ex-
change, if necessary.
è - Serviceç

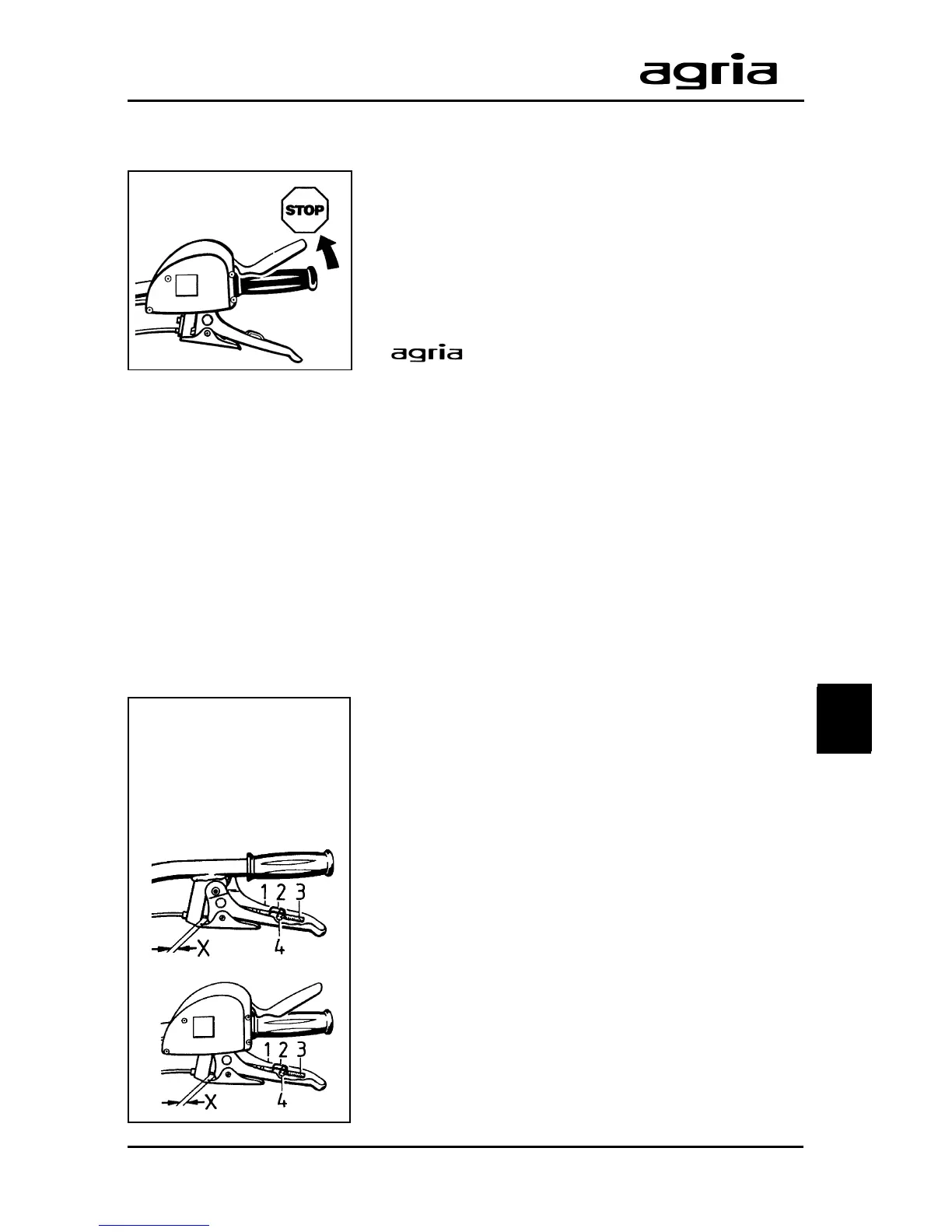

Adjustments on
Hand Lever for Clutch and Wheel
drive
Check play or adjustments each time before you
operate the machine. If necessary, re-adjust (espe-
cially after commissioning the machine during break-
in period, and after exchanging clutch V-belt).
l
Remove the retaining spring (2) with a screw-driver
or similar tool.
l
Remove cable end (3) and set pin (4) out of bracket
in hand lever.
l
Adjust the set pin (4) to a play of X.(Screw set pin
in to reduce play, screw out to increase play).
l
Place cable end and set pin back into bracket and
check.
l
Fit retaining spring (2).
Hand lever for wheel drive:
X = 3 - 5 mm
Hand lever for clutch:
X = 2,5 - 4 mm
However, the basic setting is adjusted in neutral
position.(see “Adjusting V-Belt Tension”).
5. Maintenance
5
1 Hand lever for
clutch
2 Retaining spring
3 Threaded end
of cable
4 Adjusting pin
