3. Devices and Operating Elements
Drive-Wheels
W
Only mount and dismount
drive-wheels with engine
turned off.
The drive-wheels are equipped with a
detent spring (1) and can be mounted
and adjusted without tools.
The detent spring engages into a ring
groove on the wheel-shaft to hold the
drive-wheel.
On both sides of the wheel-shaft there
are 2 ring grooves respectively. With
detent spring engaging into outer ring
groove, the drive-wheel turns in neutral
on wheel-shaft. With detent spring en-
gaging into inner ring groove, the drive-
wheel engages with a toothed wheel on
the wheel-shaft to be driven by the
same.
Mounting drive-wheels
I
For full tractive power, mount
field tyres with the tread profile
pointing in travel direction (seen from
above).
l
Lift detent spring (1) slightly and place
into assembly position (fig. J) (front ring
groove on hub).
l
Mount drive-wheels onto wheel-shaft,
with the side for the detent spring point-
ing outwards.
l
Let detent spring engage in a ring
groove again (fig. K and L).
l
Brush Bio-lubricating grease onto
both ends of wheel-shaft (small diam-
eter of wheel-shaft).
For dismounting drive-wheels, proceed
accordingly but in reverse order.
1 Detent spring
3

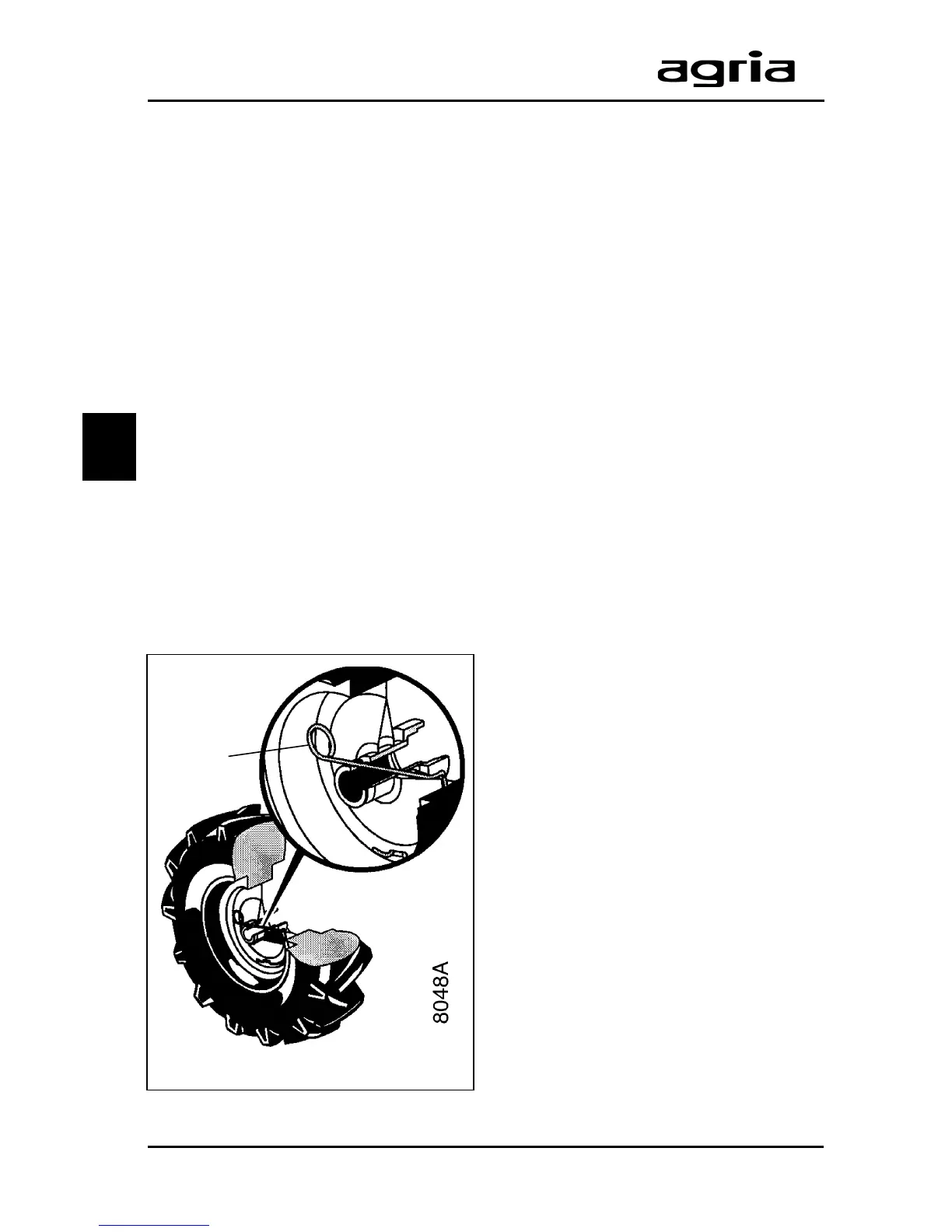

J
1
