agria Multi-Purpose Machine 400E/400K 25
3. Devices and Operating Elements
Wheel drive
The multi-purpose machine is equipped
with drive-wheel engagement and ad-
ditionally with a wheel drive. This can
be engaged/disengaged via a selector
sleeve and from the handlebar.

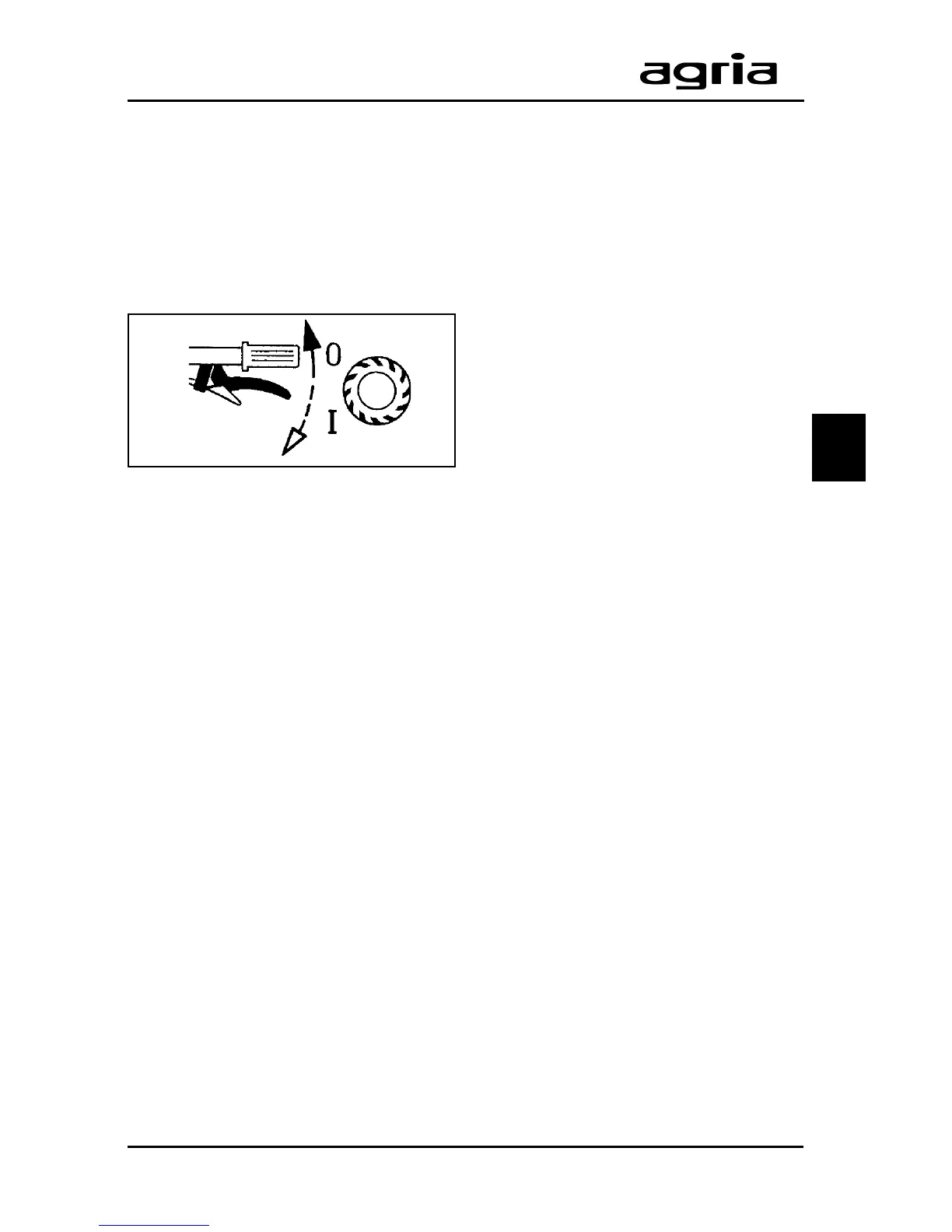

Wheel drive engaged:
Move wheel drive lever (E/11 or G/11)
down to unlock the pawl.
Wheel drive disengaged:
Move wheel drive lever (E/!! or G/11) up
to lock the pawl.
With the engine running, the wheel drive
is engaged the following way:
l
Pull the hand clutch lever (E/4 or G/4)
to middle position (neutral) and hold.
l
Unlock pawl (E/10 or G/10).
l
Move hand lever for wheel drive (E/
11 or G/11) down.
l
Slowly release the hand clutch lever
(E/4 or G/4) while pressing the throttle.
In case wheel drive cannot be engaged,
couple and decouple. Then engage
wheel drive.
