agria Multi-Purpose Machine 400E/400K 23
Travelling Drive/
Forward – Reverse
The multi-purpose machine is equipped with a clutch-integrated FR-gearshift, which
is operated with the hand clutch lever (E/4 or G/4).

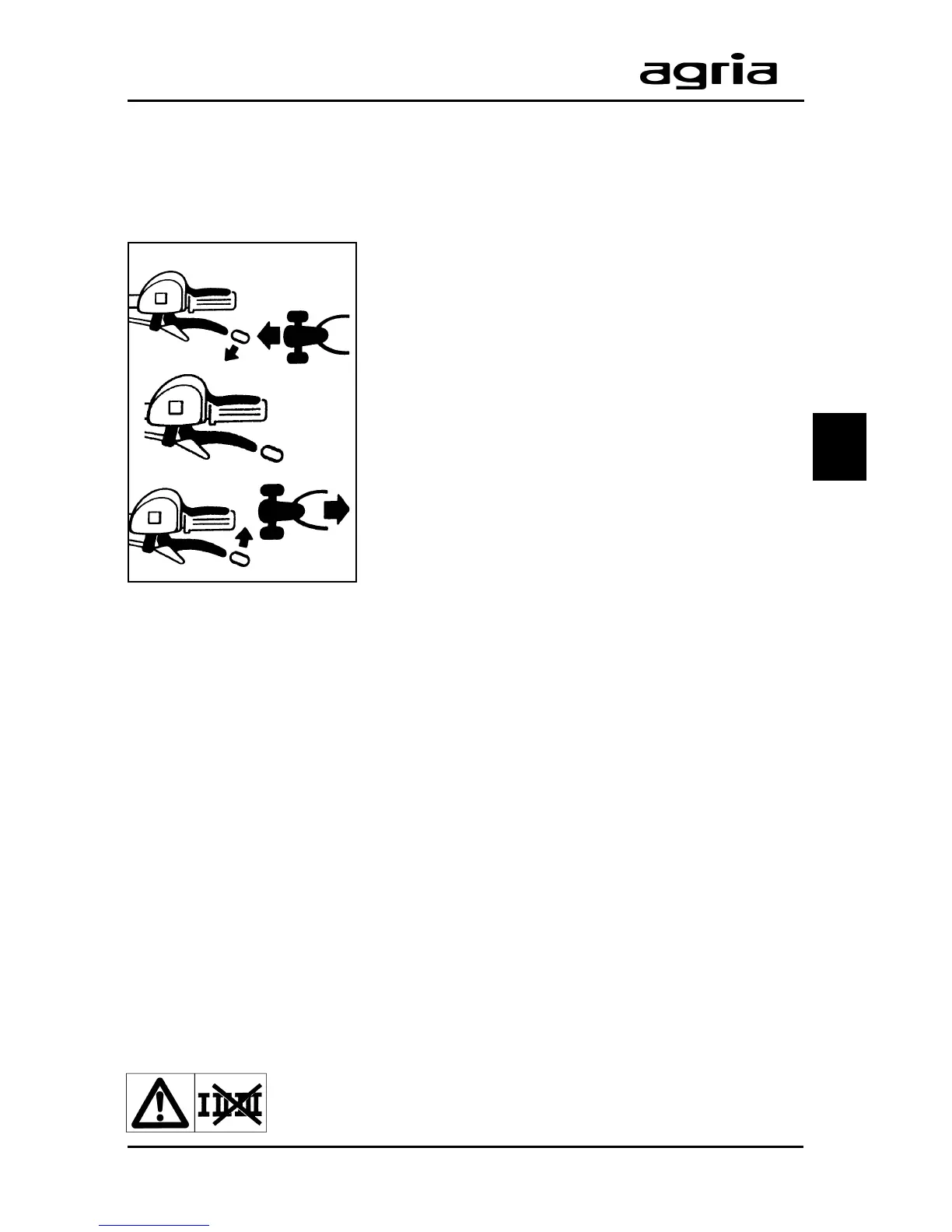

Travelling drive forward speed:
Move hand clutch lever down (E/4 or G/4) – the pawl
is unlocked.
Travelling drive idling speed:
Hand clutch lever (E/4 or G/4) is pulled approx. half
way – the pawl is locked.
Travelling drive reverse speed:
Pull hand clutch lever (E/4 or G/4) all the way up.
Pawl (E/5 or G/5) is for locking the hand clutch lever
in idling position (“0”).
On slopes, always turn machine towards the
slope.
I
Note: Always park machine with hand clutch lever pulled (“0” –
pawl locked), otherwise clutch problem may arise due to deformation of
V-belt.
Speeds
To change speeds you move the V-belt to another idler pulley (F/12 or H/12)- see
fold-out page 62 or 66.
W
Before you move the V-belt, stop the engine and remove
the spark plug connector!
l
Remove nut (F/10 or H/10) to remove the belt guard (F/8 or H/8) and the belt
guide plate (F/7 or H/7).
l
Lock the hand clutch lever (E/4 or H/4) in neutral position. This ensures that the
idler pulley (F/1 or H/1) does not to press against theV-belt.
l
Move the V-belt (F/12 or H/12) to the desired pulley (only use your hands, do
not use pointed or sharp tools. Otherwise the V-belt will be damaged).
l
Replace V-belt guide plate (F/7 or H/7). Push the guard (F/5 or H/5) onto pins
(F/4 or H/4) and close.
l
Fit nut (F/10 or H/10) with spring washer (F/9 or H/9) and tighten.
Only drive pto-driven attachments at speed “I”.
3
3. Devices and Operating Elements
