3 AG-TRONIK-a S1 CONNECTION
If you are not skilled in such work, we recommend that the electronic regulation is installed by
an authorized service of Agromehanika. If you have decided to install it yourself, a brief installation
description is given further on.
• Working speed may be aquired by 3 different types of equipment: antenna (standard equipment),
Wheel speed sensor (WSS) or GPS device (both additional equipment).
• In subchapters 3.1, 3.2 in 3.3 all three options are introduced.
3.1. Antenna (NMEA) – standard equipment
• Connect power supply in to the corresponding input of the AG-TRONIK (Figure 4).
• Connect regulator cable in to the corresponding input of the AG-TRONIK (Figure 4).
• Connect antenna in to the corresponding input of the AG-TRONIK (Figure 4).

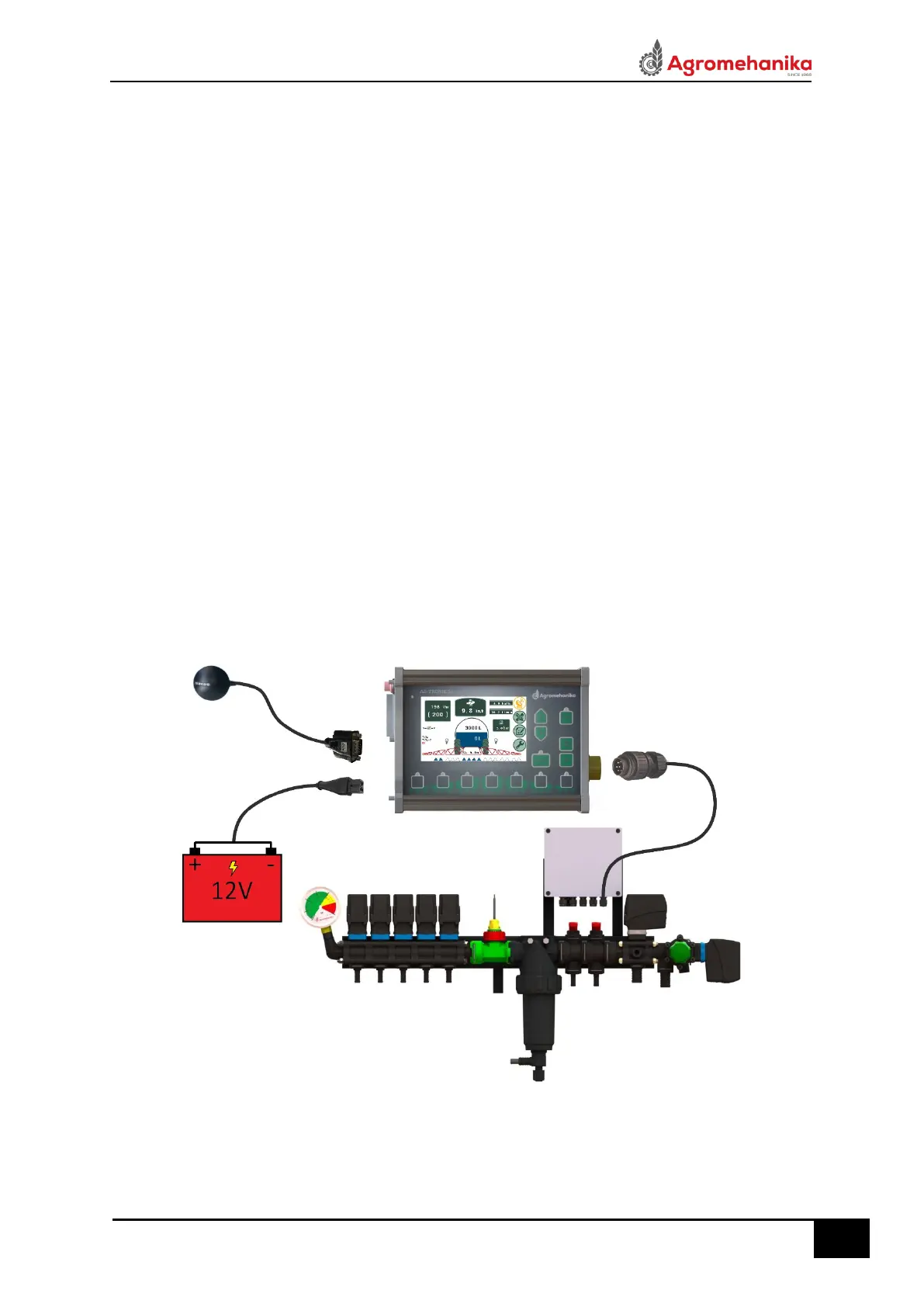

Figure 4
