Figure 63 Figure 64
• Speed sensor is connected to bottom part of connection cabinet (4-pole connector) for driven
sprinklers.
• For carried sprinklers, it is connected directly to AG-TRONIK.

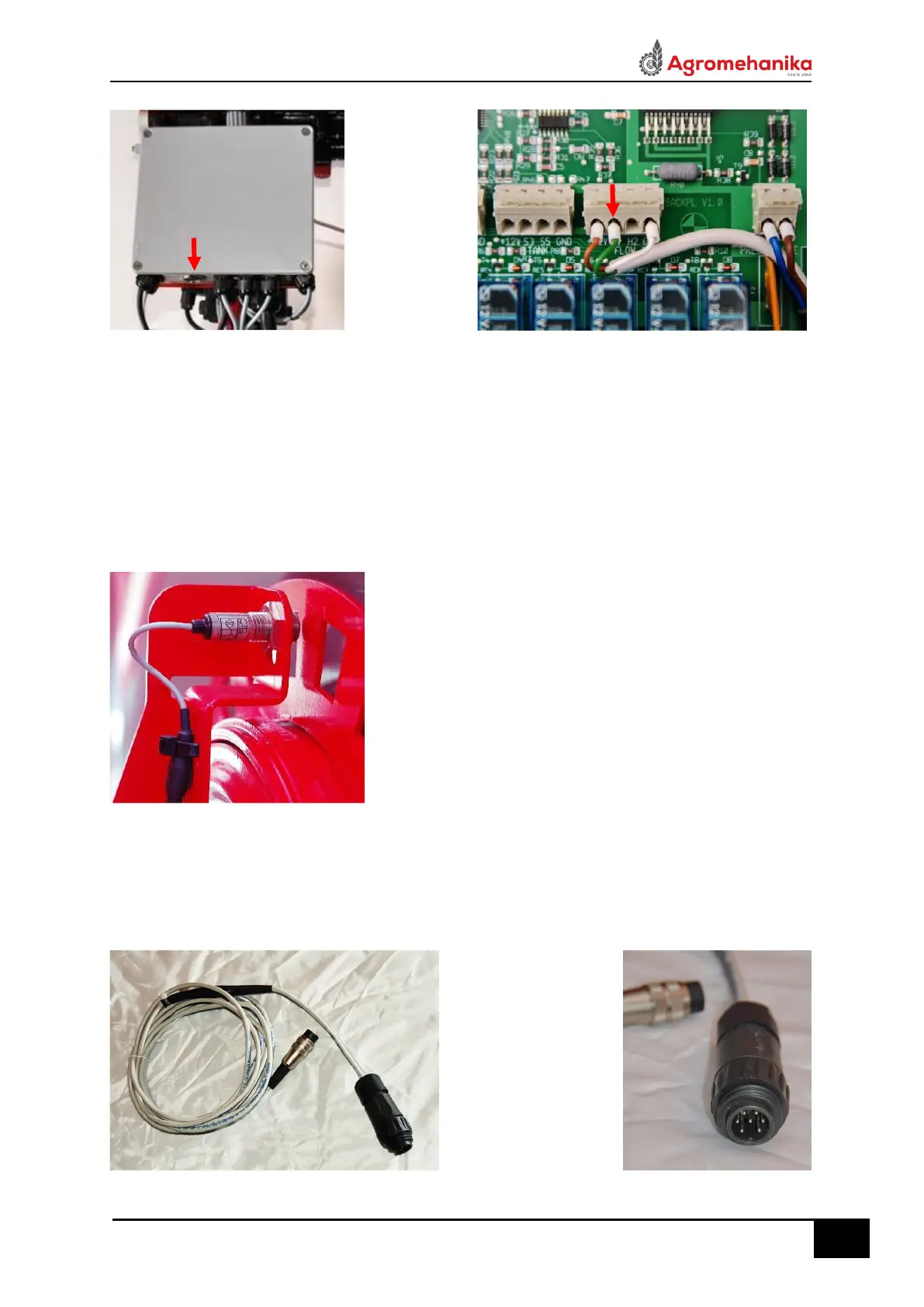

9.11. Speed Sensor (additional equipment)
• Speed measurement, if performed through induction
no-contact sensor.
• On driven sprinklers, the sensor is installed on rear
right wheel axle
• On carried sprinklers, it is installed on tractor
housing and measures passages of wheel nuts.
• Distance of sensor from mark is also important, which
should be between 3 and 5 mm
• You can also use the signal from the tractor, for which
you need a connecting cable (018.60.530)
• Enter the correct speed constant in AG-TRONIK (Chapter 5.3).
