AG-TRONIK

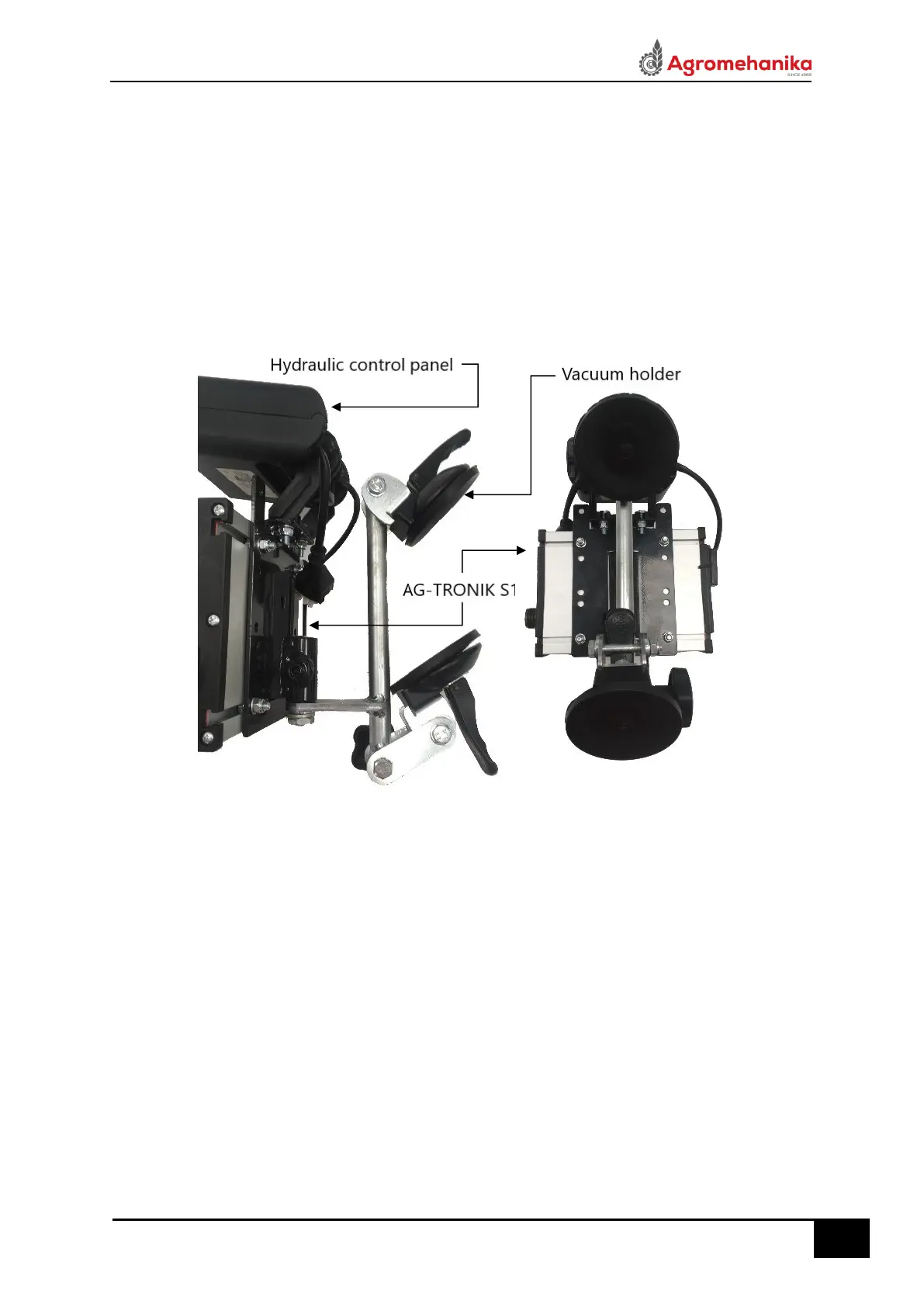

3.4. MOUNTING TO THE VACUUM HOLDER (additional equipment)

• AG-TRONIC and hydraulic control panel may be mounted on the side window of the

tractor by using a vacuum carrier (020.00.123).

• Screw the AG-TRONIK with the four screws in the groove on the back side (Figure 7).

• Using the two screws, screw the control panel into the sliding bracket (Figure 7).

• Clean the vacuum holder and tractor window before assembly.

Figure 7
