4.3. Information fields

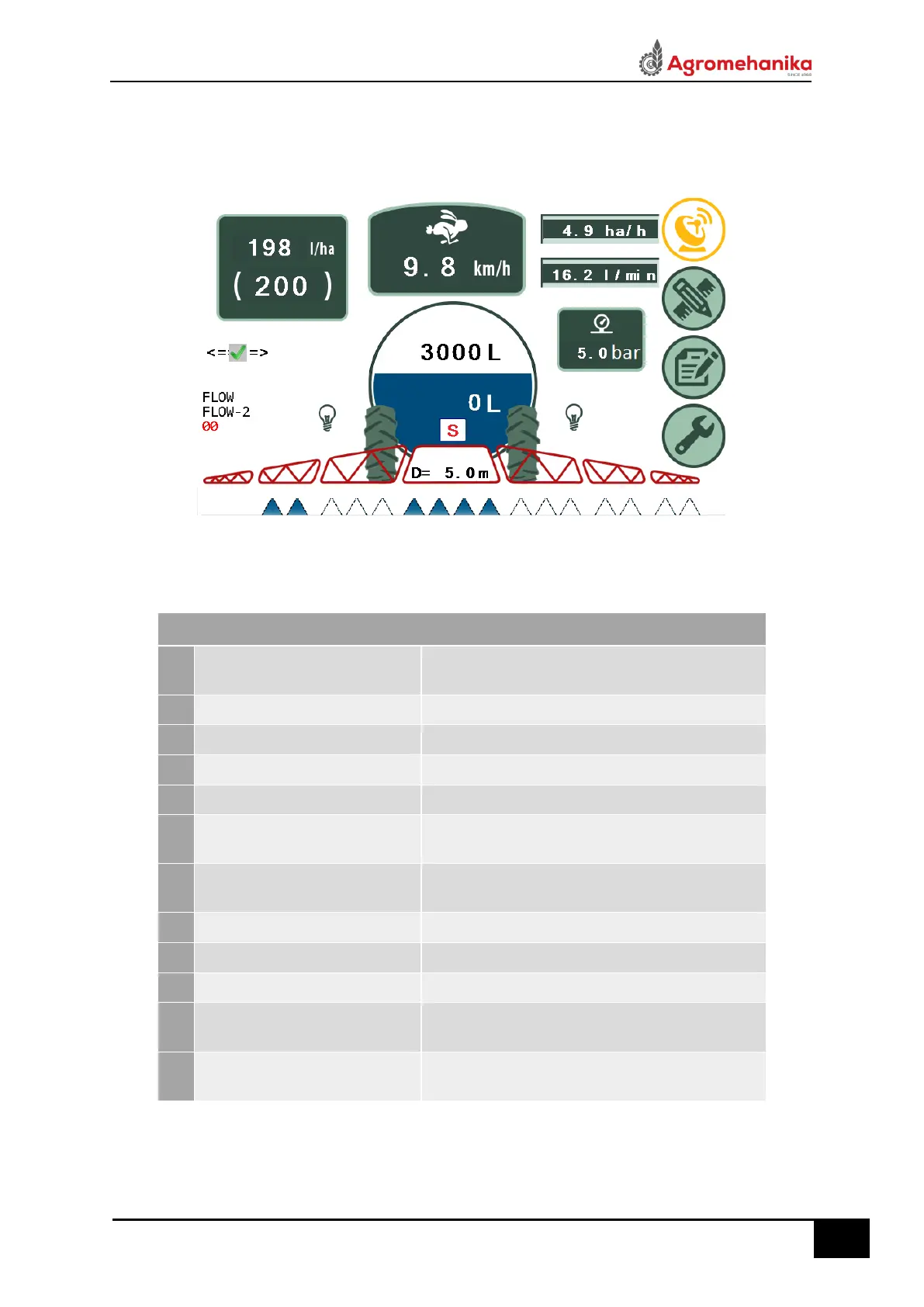

• Information fields are intended to inform the user about the parameters of spraying (Figure 9).
Figure 9
• The following table describes the individual information fields (Table 5).
Table 5
NAME
DESCRIPTION OF THE FUNCTION
1
CONECTION WITH THE
REGULATOR
☑/☒ - connection IS / IS NOT provided
2
TYPE OF REGULATION
Flow or pressure regulation. Flow-1 or flow-2
3
HECTARE DOSE - 1
Current or actual hectare consumption.
4
HECTARE DOSE - 2
Desired hectare consumption.
5
SPEED
Displays the current spray speed.
6
CAPACITY OF THE
RESERVOIR
Displays the initial amount of the chemical
preparation in the reservoir.
7
QUANTITY OF CHEMICAL
PREPARATION
Displays the current amount of the chemical
preparation in the reservoir.
8
SIMULATION
It informs that the simulation is in progress.
9
BOOM WIDTH
Displays the active boom width.
10
EFFICIENCY OF SPRAYING
Displays the efficiency of spraying.
11
FLOW ON NOZZLES
Displays the current flow of the chemical
preparation.
12
PRESSURE
Displays the current pressure of the control system
(in the case of a pressure sensor).
1
2
10
11
12
6
7
8
9
3
4
5
