8.2. Bypass regulation – components of the assembly

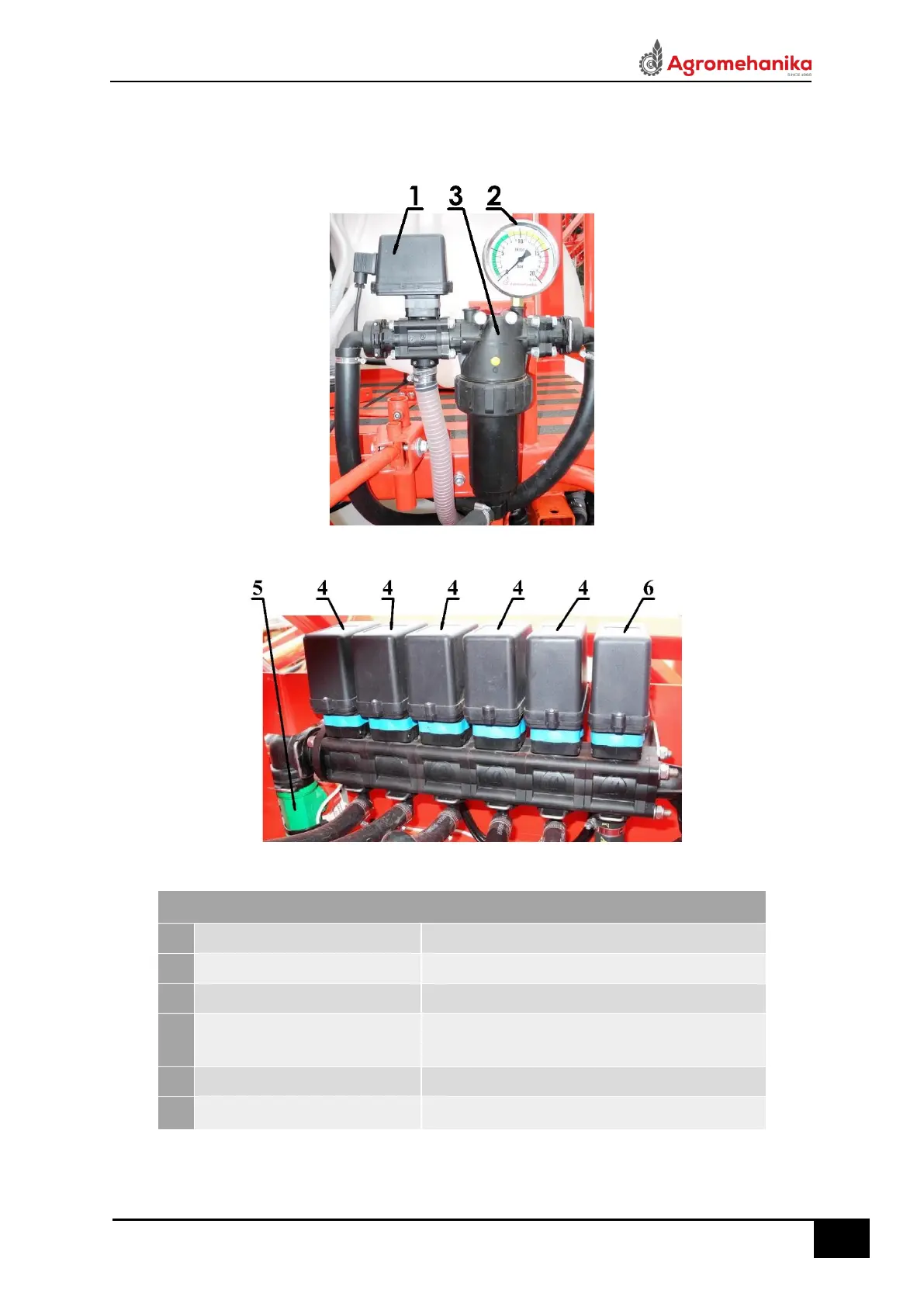

• Bypass pressure regulation version consists of two parts: (Figure 46, Figure 47 and Table 8):
Figure 46
Figure 47
IME
OPIS FUNKCIJE
1
REGULATION VALVE
Fine regulation of working pressure.
2
PRESSURE GAUGE
Indicates the operating pressure in the system.
3
SELF-CLEANING FILTER
Refining the liquid before entry into the nozzle.
4
DIVERSION-REGULATION
VALVES
Opening and closing individual sections of the
spraying boom.
5
FLOW METER SENSOR
Measures flow and sends data to the AG-TRONIK.
6
BYPASS VALVE
It has a function of main valve.
Table 8
