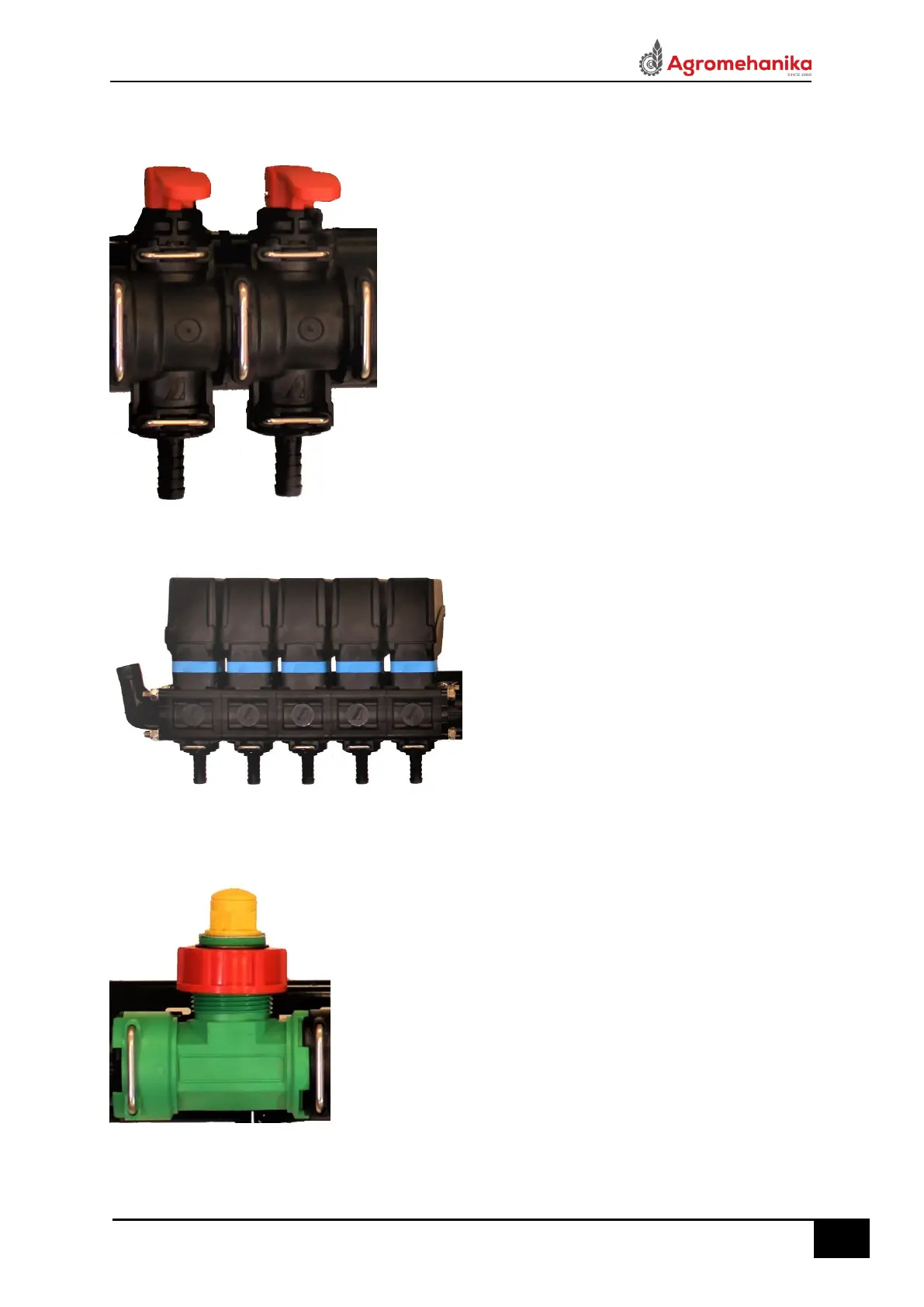

9.3. Distribution Valve (manual)
Distribution valve can be used for different purposes, namely:
• hydraulic mixing
• internal washing of tank
• filling container
• spraying stick
Valve is closed, when the lever is in position, displayed
in the figure. On the top of lever you can see sign 0.
Open the valve by lifting the red lever.
9.4. Distribution Valve EC
• Distribution valves EC, with the help of built-in
electromotors, open and close flow to individual
parts of spraying equipment.
• Opening and closing of valves is performed
exclusively with buttons on AG-TRONIK
(Chapter 4).
9.5. Flow Sensor
• The flow sensor transmits the pulse of the flowmeter
AG-TRONIK.
• The measuring range is 10-100l / min.
• The flowmeter cable is connected to the electrical cabinet.
• The meter is a card where the flow constant (KP) is entered.
• The measurement of the flow is via a turbine installed in the
flow meter housing.
