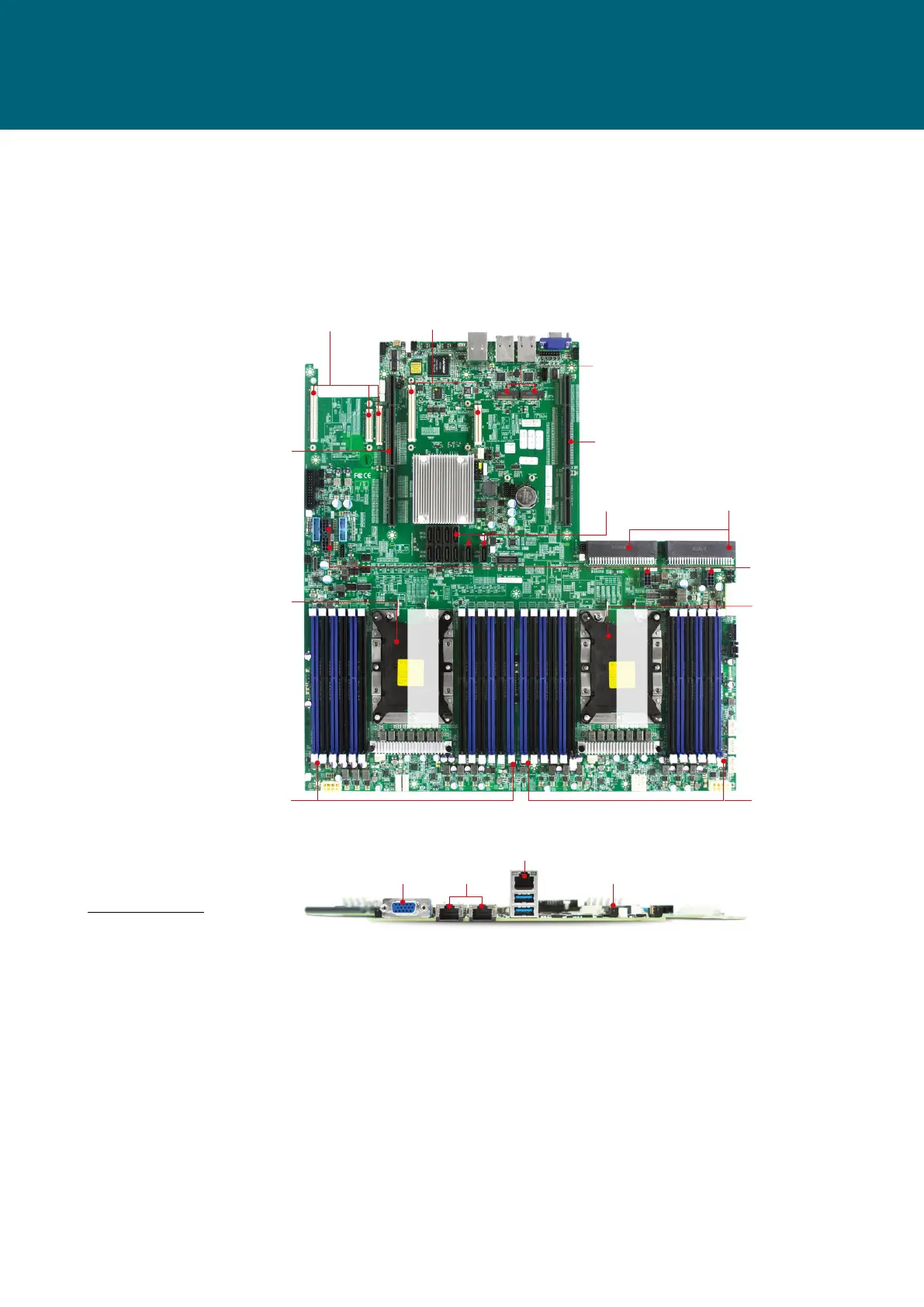

1�1 Componenets
Dimensions
mm : 424.18 x 431.8
inches : 16.7 x 17
VGA Port
Serial Console
by MicroUSB
2 x RJ45
2 x USB 3.0 + RJ45
Dedicated NIC for BMC
2 x NGFF(M.2) M-Key
(2280, 2242 by additional
bracket) support SATA/
PCIe x2
OCP Mezzanine V2.0 (A+B)
Support PCIe Gen3 x16
(Share with Max I/O® #2)
OCP Mezzanine V2.0 (A+B+C)
Support PCIe Gen3 x16
(Share with Max I/O® #1)
AIC Max I/O® #1; (CPU0)
PCIe Gen3 Supports 48 Lanes
(Share with OCP Mezzanine)
12 x DDR4 DIMM Slots
6 Channels (for CPU0)
12 x DDR4 DIMM Slots
6 Channels (for CPU1)
LGA3647 Socket P0 for Intel®
Xeon® Processor Skylake-SP
(CPU0)
LGA3647 Socket P0 for Intel®
Xeon® Processor Skylake-SP
(CPU1)
AIC Max I/O® #2; (CPU1)
PCIe Gen3 Supports 48 Lanes
(Share with OCP Mezzanine)
12V Single Power-in
Interface Supports CRPS
10 x SATA 3.0
Connectors
Intel® Storm Lake 100Gbps
Host Fabric Interface
Intel® Storm Lake 100Gbps
Host Fabric Interface
4 x 12V AUX Power Output
