AIC Lynx - 3�4 Connector and Jumper

18

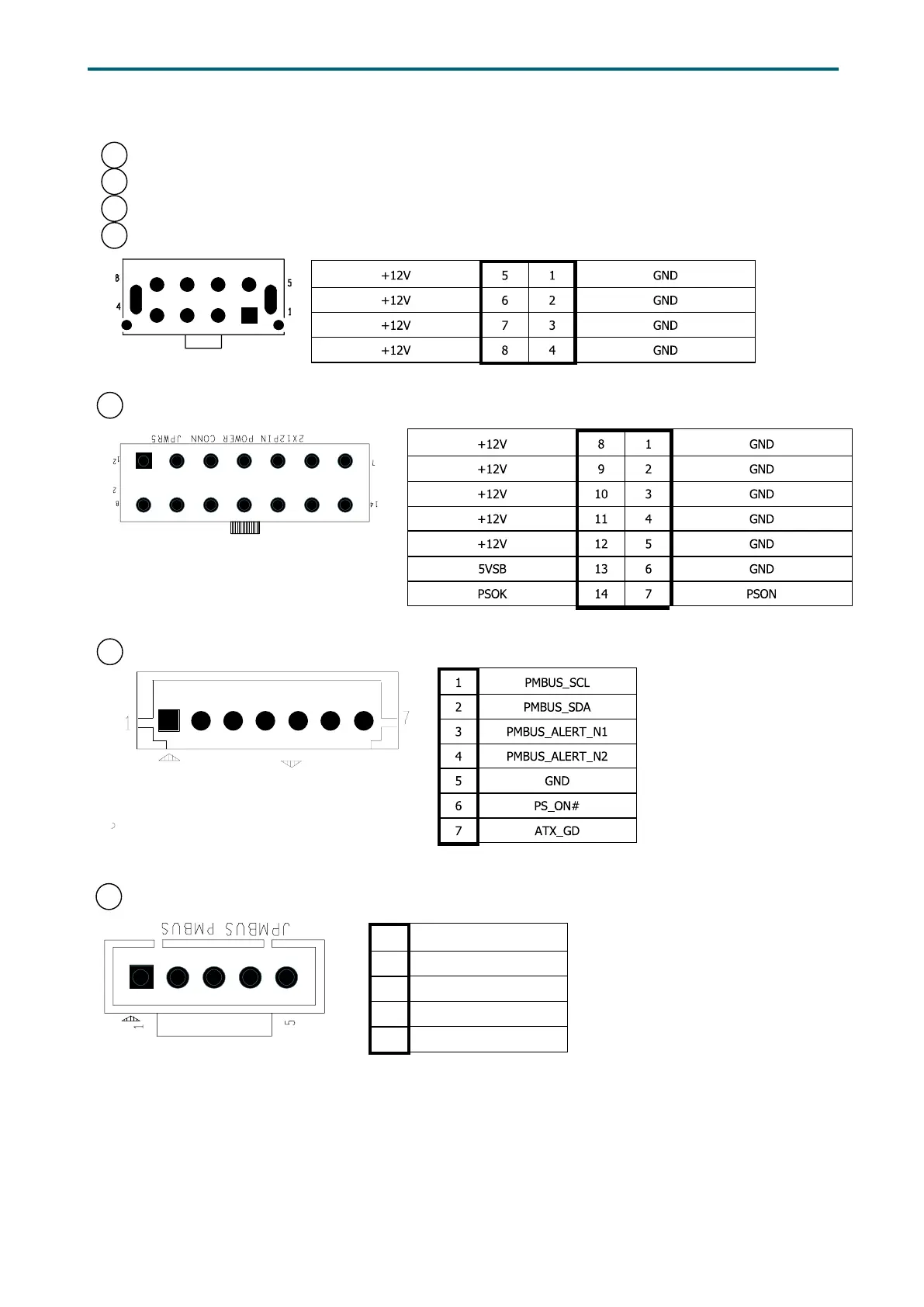

Chapter 2. Hardware SetupLynx User Manual
3a Backplane Power Header (JPWR1)
3b Backplane Power Header (JPWR2)
3c Backplane Power Header (JPWR3)
3d Backplane Power Header (JPWR4)
4 Power Supply Connector (JPWR5)
6 Power Supply Header (JPMBUS_PDB)
7 PMBus Header (JPMBUS)
3�4 Connector and Jumper
1 SMB_PMBUS_CLK
2 SMB_PMBUS_DATA
3 PMBUS_ALERT_N
4 GND
5 +3.3V
