19
Chapter 2. Hardware SetupLynx User Manual

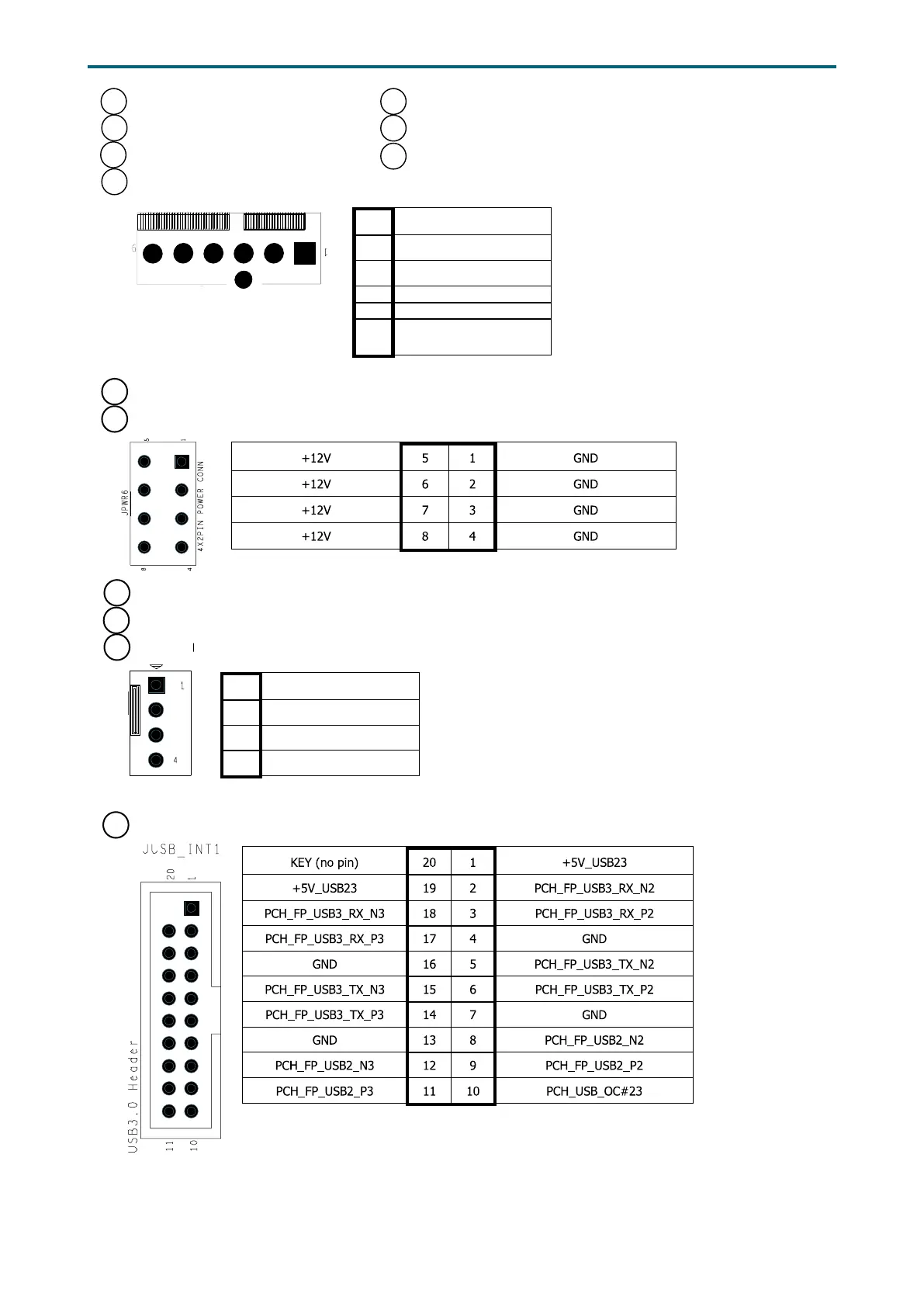

8a Fan Connector (J19) 8e Fan Connector (J26)
8b Fan Connector (J20) 8f Fan Connector (J27)
8c Fan Connector (J23) 8g Fan Connector (J28)
8d Fan Connector (J25)
9a Power Supply Connector: 12V (JPWR6)
9b Power Supply Connector: 12V (JPWR7)
10a
PCH Fan Connector (J4)
10b
CPU Fan Connector (J21)
10C
CPU Fan Connector (J22)
13 Front I/O USB Header (JUSB_INT1/JUSB_INT2)
1 GND
2 +12V
3 TACH
4 PWM
5 FAN_PRSNT_N
6 LED_FAN_FAULT
1 GND
2 +12V
3 TACH
4 PWM
