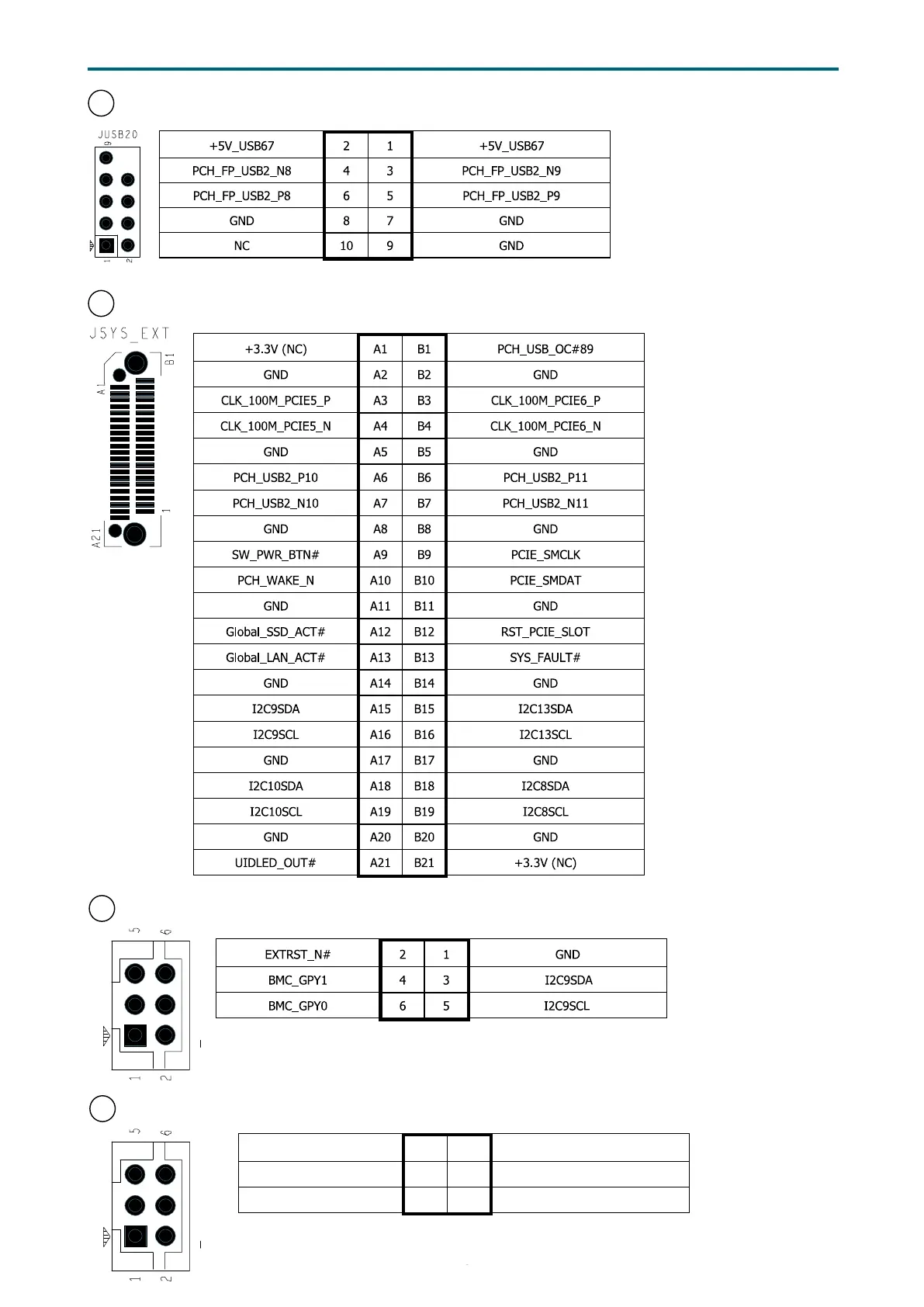

14 Front I/O USB 2.0 Header (JUSB20)
15 OCulink Connector (JSYS_EXT)
16a
BMC GPIO Header (JBMC_GPIO1)
16b
BMC GPIO Header (JBMC_GPIO2)
GPIOP3 2 1 GND
GPIOP2 4 3 GPIOI3
GPION7 6 5 +3.3V_DUAL
