Repeaters are used to increase the radio coverage of the Master or Slave Bases. Repeaters operate
wirelessly and only require connection to a local 240V AC mains supply via the plug-top PSU module
provided. Repeaters also include an integral rechargeable battery which will give approx. 4 hours operation
in the event of a mains supply failure.
Repeaters cannot repeat off each other, a Repeater must be within range of a Master or Slave Base. Up to 7
Repeaters with non-overlapping coverage can be deployed per Master/Slave Base; Repeaters can have
duplicate ID’s as long as they don’t overlap in each other’s coverage area. The Repeater ID must be HIGHER
than any WIRED Slave it is required to link to. As shown above, the Repeater ID must also be LOWER than
any WIRELSSS Slave using the Repeater to link back to the Master. The total number and positioning of
Repeaters will be determined by an RF survey prior to commencing the installation.

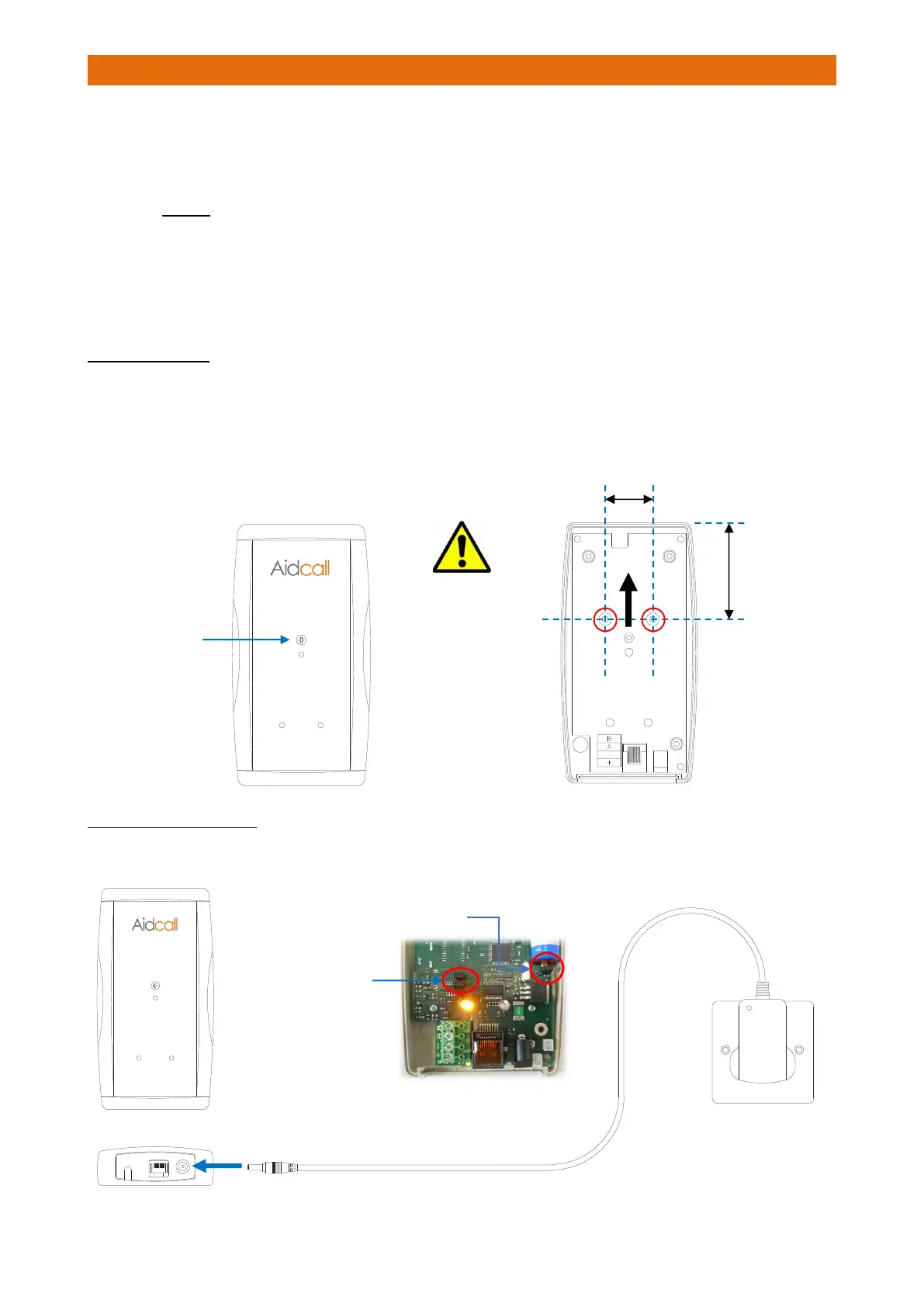

REPEATER FIXING
Undo the single screw fixing in the centre and remove the Repeater lid.
Choose a location to fix the Repeater within 1.8 metres cable run of an un-switched mains socket.
Fix the Repeater to the wall using the screws provided through the 2 fixing holes “A” shown below.
IMPORTANT: to ensure maximum radio coverage always fix the Repeater units vertically with the
connectors at the bottom as shown below;
REPEATER CONNECTION
Repeaters are simply plugged-into the mains supply using the plug-top 12V 500mA PSU module provided.
