There is a total of 8 time slot ID’s on the Paging system. The Master Base is always 01; the remaining 7 can
be a mix of Slave Bases or Repeaters. If more than 8 ID’s are required, then any duplicate ID’s must not be
in overlapping coverage.
Repeaters must be within range of a Master or Slave Base, Repeaters CANNOT repeat off each other.
FIG 1
FIG 3
FIG 2
The top right hand Repeater ID:7 could NOT be ID:1 as
ONLY the Master is ID:1, also it could not be ID:5 or
ID:2 or ID:4 as this would be in an overlapping
coverage area with the same ID’s.
Fig3 below shows 10 Radio Parts with duplicate ID’s on
Repeater ID’s 4 & 7 – this is acceptable because the
Repeaters are not in an overlapping range.
The left-hand Repeater ID:4 could NOT be ID:1 as ONLY
the Master is ID:1, also it could NOT be ID:3 as this
would be in an overlapping coverage area with the
Slave ID:3.

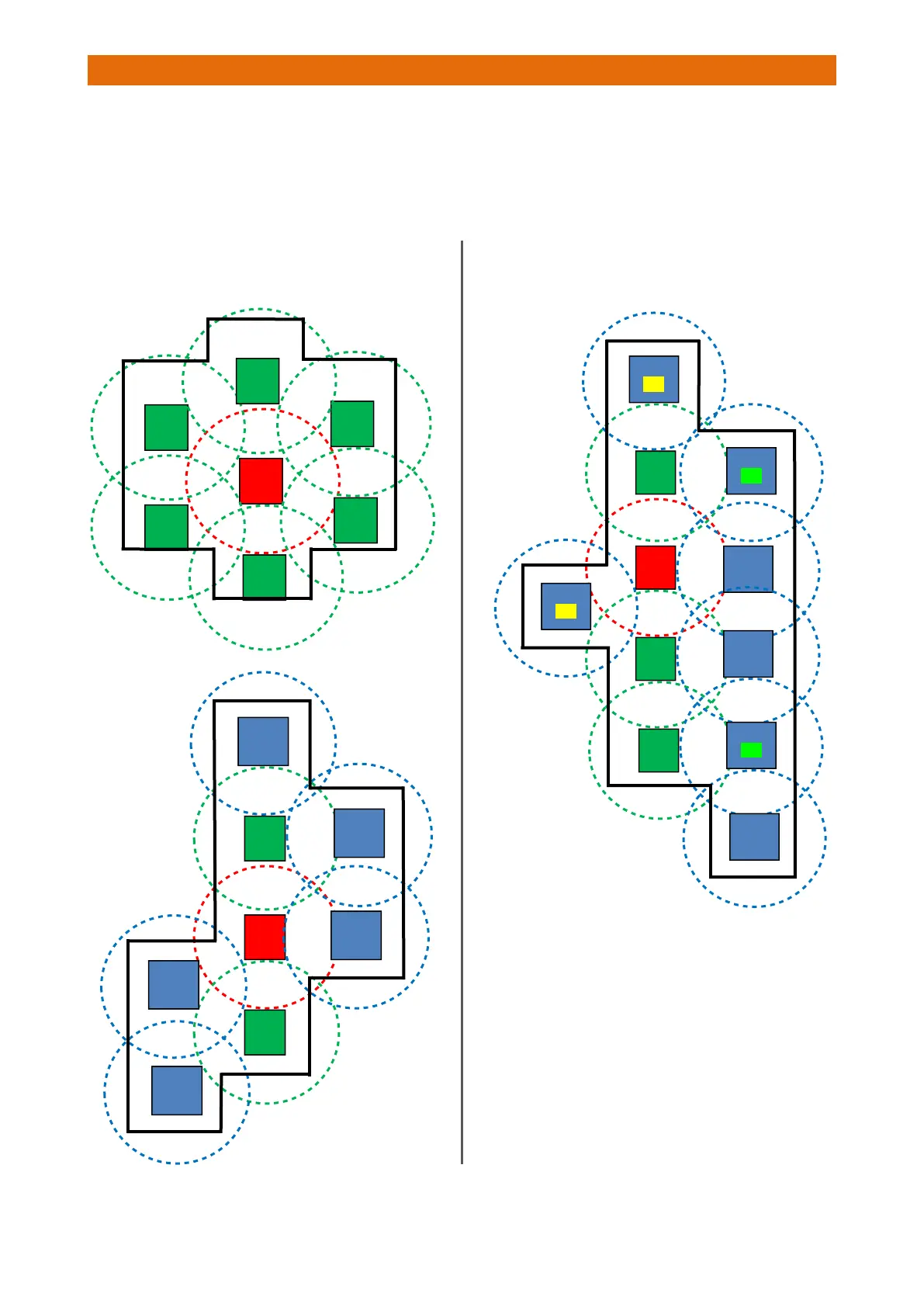

Fig1 & Fig2 below both show sequentially numbered
Radio Parts without the need to duplicate ID’s.
