Aiphone GT SYSTEM User Manual

- 7 -
PS24
A
I
P
H
O
NE
J
F
-D
VF
JK-DA JK-DV JK-DVF
PS24
Master monitor station
(with recording function)
GT-2C-L, GT-2C
Residential monitor station
GT-1C-L, GT-1C
Sub master monitor
station
GT-2H-L, GT-2H
Residential monitor station with
handset
GT-1M-L
Residential station
GT-1D
Residential station
GT-1A
Each residence (with recording function)
Video door station
Power supply-related

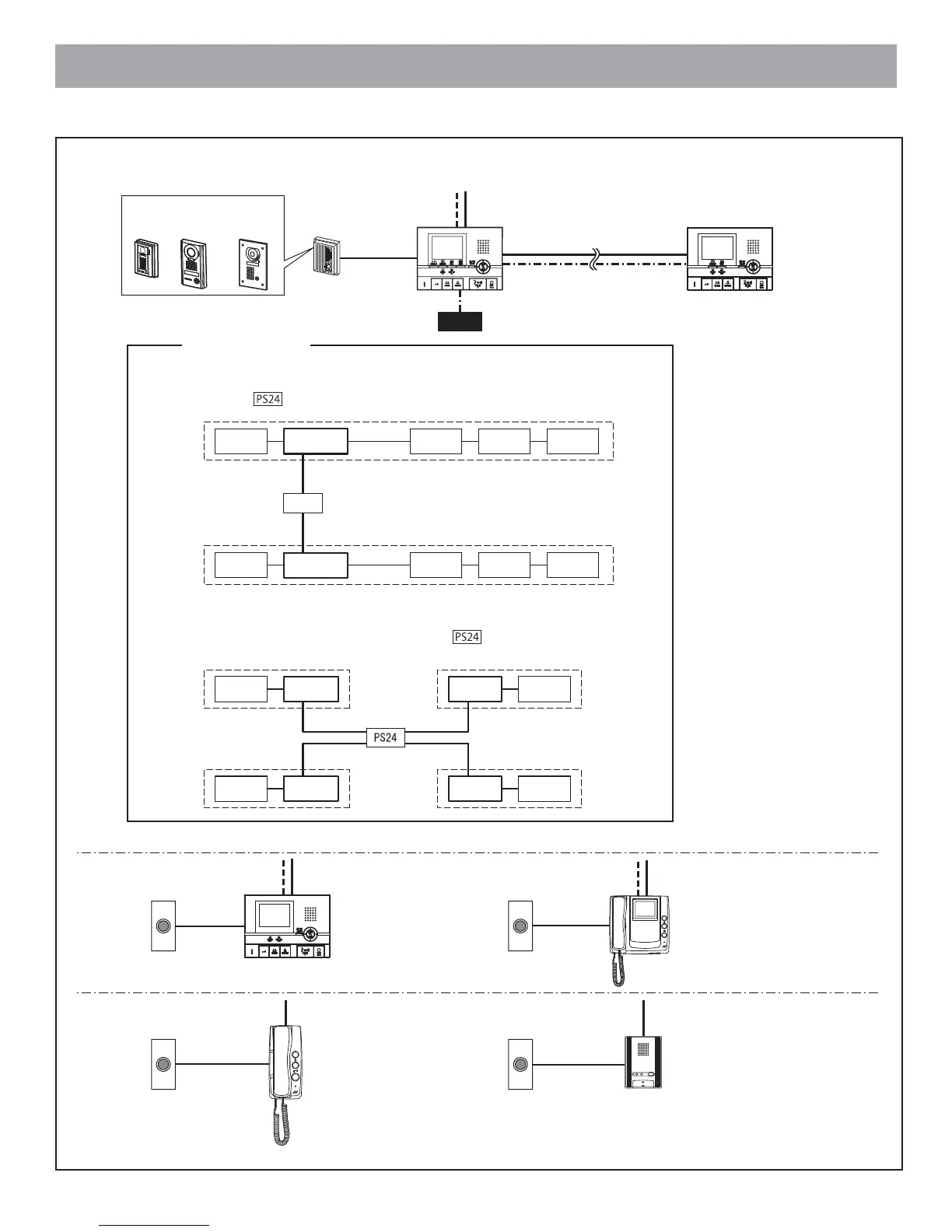

[When sub master monitor stations are connected]
[When sub master monitor stations are not connected]
Residence 1
Residence 1 Residence 3
Residence 2
Residence 2 Residence 4
Door
station
Door
station
Door
station
Master monitor
station
Master monitor
station
Master monitor
station
Sub master
monitor station
Sub master
monitor station
Sub master
monitor station
Master monitor
station
Master monitor
station
Master monitor
station
Sub master
monitor station
Sub master
monitor station
Sub master
monitor station
Door
station
Door
station
Door
station
If even just one sub master monitor station is connected, it is possible to supply power to up to 2
residences with 1
power supply.
However, wiring must be connected from near the terminals of the power supply for each residence.
It is possible to supply power to up to 4 residences with 1
power supply.
However, wiring must be connected from near the terminals of the power supply for each residence.
Door station
or doorbell
GT-D
Doorbell Doorbell
Doorbell Doorbell
Each residence (with monitor)
Each residence (with audio)

Aiphone GT SYSTEM Specifications

General

Wiring	2-wire
Door Release	Yes
Operating Voltage	24V DC
Wire Gauge	18 AWG
Type	Intercom System
Power Source	24V DC
Installation	Surface-mounted
Communication	Hands-free
Expandability	Expandable to multiple door stations and master stations
Mounting	Wall-mount
Operating Temperature	14°F to 140°F (-10°C to 60°C)
Humidity Range	10% to 90% (non-condensing)
Frequency Response	300 Hz to 3.4 kHz
Maximum Stations	500
Maximum Door Stations	32 door stations
