Aiphone GT SYSTEM User Manual

- 32 -
5
SETTINGS (COMMON AREA)
Perform the following settings at an entrance station or security guard station.
Depending on the setting item, some items are set by switching DIP switches and some are set using the program mode menu.
After any DIP switches are switched or any changes are made in the program mode, turn the power supply off and on again. In some
cases, the settings may not be changed.
• The program menu varies according to the unit.
Inst.Setting
= Setting that must be set during installation.
○ = These items can be set according to the installation equipment and application.

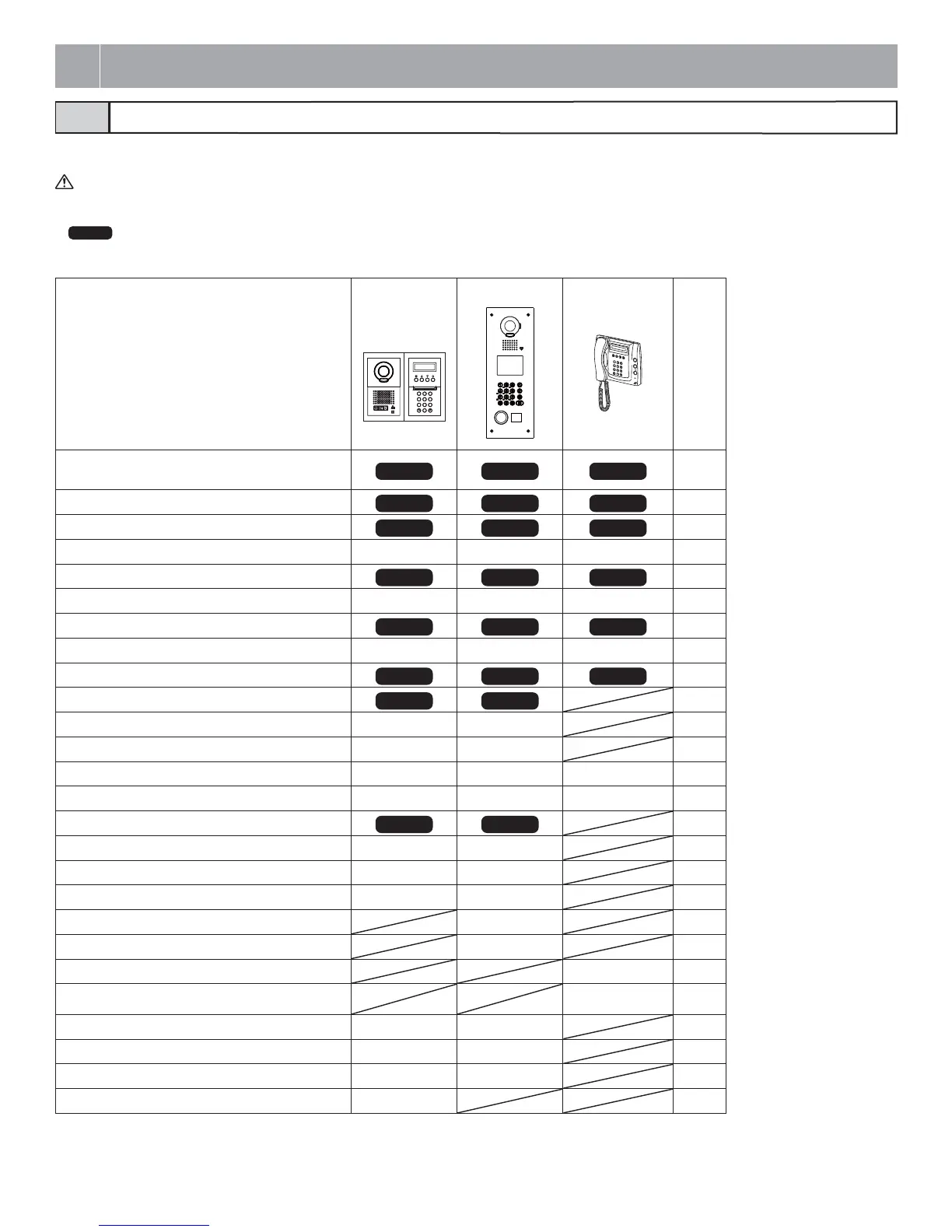

Setting list5-1
Setting item
GT-NS-V/GT-NS,
GT-DA-L/GT-DA,
GT-VA
2
B
A
C
3
E
D
F
5
K
J
L
8
U
T
V
4
H
G
I
6
N
M
O
1
0
9
Y
X
W
Z
7
R
Q
P
S
GT-DMV/GT-DM
GT-MK
Page no.
Entrance station and security guard station ID
setting
Inst.Setting Inst.Setting Inst.Setting
34
Changing the ID code
Inst.Setting Inst.Setting Inst.Setting
34
Writing resident information
Inst.Setting Inst.Setting Inst.Setting
35
Manual setting of residence IDs ○○ ○36
Setting up the system
Inst.Setting Inst.Setting Inst.Setting
37
Transferring link information ○○ ○40
Link check
Inst.Setting Inst.Setting Inst.Setting
41
Setting the input timeout timer ○○ ○42
Display language selection
Inst.Setting Inst.Setting Inst.Setting
43
Guidance language selection
Inst.Setting Inst.Setting
43
Setting messages and the standby screen ○○ 44
Room number display setting ○○ 45
Scroll speed setting ○○ ○45
Setting the sort order for searching ○○ ○46
Access code setting
Inst.Setting Inst.Setting
47
Entrance monitor setting ○○ 48
Call screen setting ○○ 48
Surveillance camera switching setting ○○ 49
Adjusting screen brightness ○ 49
LCD operation mode setting ○ 50
Security guard station transfer setting ○ 50
Setting prohibition on calls from security guard
stations
○ 50
Entrance zoom picture pre-set ○○ 51
Visibility settings (daytime only) ○○ 52
Entrance night illumination setting ○○ 53
Direct select type light button se
tting ○ 53

Aiphone GT SYSTEM Specifications

General

Wiring	2-wire
Door Release	Yes
Operating Voltage	24V DC
Wire Gauge	18 AWG
Type	Intercom System
Power Source	24V DC
Installation	Surface-mounted
Communication	Hands-free
Expandability	Expandable to multiple door stations and master stations
Mounting	Wall-mount
Operating Temperature	14°F to 140°F (-10°C to 60°C)
Humidity Range	10% to 90% (non-condensing)
Frequency Response	300 Hz to 3.4 kHz
Maximum Stations	500
Maximum Door Stations	32 door stations
