2.2.3 Power Supply
AirSpeed 2900 supports direct connection to -48VDC power source:
▪ Operational Voltage Range: -40.5V to -57V DC
2.2.4 Connections
The following diagrams display the connections on the top and bottom panels of the AirSpeed 2900.

The unit requires a secure ground connection and a grounding screw fitted with a flat
washer and lock washer is provided on the back and clearly marked with the universal
ground symbol.

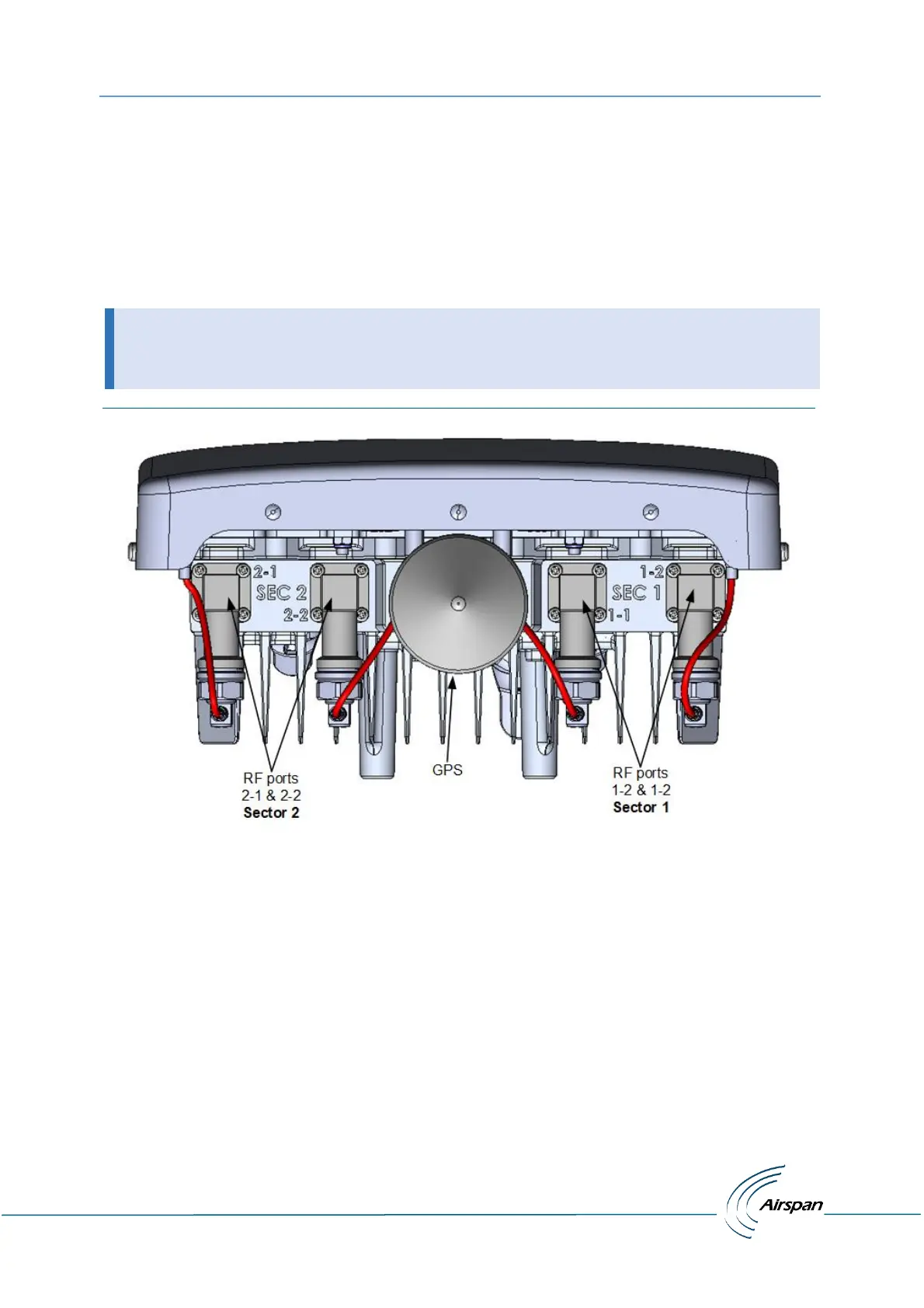

Figure 2: AirSpeed 2900 Top Ports (with integrated antenna)
