Airspan AirSpeed 2900 - Pole Mounting Assembly; Figure 5: Tilt Bracket Assembly

AirSpeed 2900 gNB 5G OD Installation Guide
© Copyright Airspan Networks Ltd., 2021 P/N DUG01085 Rev. A, Nov 2021
23

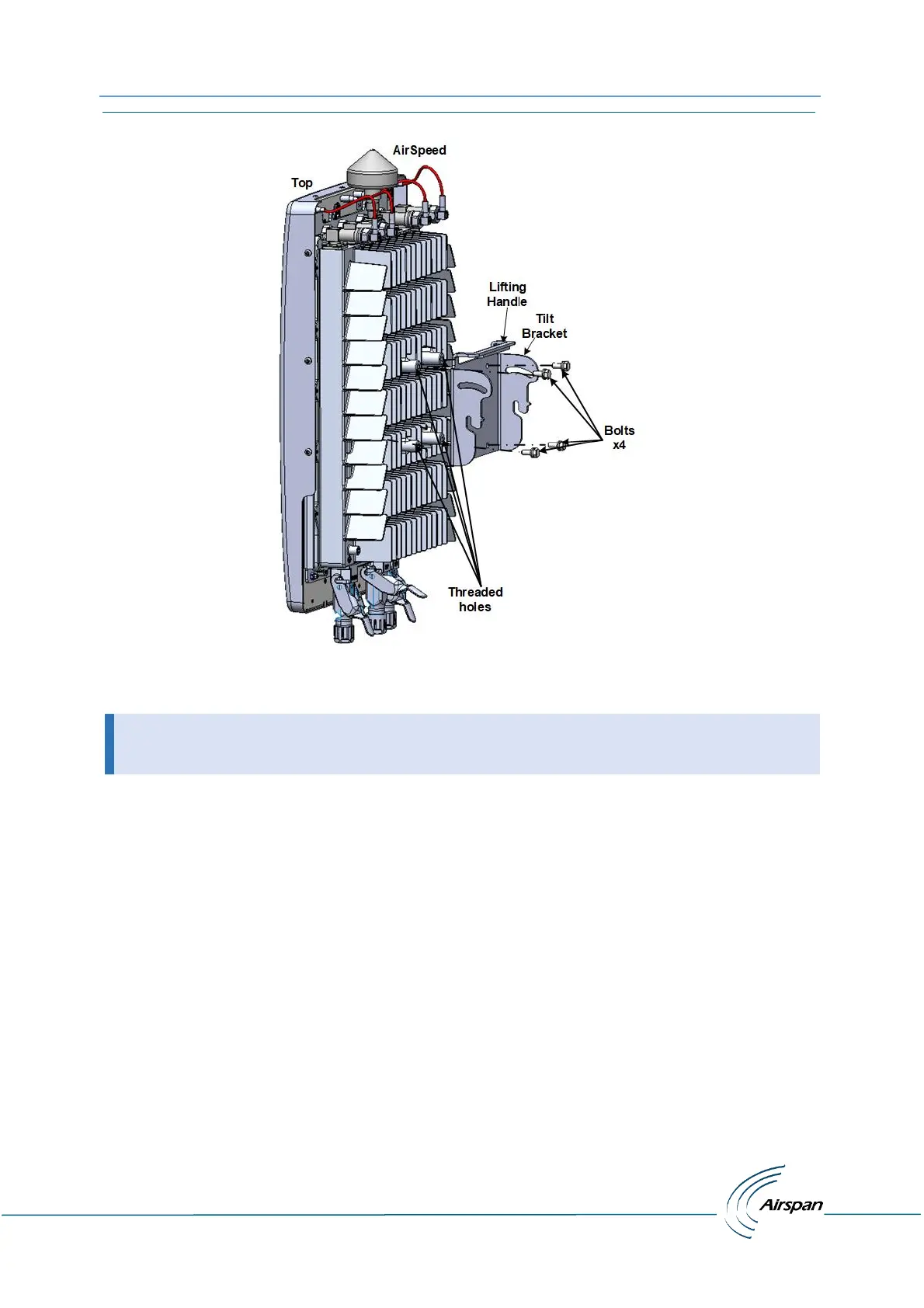

Figure 5: Tilt bracket Assembly
3.3 Pole Mounting Assembly

Mount the AirSpeed 2900 unit in an orientation such that the RF connectors are facing
up, and power/BH connectors are facing down.
The following describes the pole mounting procedure:
1. Remove the upper two (2) screws from the Pole/Wall bracket and set them aside to be used
later. Loosen the lower two (2) screws so they protrude from the Pole/Wall bracket.
2. Select the location on the pole to mount the AirSpeed 2900 mounting bracket.
3. Screw the four (4) 5/16-18 threaded rods into the threads on the back bracket.
4. Allow the threaded rods to protrude through the back bracket at least 1/2 inch (< 1 cm).
5. Position the mounting bracket onto the pole at the required height as shown below:
