5.1.6 Headrest of the Dental Chair

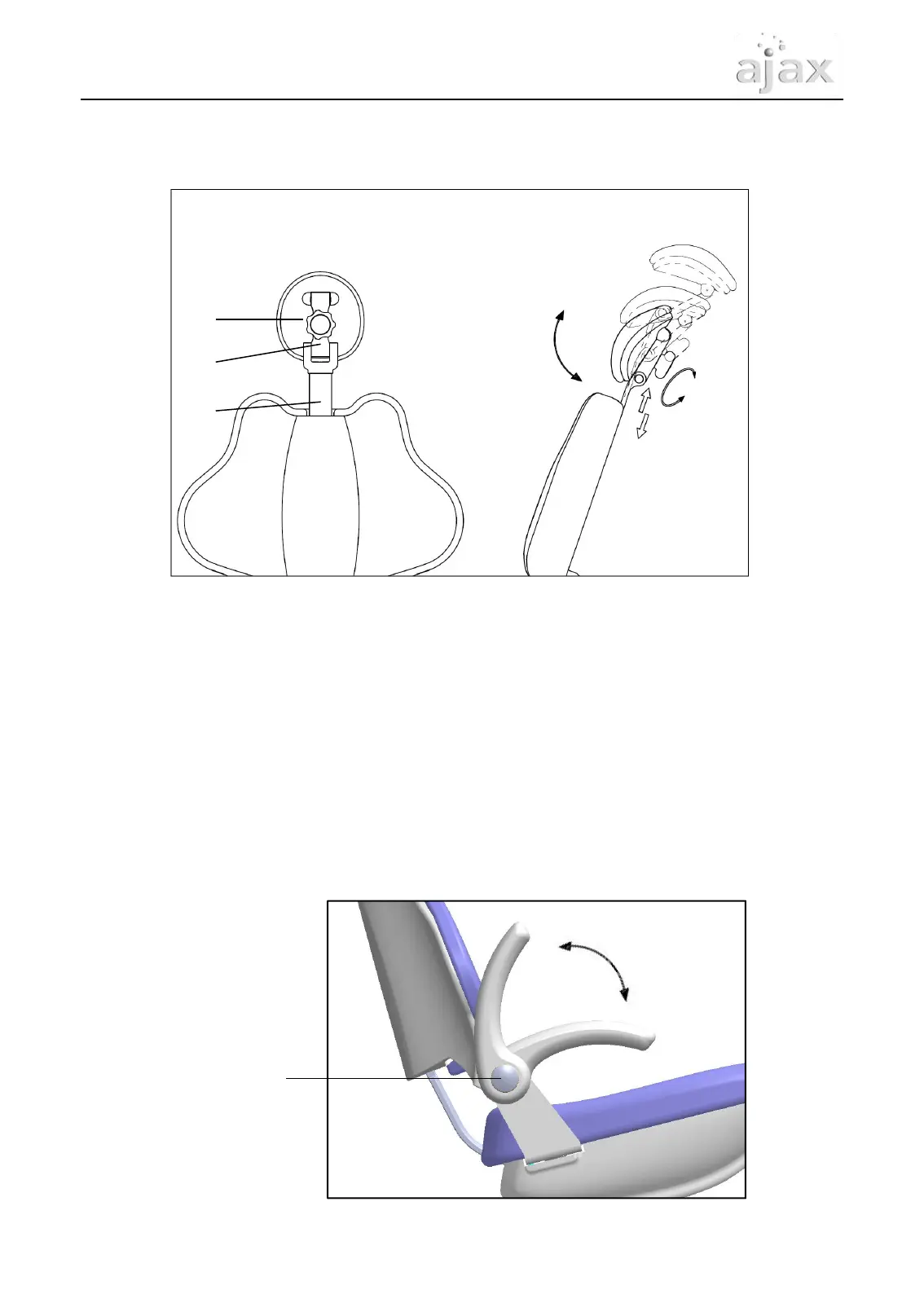

Figure 19 Adjustment of the Headrest
• To adjust the height and angle of the headrest , please turn
the lock screw counter-clockwise
• Pull and push the headrest to proper height, and adjust it
to the right angle.
• Tighten the lock screw by turning clockwise
• Headrest extension length ：0-150mm.
A headrest B locking knob C Sliding bar
A
B
C
5.1.7 Handle
Handle is easy to use and it easy for patients to use dental chair. Press the
handle button on the left to reposition to the forward or backward position.
Handle
button
