7.1.2 3-ways syringe Adjustment

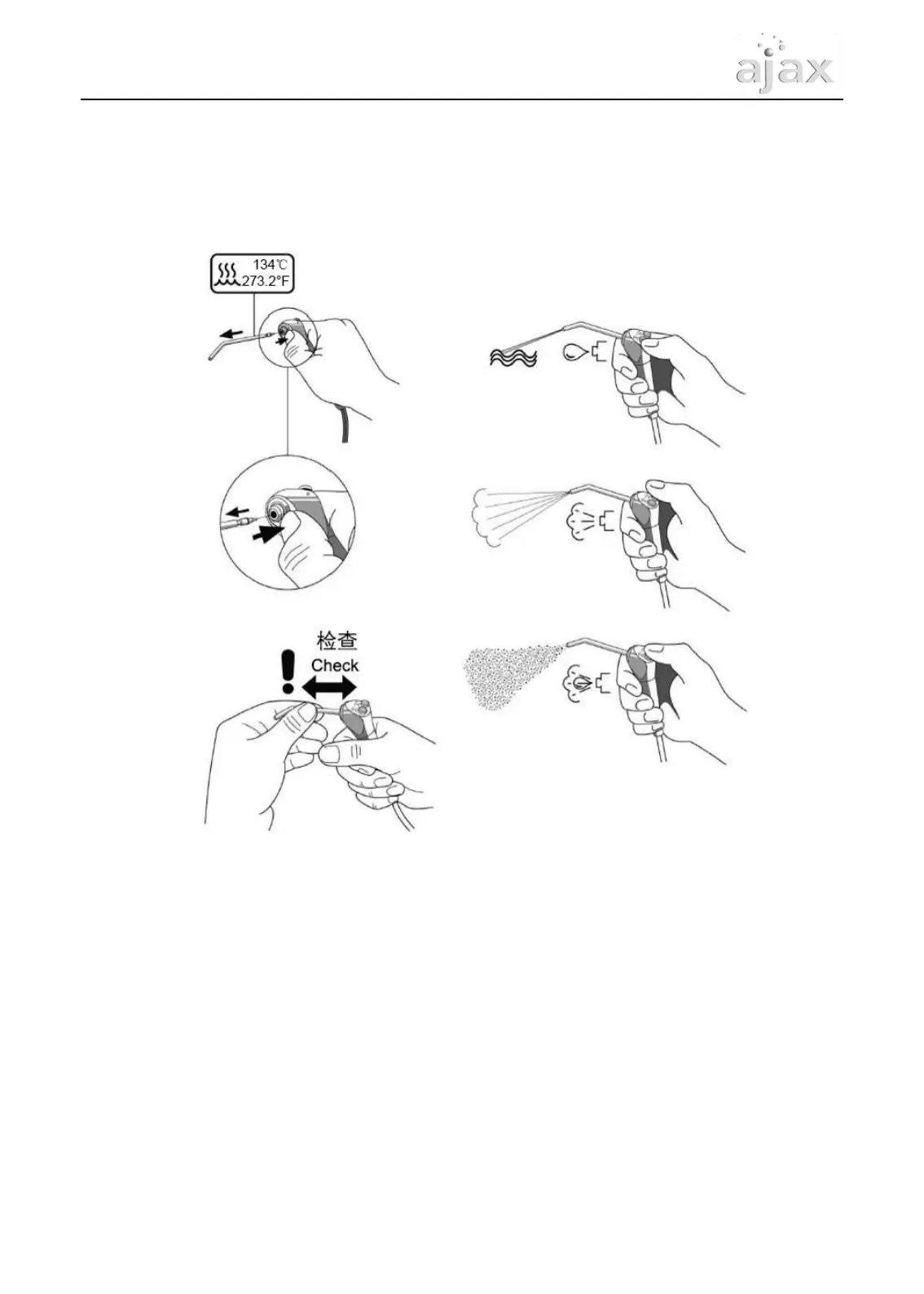

Figure 36 3-ways syringe adjustment
7.2 Cuspidor
7.2.1 Bowl rinsing and cup filling Flow Adjustments
Adjustments to the cuspidor bowl rinsing and cup filling flow are
made inside the Water Unit.
Complete the following steps to adjust the bowl rinsing and cup
filling flow :
1. Remove the side cover from the Water Unit by pulling the lower
edges of the cover.
2. With the cuspidor bowl rinsing or cup filling on, tighten or loosen
the pinch valve to adjust the flow.
Note: Rotate the bowl rinse spout to adjust the flow pattern and
achieve the best rinsing action.
P/N: 8013093 Rev：F
AJ16 User's Guide
