AJAX AJ16 User Manual

33
7 Adjustment
P/N: 8013093 Rev：F
7.1 Dentist Unit
AJ16 supply and regulate air and water to operate dental handpieces, 3-
ways syringes and ancillary devices. You can adjust the Dentist Unit water
coolant flow, air coolant flow , the handpiece drive air.
7.1.1 Handpiece Adjustment

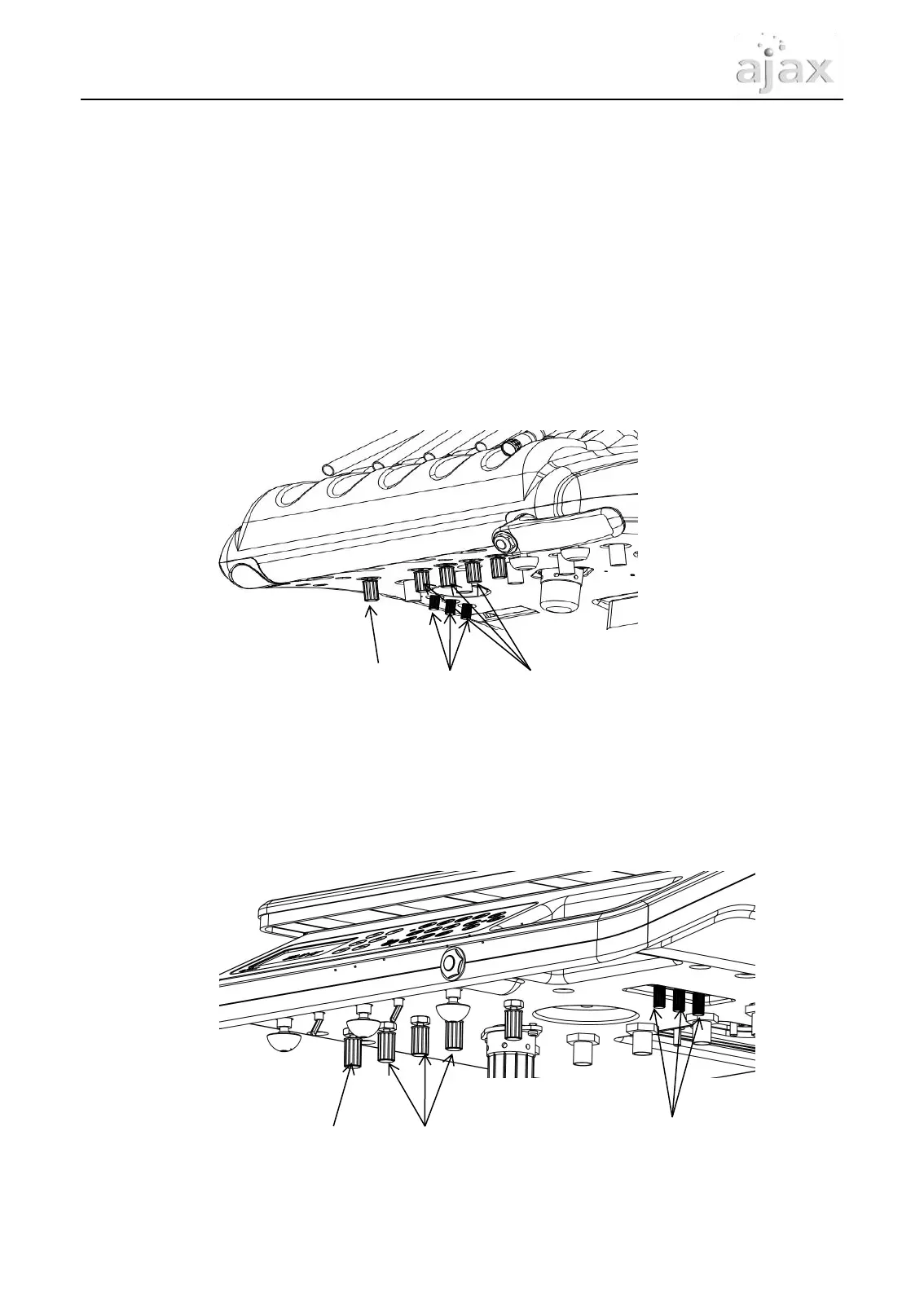

Figure 33 Dentist Unit Handpiece Adjustment
Figure 34 Handpiece Adjustment of New Whip Arm Dentis Unit
A：Air coolant flow adjustment key
B：Water coolant flow adjustment key
C：Drive air flow adjustment key
A：Air coolant flow adjustment key
B：Water coolant flow adjustment key
C：Drive air flow adjustment key
C
BA
B
A
C
