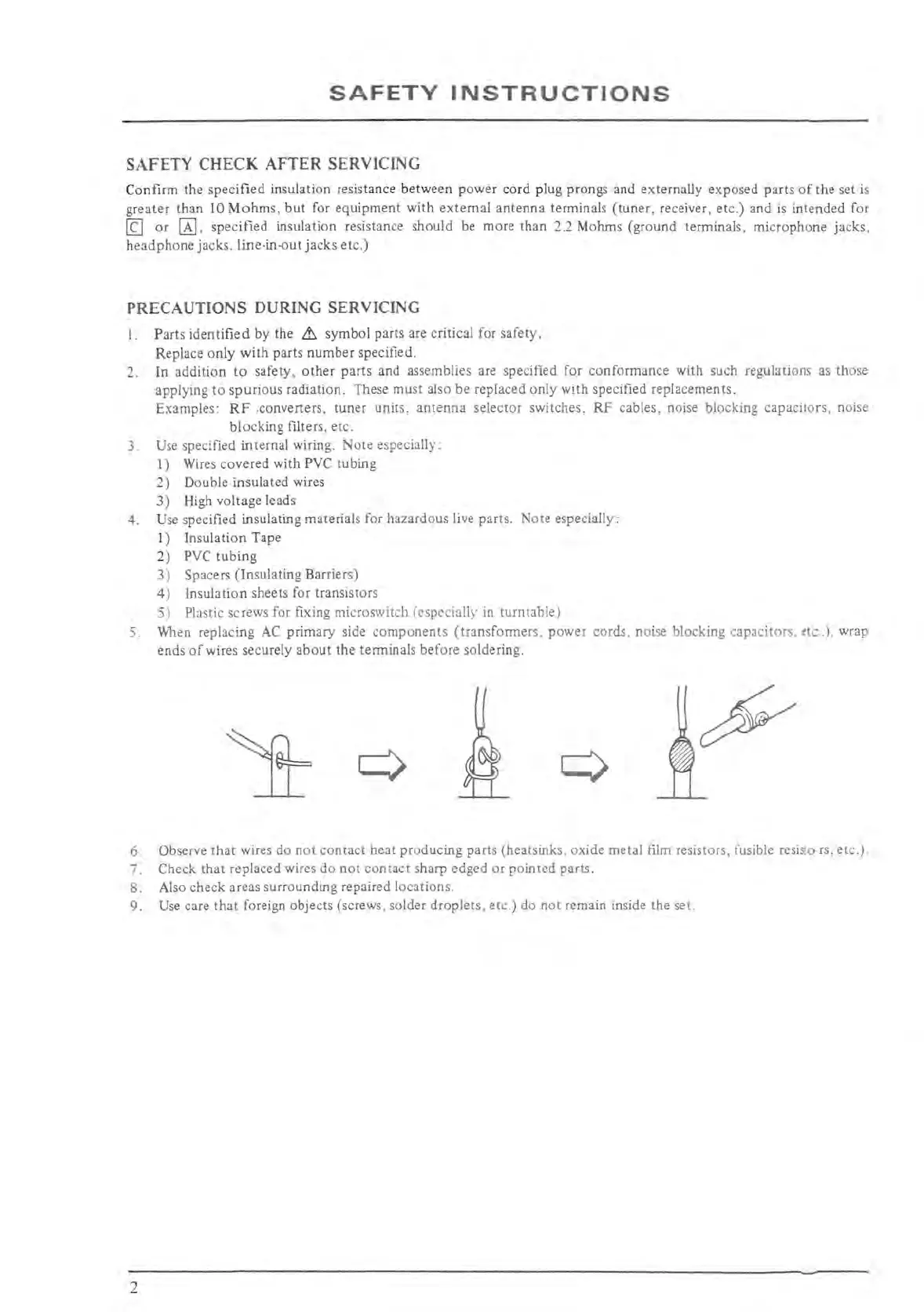

SAFETY
INSTRUCTIONS
SAFETY
CHECK
AFTER
SERVICING
Con
firm the
specified
insulation resistance
betw
een
powe
r
cord
plug prongs and
externally
exposed
parts
of
the set
is
greater
than
10
Mohms
,
but
for
equipment
with
external
antenna
terminals
(tuner
, receiver,
etc.)
and
is
intended
for
~
or
[Al
,
specified
insulation
resistance
should
be
more
than
2
.2
Moruns
(ground
terminals,
microphone
jack
s,
headphone
jacks.
line-in-out
jacks
etc.)
PRECAUTIONS
DURING
SERVICING
1.
Parts
identified
by
the
Lt,
symbol
parts are critical for
safety.
Replace
on
ly
with
parts
number
specified.
2.
In
addition
to
safety,
other
parts
and assemblies are specified for
conformance
with
such regulations as those
apply
in
g
to
spurious
radiation. These
must
al
so
be replaced
on
ly
with
specified
replacements.
Examples:
RF
.converters,
tuner
units
,
antenna
selector
switches,
RF
cables, noise
blocking
capacitors,
noise
blocking
filters,
etc
.
3. Use specified
internal
wiring.
Note
especially:
1) Wires
covered
with
PVC
tubing
2)
Double
insulated
wires
3)
High
voltage
leads
4.
Use specified insulating materials for
hazardous
live
parts
.
Note
especially:
1)
Insulation
Tape
2) PVC
tubing
3)
Spacers
(Insulating
Barriers)
4)
Insulation
sheets for transistors
5) Plastic screws for fixing microswitch (especially
in
turntable)
5. When replacing
AC
primary
side
components
(transformers
,
power
cords,
noise
blocking
ca
pacitor
s,
etc.)
, wrap
ends
of
wires securely
about
the
terminals
before
soldering.
6. Observe
that
wires do
not
contact
heat
producing
parts
(heatsinks,
oxide
metal
film resistors, fusible resis:o rs, etc.).
7.
Check
that
replaced wires
do
n
ot
con
t
act
sharp
edged
or
pointed
parts
.
8. Also
check
areas
surrounding
repaired loc:itions.
9.
Use care
that
foreign objects (screws, solder
droplets,
etc.)
do
not
remain inside
the
set.
