Akai GX-747 dbx Service Manual

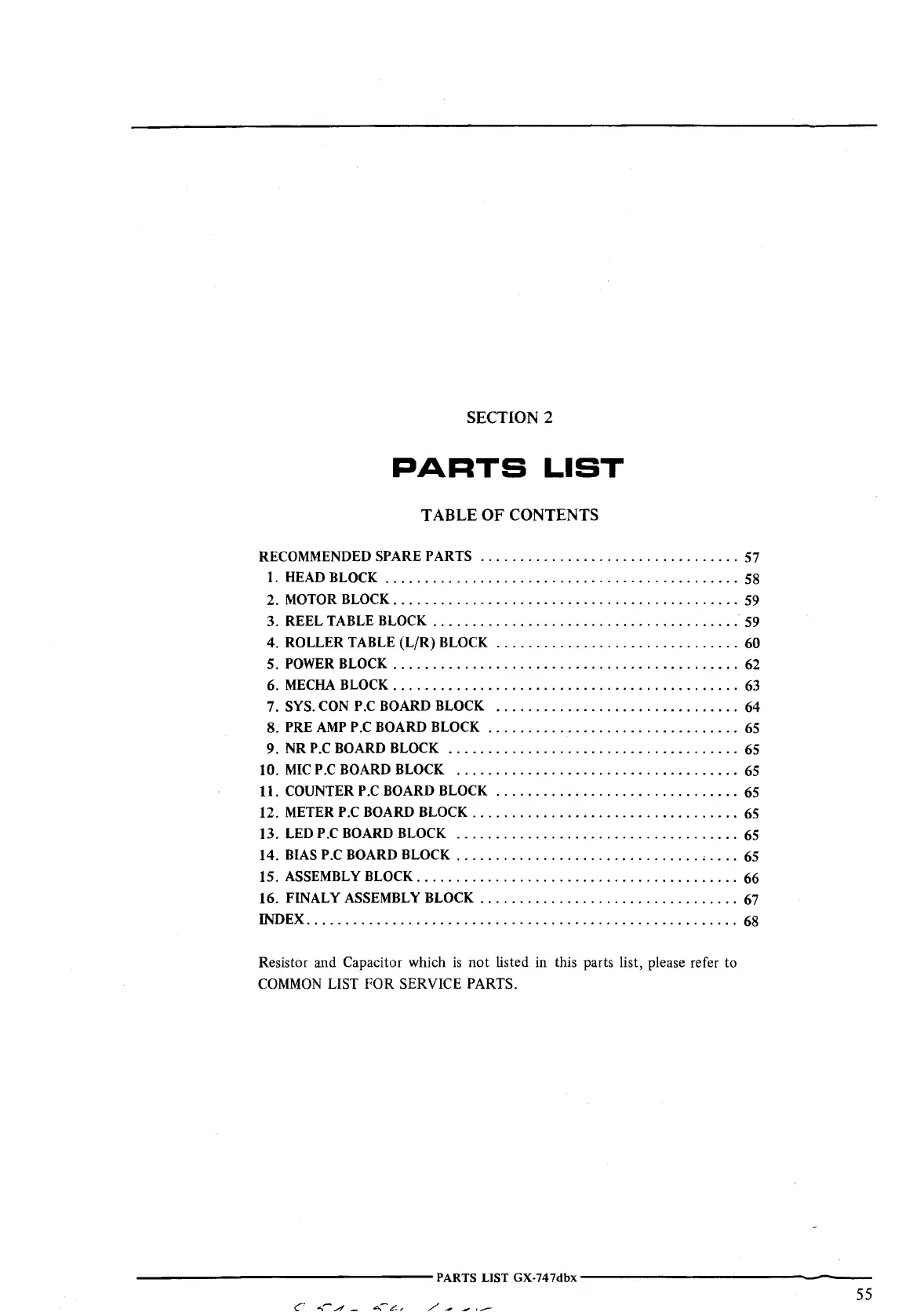

SECTION 2
PARTS LIST
TABLE OF CONTENTS
RECOMMENDED SPARE PARTS ................................. 57
1. HEAD BLOCK
............................................. 58
2. MOTOR BLOCK
............................................ 59
3. REEL TABLE BLOCK ....................................... 59
4. ROLLER TABLE
(L/R) BLOCK ............................... 60
5. POWER BLOCK ............................................ 62
6. MECHA BLOCK ............................................ 63
7. SYS. CON P
.C BOARD BLOCK ............................... 64
8. PRE
AMP P .C BOARD BLOCK ................................ 65
9. NR P .C BOARD BLOCK ..................................... 65
10. MIC P.C BOARD BLOCK .................................... 65
11. COUNTER P.C BOARD BLOCK
............................... 65
12. METER P.C BOARD BLOCK .................................. 65
13. LED P.C BOARD BLOCK .................................... 65
14. BIAS P.C BOARD BLOCK ............................... , .... 65
15. ASSEMBLY BLOCK ......................................... 66
16. FINALY ASSEMBLY BLOCK
................................. 67
INDEX
....................................................... 68
Resistor and Capacitor which is not listed in this parts list, please refer to
COMMON LIST FOR SERVICE PARTS.
---------------PARTS LIST GX-747dbx--------------
55

Akai GX-747 dbx Specifications

General

Track System	4-track, 2-channel stereo
Reel Size	up to 10.5 inch reel
Type	Reel to Reel
Heads	2 x erase
Motor	1 x capstan, 2 x reel
Tape Speed	9.5 cm/s, 19 cm/s
Wow and Flutter	0.03% (19 cm/s)
Signal to Noise Ratio	65dB
Input	1 x line, 1 x microphone
Output	1 x line
Dimensions	440 x 480 x 260 mm
