Akai GX-747 dbx Service Manual

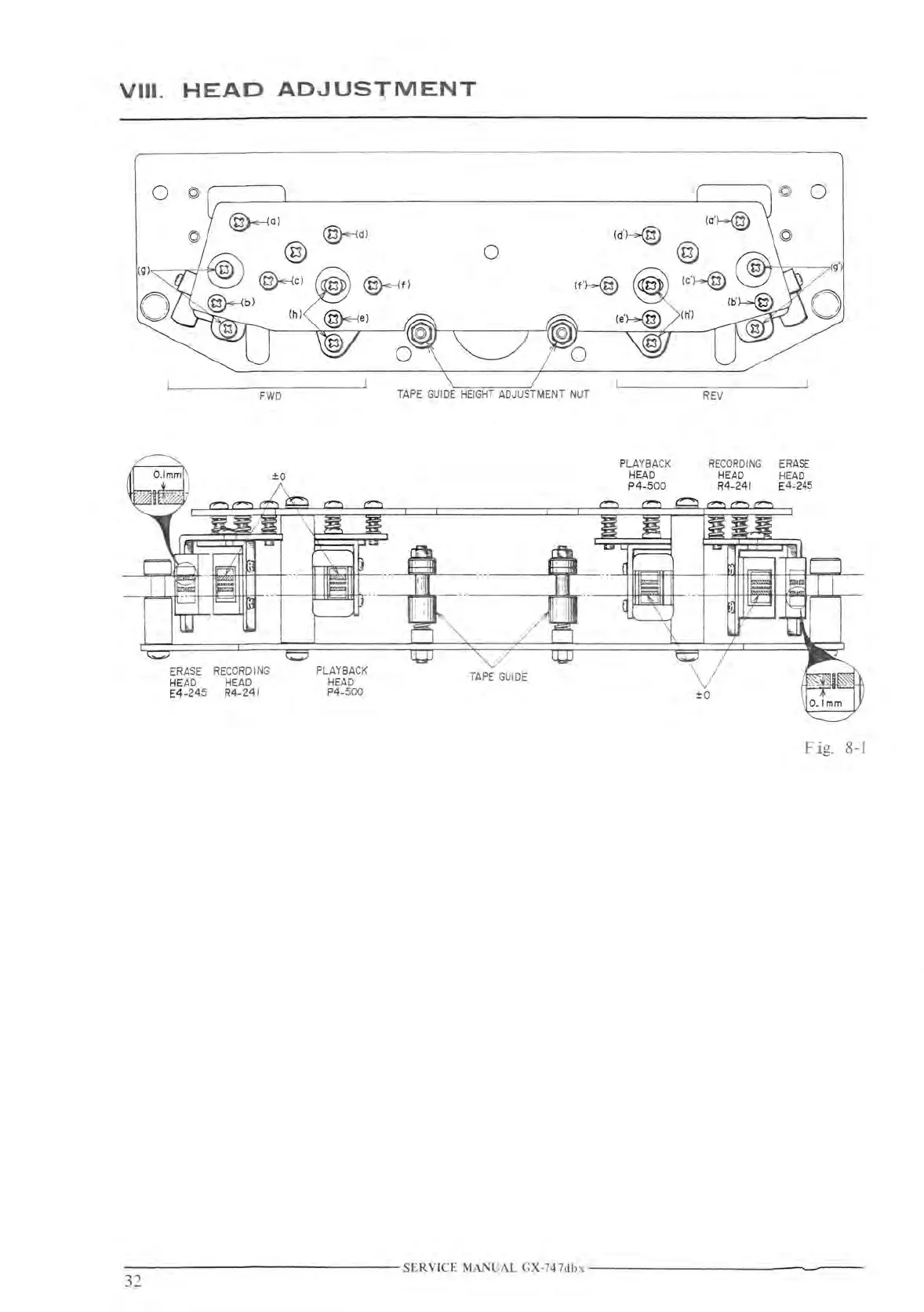

VIII. HEAD ADJUSTMENT
F WD
ER ASE RECORDING
HE AD HEAD
E4- 245 R4-2 41
PLAYBACK
HEAD
P4-500
0
TAPE GUIDE HEIGHT ADJUSTMENT NUT
TAPE GU I DE
P LAYBACK
HEAD
P4-500
R EV
RECORDING
HEAD
R4-241
ER ASE
H EA D
E 4- 245
Fig. 8-1
---- ---- - -- ----S E RVICE MANUAL GX-747dbx ---------- -------
32

Akai GX-747 dbx Specifications

General

Track System	4-track, 2-channel stereo
Reel Size	up to 10.5 inch reel
Type	Reel to Reel
Heads	2 x erase
Motor	1 x capstan, 2 x reel
Tape Speed	9.5 cm/s, 19 cm/s
Wow and Flutter	0.03% (19 cm/s)
Signal to Noise Ratio	65dB
Input	1 x line, 1 x microphone
Output	1 x line
Dimensions	440 x 480 x 260 mm
