Akai GX-747 dbx Service Manual

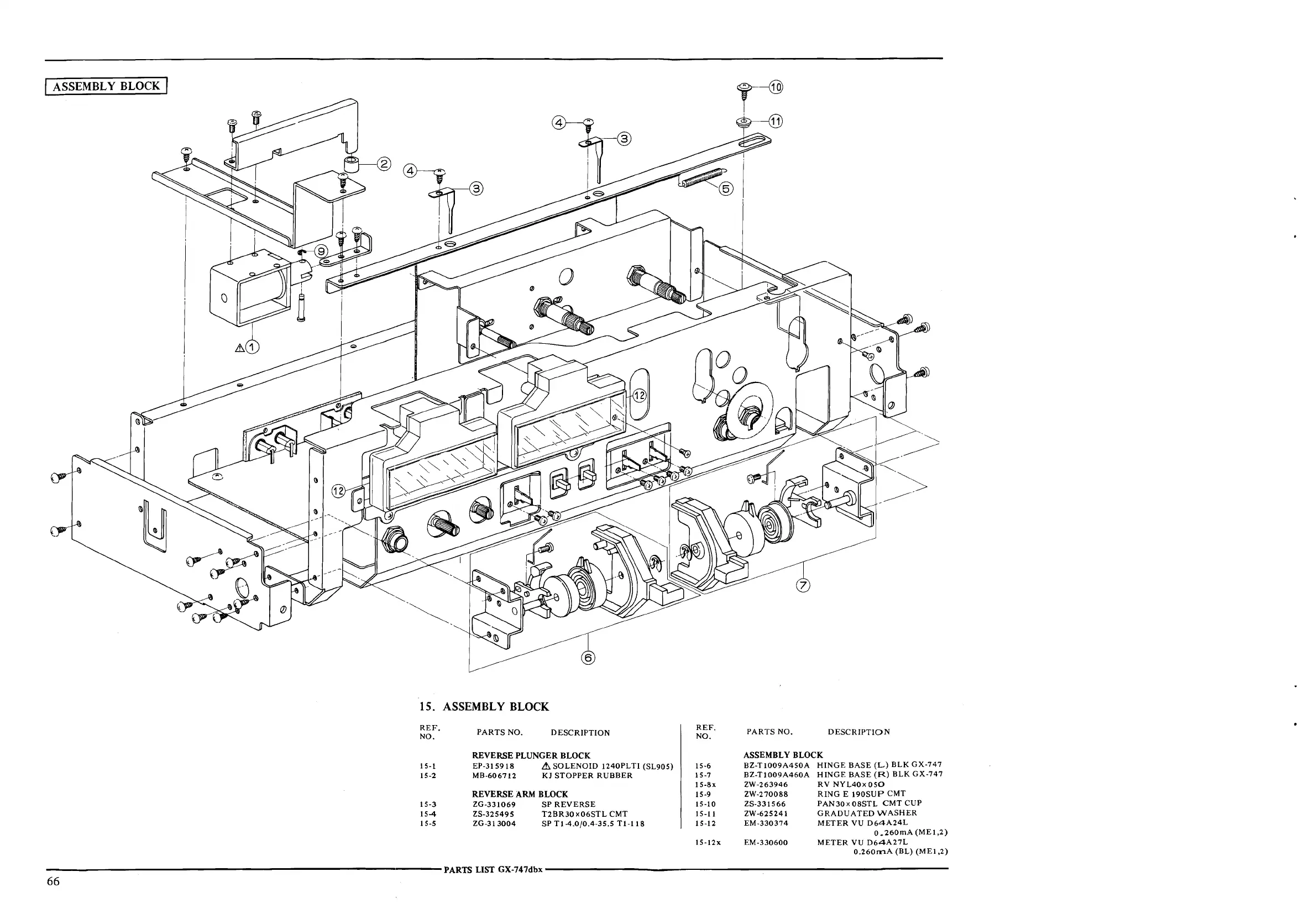

ASSEMBLY BLOCK
15. ASSEMBLY BLOCK
REF.
NO.
I 5-1
15-2
15-3
15-4
15-5
PARTS NO.
DESCRIPTION
REVERSE PLUNGER BLOCK
EP-315918 .1, SOLENOID 1240PLTI (SL905)
MB-606712 KJ STOPPER RUBBER
REVERSE ARM BLOCK
ZG-331069 SP REVERSE
ZS-325495
ZG-313004
T2BR30 x06STL CMT
SP Tl-4.0/0.4-35.5 TI-I 18
REF.
NO.
15-6
15-7
I 5-8x
15-9
15-10
15-11
I 5-12
15-12x
PARTS NO.
DESCRIPTION
ASSEMBLY BLOCK
BZ-TI009A450A HINGE BASE (L) BLK GX-747
BZ-TI009A460A HINGE BASE (R) BLK GX-747
ZW-263946 RV NYL40xoso
ZW-270088 RING E l 90SUP CMT
ZS-331566 PAN30x08STL CMT CUP
ZW-625241 GRADUATED WASHER
EM-330374 METER VU D64A24L
0.260mA (MEl,2)
EM-330600 METER VU D64A27L
0.260rnA (BL) (MEI ,2)
--------------------------------- PARTS LIST GX-747dbx---------------------------------
66

Akai GX-747 dbx Specifications

General

Track System	4-track, 2-channel stereo
Reel Size	up to 10.5 inch reel
Type	Reel to Reel
Heads	2 x erase
Motor	1 x capstan, 2 x reel
Tape Speed	9.5 cm/s, 19 cm/s
Wow and Flutter	0.03% (19 cm/s)
Signal to Noise Ratio	65dB
Input	1 x line, 1 x microphone
Output	1 x line
Dimensions	440 x 480 x 260 mm
