Akai GX-747 dbx Service Manual

I V.

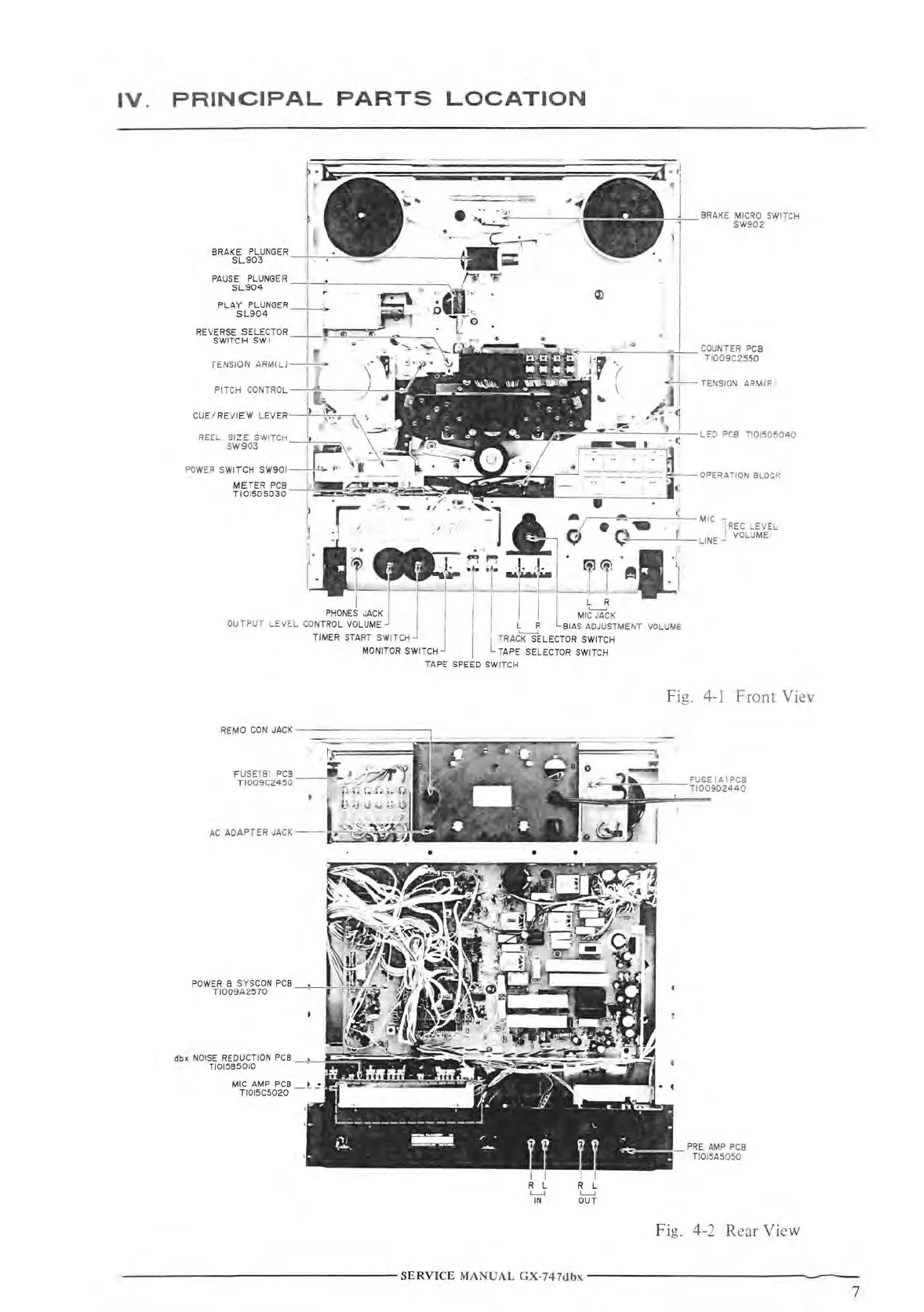

PRINCIPAL PARTS LOCATION
F USEIBI PCB ~ J _..... '.,'.-;
TI 009C2450 - ·;
J r. \a r~
,
AC ADAPTER J ACK --b tl ~ ::.
dbx NOISE REDUCTION PCB_,_ -
TI01 585010 -
MIC AMP PCB
TIOl5C5020
TAPE SPEED SWITCH
R L
L....J
IN
I
R L
L....J
OUT
BRAKE M
ICRO SW I TC H
SW902
Fi g. 4-1 Front Vie \V
F US E ! AIPCS
TI009D2440
_ PRE AMP PCB
TI015A5050
F ig. 4-2 R ear View
----- ------------SERVICE M ANU AL GX-747dbx ------ -----------
7

Akai GX-747 dbx Specifications

General

Track System	4-track, 2-channel stereo
Reel Size	up to 10.5 inch reel
Type	Reel to Reel
Heads	2 x erase
Motor	1 x capstan, 2 x reel
Tape Speed	9.5 cm/s, 19 cm/s
Wow and Flutter	0.03% (19 cm/s)
Signal to Noise Ratio	65dB
Input	1 x line, 1 x microphone
Output	1 x line
Dimensions	440 x 480 x 260 mm
