Akai GX-747 dbx Service Manual

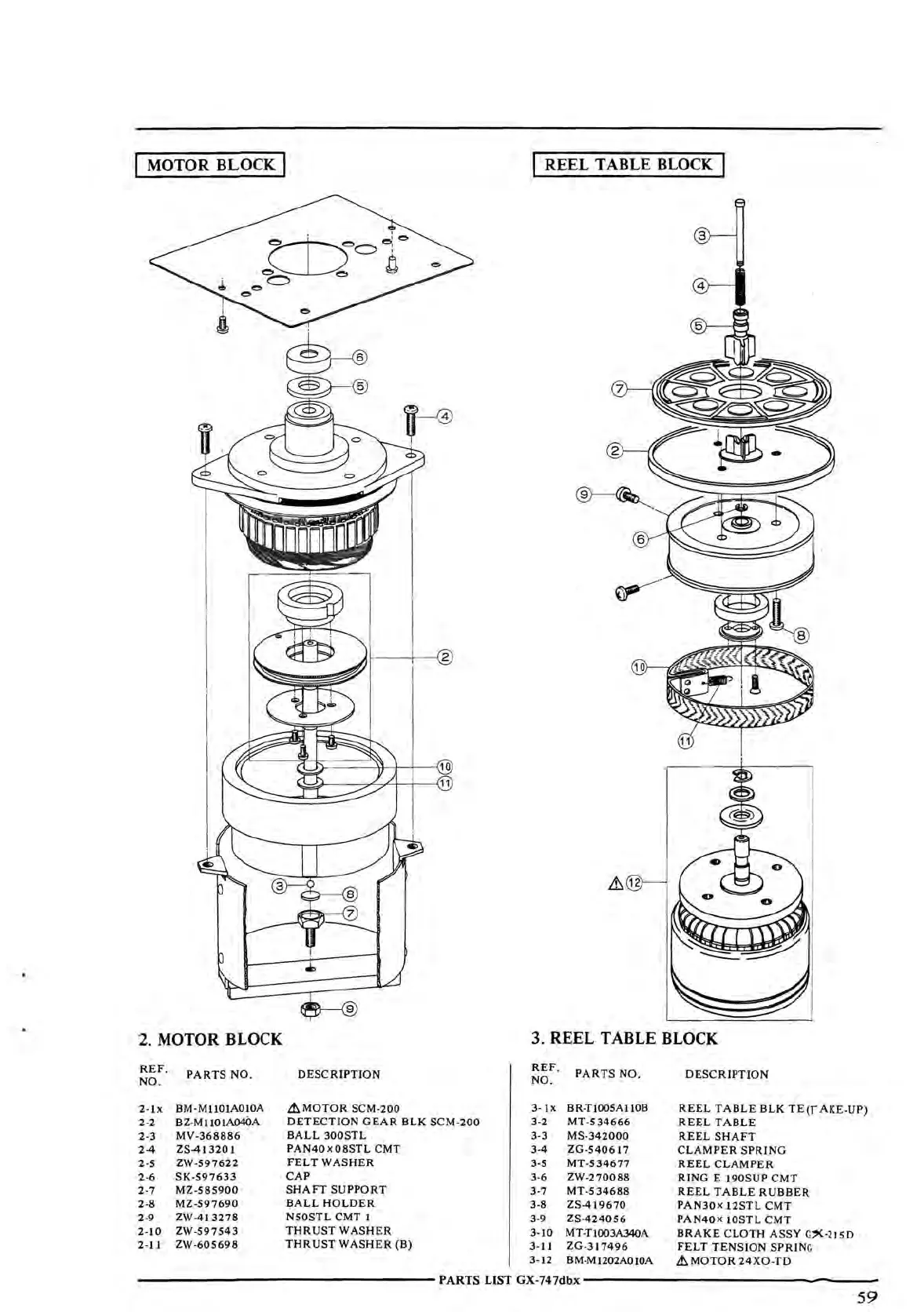

MOTOR BLOCK
REEL TABLE BLOCK
3
4
2. MOTOR BLOCK
3. REEL TABLE BLOCK
REF.
PARTS NO.
DESCRIPTION
REF .
PARTS NO.
DE SCRIPTION
NO .
NO.
2- lx
BM·Mll0IA0IOA
_&. MOTOR SCM-200
3- Ix BR-T!OOSAI IOB
REEL TABLE BLK TE(r AKE- UP)
2-2 BZ-Mi!0!A040A
DETECTION GEAR BLK SCM- 200
3-2
MT-534666
REEL TABLE
2-3 MV-368886
BALL 300STL
3.3
MS-342000
REEL SHAFT
2-4 ZS-41320 I
PAN40X08STL CMT
3-4
ZG-5406 I 7
CLAMPER SPRING
2-5
ZW-597622
FELT WASHER
3-5
MT-534677
REEL CLAMPER
2-6 SK-597633
CAP
3-6
ZW-270088
RING E l 90SUP CMT
2-7 MZ-585900
SHAFT SUPPORT
3-7
MT-534688
REEL TABLE RUBBER
2-8
MZ-597690
BALL HOLDER
3-8
ZS-419670
PAN30x 12STL CMT
2-9
ZW-413278
N50STL CMT I
3-9
ZS-424056
PAN40X !0STL CMT
2-10
ZW-597543
THRUST WASHER
3-10
MT-Ti003A340A
BRAKE CLOTH ASSY G :,( •2 !5D
2-11
ZW-605698 THRUST WASHER (B)
3-11
ZG-317496
FELT TENSION SPRIN G
3-12
BM-M !202A0 !0A
_&.MOTOR 24XO-TD
------------------ PARTS LIST GX - 747dbx------------------
59

Akai GX-747 dbx Specifications

General

Track System	4-track, 2-channel stereo
Reel Size	up to 10.5 inch reel
Type	Reel to Reel
Heads	2 x erase
Motor	1 x capstan, 2 x reel
Tape Speed	9.5 cm/s, 19 cm/s
Wow and Flutter	0.03% (19 cm/s)
Signal to Noise Ratio	65dB
Input	1 x line, 1 x microphone
Output	1 x line
Dimensions	440 x 480 x 260 mm
