Akai GX-747 dbx Service Manual

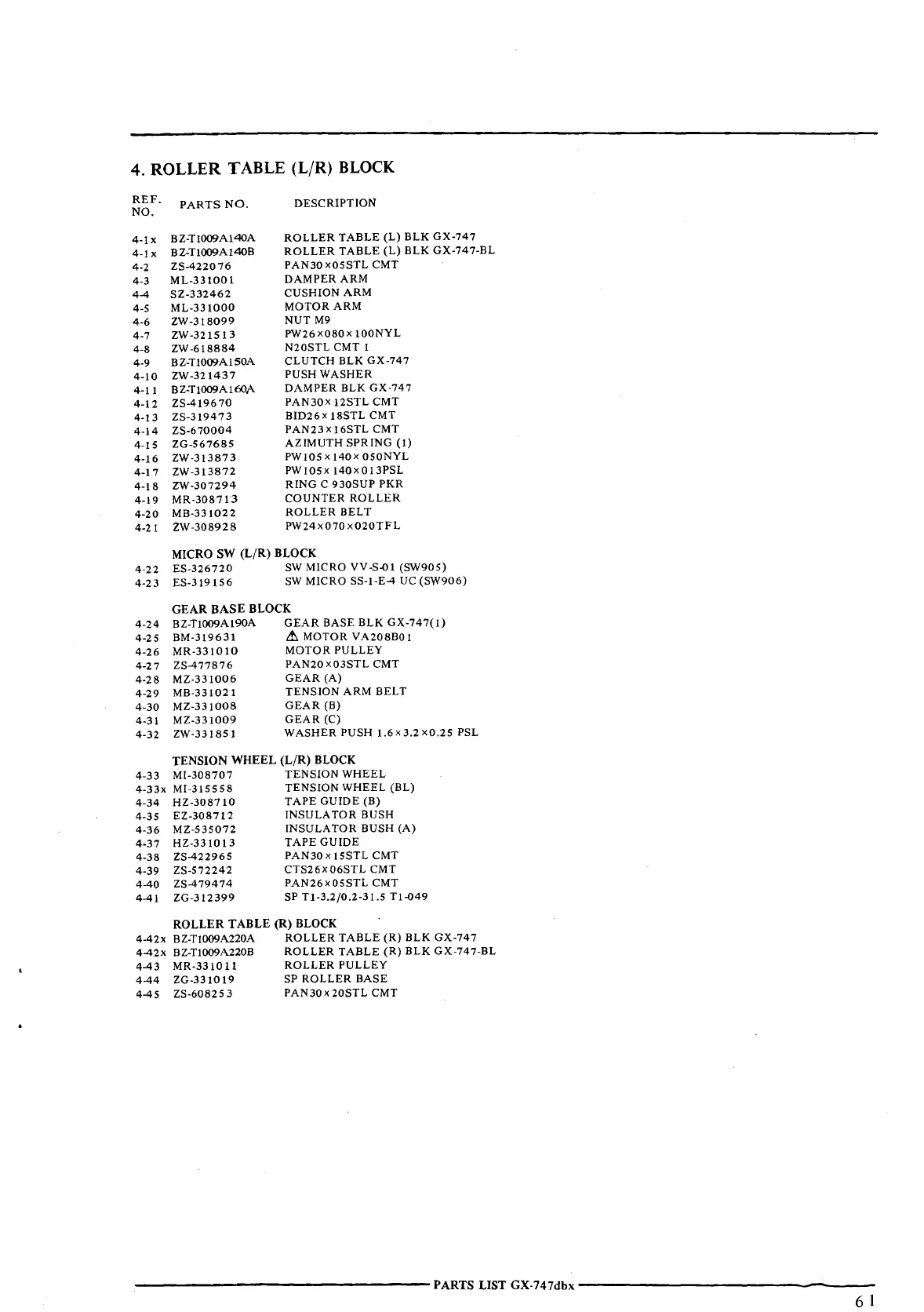

4. ROLLER TABLE (L/R) BLOCK
REF.
NO.
PARTS NO.
DESCRIPTION
4-lx
BZ-Tl009Al 40A
ROLLER TABLE (L) BLK GX-747
4-lx
BZ-Tl009Al40B
ROLLER TABLE (L) BLK GX-747-BL
4-2
ZS-422076
PAN30 X0SSTL CMT
4-3
ML-331001
DAMPER ARM
4-4
SZ-332462
CUSHION ARM
4-5
ML-331000
MOTOR ARM
4-6
ZW-318099
NUT M9
4-7
ZW-321S 13
PW26 x080x !00NYL
4-8
ZW-618884
N20STL CMT 1
4-9
BZ-T1009A!SOA
CLUTCH BLK GX-747
4-10
ZW-321437
PUSH WASHER
4-11
BZ-T!009AI60A
DAMPER BLK GX-747
4-12
ZS-419670
PAN30X 12STL CMT
4-13
ZS-319473
BID26X 18STL CMT
4-14
ZS-670004
PAN23 x 16STL CMT
4-15
ZG-567685
AZIMUTH SPRING (1)
4-16
ZW-313873
PW 105 x 140 X 0S0NYL
4-17
ZW-313872
PW105X 140X013PSL
4-18
ZW-307294
RING C930SUP PKR
4-19
MR-308713
COUNTER ROLLER
4-20
MB-331022
ROLLER BELT
4-21
ZW-308928
PW24 x070 x 020TFL
MICRO SW (L/R) BLOCK
4-22 ES-326720 SW MICRO VV-S-01 (SW905)
4-23 ES-319156 SW MICRO SS-1-E-4 UC (SW906)
GEAR BASE BLOCK
4-24
BZ-Tl009Al90A
GEAR BASE BLK GX-747(1)
4-25
BM-319631
&. MOTOR VA208B01
4-26
MR-331010
MOTOR PULLEY
4-27
ZS-477876
PAN20X03STL CMT
4-28
MZ-331006
GEAR (A)
4-29
MB-331021
TENSION ARM BELT
4-30
MZ-331008
GEAR (B)
4-31
MZ-331009
GEAR (C)
4-32
ZW-331851
WASHER PUSH 1.6 x 3.2 X0.25 PSL
TENSION WHEEL (L/R) BLOCK
4-33 Ml-308707 TENSION WHEEL
4-33x MI-315558 TENSION WHEEL (BL)
4-34 HZ-308710 TAPE GUIDE (B)
4-35 EZ-308712 INSULATOR BUSH
4-36 MZ-535072 INSULATOR BUSH (A)
4-37 HZ-331013 TAPE GUIDE
4-38 ZS-422965 PAN30 x lSSTL CMT
4-39 ZS-572242 CTS26X06STL CMT
4-40 ZS-479474 PAN26x05STL CMT
4-41 ZG-312399 SP TJ-3.2/0.2-31.5 TJ-049
ROLLER TABLE (R) BLOCK
4-42x BZ-T1009A220A ROLLER TABLE (R) BLK GX-747
4-42x BZ-T1009A220B ROLLER TABLE (R) BLK GX-747-BL
4-43 MR-331011 ROLLER PULLEY
4-44 ZG-3310 19 SP ROLLER BASE
4-45 ZS-608253 PAN30X20STL CMT
----------------- PARTS LIST GX-747dbx-----------------
6 1

Akai GX-747 dbx Specifications

General

Track System	4-track, 2-channel stereo
Reel Size	up to 10.5 inch reel
Type	Reel to Reel
Heads	2 x erase
Motor	1 x capstan, 2 x reel
Tape Speed	9.5 cm/s, 19 cm/s
Wow and Flutter	0.03% (19 cm/s)
Signal to Noise Ratio	65dB
Input	1 x line, 1 x microphone
Output	1 x line
Dimensions	440 x 480 x 260 mm
