AkitikA PR-101NR - Install the Not so Tall Polarized Capacitors; Install the Fuse and Fuse Holder; Install the Tall Polarized Capacitors; Figure 3-Fuse Holder Body Solders into Board, Installing Fuse into Lid of Fuse Holder

Page 11 of 68
C3
0.1 µF
100 V Ceramic, 104
C4
0.1 µF
100 V Ceramic, 104
C7
0.1 µF
100 V Ceramic, 104
C8
0.1 µF
100 V Ceramic, 104
C5
0.01 µF
400 V Mylar,
10n (stands for 10 nano
-
Farad
s)
C6
0.01 µF
400 V Mylar,
10n (stands for 10 nano
-
Farads)
C18 0.033
µF
300 V AC, box shaped cap

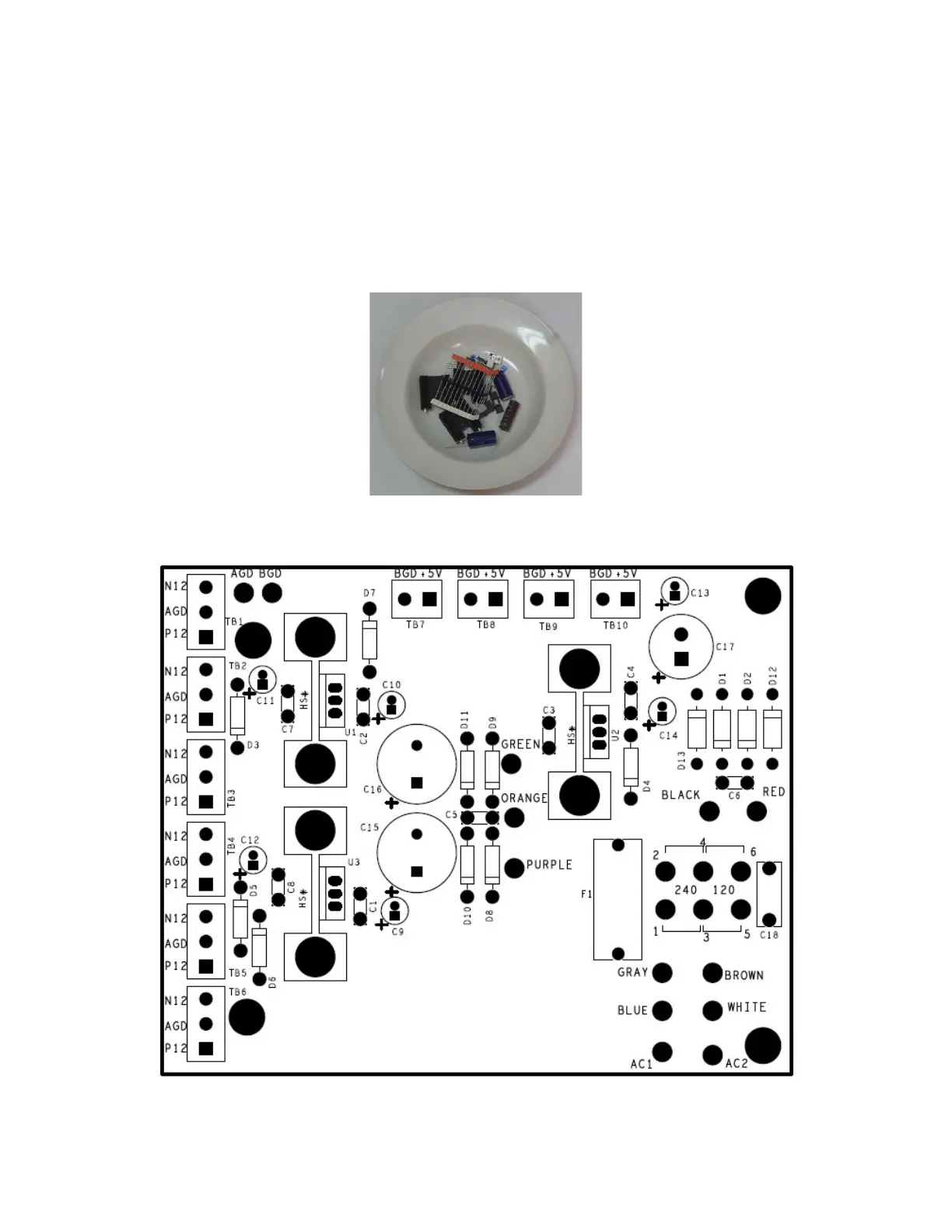

Install the Not so Tall Polarized Capacitors
It’s important to install these caps with the proper polarity. The negative end of the cap is
marked with a minus sign. The silk screen on the board marks where the positive end of
the cap goes. Make sure that the negative end of the cap is away from the plus sign on the
circuit board.
Polarized Capacitors
–
polarity matters!
Designation
Value
Rating
Done? (

)
C9
22
µF
35 V electrolytic
C10
22
µF
35 V electrolytic
C11
22
µF
35 V electrolytic
C12
22
µF
35 V electrolytic
C13
22
µF
35 V electrolytic
C14
22
µF
35 V electrolytic
Install the Fuse and Fuse Holder
Action
Done? (

)
Solder the body of the fuse holder shown on the left side of Figure 3 into
the silk
-
screen marked F1 on the PCB.
Insert the 0.25 Amp (for 120-Volt operation) or the 0.125 Amp (for 240-
Volt operation) fuse into the fuse holder lid.
Fit the combination of the fuse plus the fuse-holder lid into the body to
complete fuse installation.
Figure 3-Fuse holder body solders into board, installing fuse into lid of fuse holder
Install the Tall Polarized capacitors
Polarized C
apacitors
–
polarity matters!
D
ouble check the rated voltage
!
C15
4700
µF
35
V electrolytic
C16
4700
µF
3
5 V electrolytic
C17
4700
µF
16
V electrolytic
