Page 24 of 68

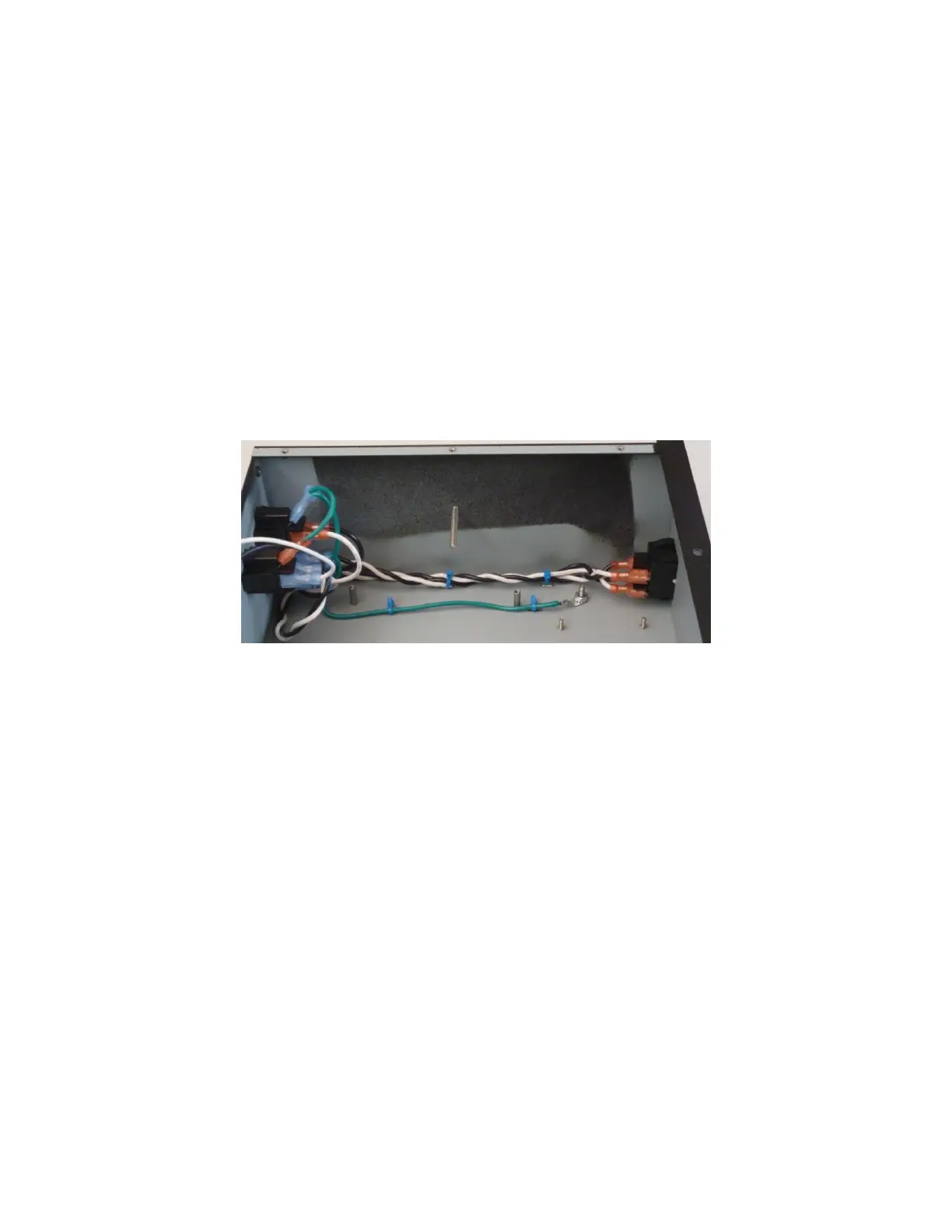

d. Insert the brown wire into the power supply PCB hole labeled brown, and
solder the wire on the solder side. Clip the extra on the solder side.
e. Insert the blue wire into the power supply PCB hole labeled blue, and
solder the wire on the solder side. Clip the excess on the solder side.
2. Form a twisted pair from the white and gray wires.
a. Cut the twisted pair to a 4” length from the transformer.
b. Remove 0.25” of insulation from both ends
c. Twist and tin both bare ends
d. Insert the gray wire into the power supply PCB hole labeled gray, and
solder the wire on the solder side. Clip the extra on the solder side.
e. Insert the white wire into the power supply PCB hole labeled white, and
solder the wire on the solder side. Clip the extra on the solder side.
3. Form a twisted pair from the red and black wires.
a. Cut the twisted pair to a 4” length from the transformer.
b. Remove 0.25” of insulation from both ends
c. Twist and tin both bare ends
d. Insert the red wire into the power supply PCB hole labeled red, and solder
the wire on the solder side. Clip the extra on the solder side.
e. Insert the black wire into the power supply PCB hole labeled black, and
solder the wire on the solder side. Clip the extra on the solder side.
4. Form a twisted pair from the orange and green wires. Then twist the violet
(purple) wire around the orange green pair.
a. Cut the three twisted wires to a 4” length from the transformer.
b. Remove 0.25” of insulation from all three ends
c. Twist and tin all three bare ends
d. Insert the orange wire into the power supply PCB hole labeled orange, and
solder the wire on the solder side. Clip the extra on the solder side.
e. Insert the green wire into the power supply PCB hole labeled green, and
solder the wire on the solder side. Clip the extra on the solder side.
f. Insert the purple (violet) wire into the power supply PCB hole labeled
purple, and solder the wire on the solder side. Clip the extra on the solder
side.
Add Power Output wires to the power supply
12 Volt Ground wires
Locate the green 18 AWG stranded wire. Prepare an 8” length and a 10” length per the
following diagram:
