AkitikA PR-101NR User Manual

Page 47 of 80
Designation Value Description Done

C2
0.1 µF
100
volt ceramic capacitor, marked 104
C4
0.1 µF
100 volt ceramic capacitor, marked 104
C5
0.1 µF
100 volt ceramic capacitor, marked 104
C20
0.1 µF
100 volt ceramic capacitor, marked 104
C21
0.1 µF
100 volt
ceramic capacitor, marked 104
C22
0.1 µF
100 volt ceramic capacitor, marked 104
C23
0.1 µF
100 volt ceramic capacitor, marked 104
C24
0.1 µF
100 volt ceramic capacitor, marked 104
C25
0.1 µF
100 volt
ceramic capacitor, marked 104
Install the Integrated Circuit Sockets

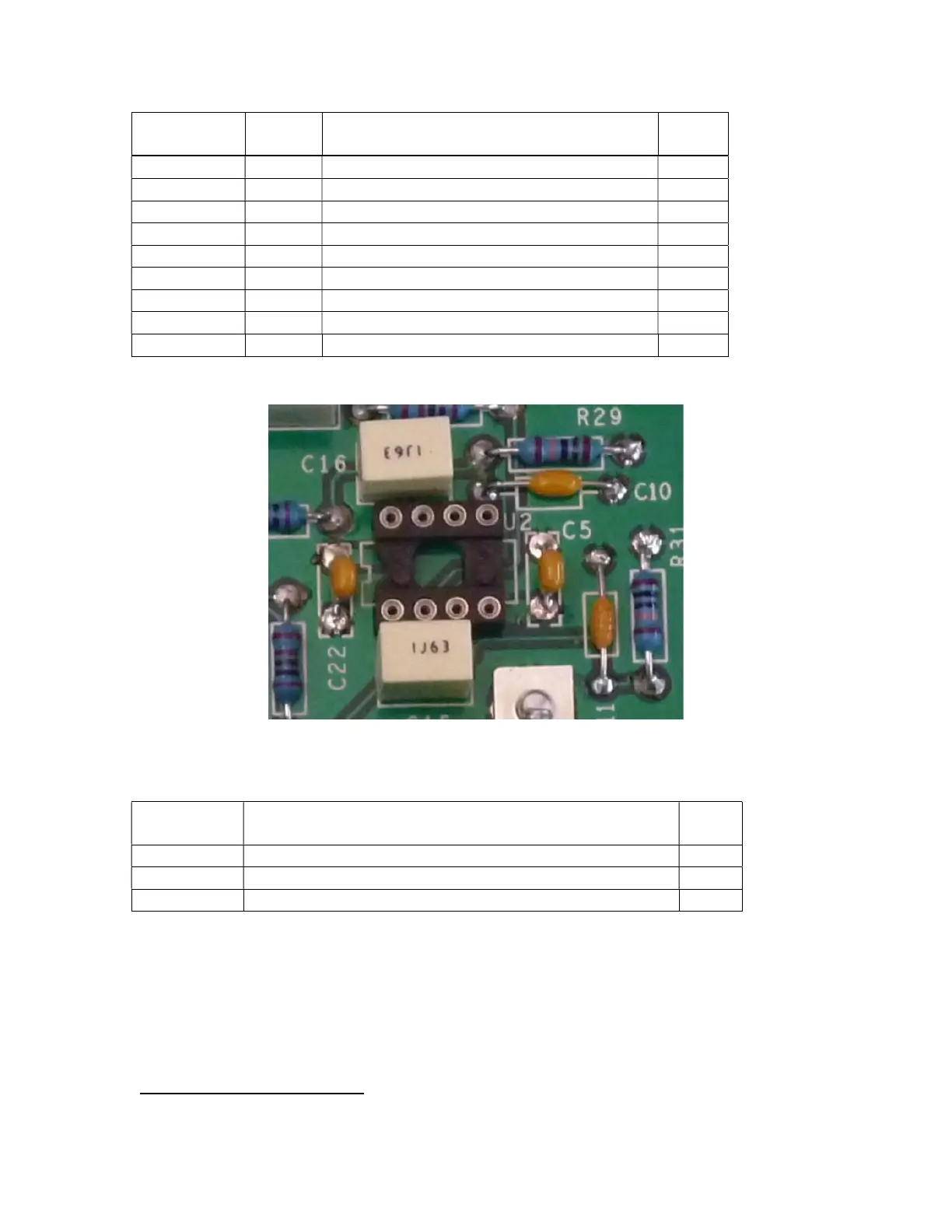

Figure 31-Align socket feature with silk screen
We’ve supplied IC sockets for the op-amps that have gold-plated pins. They may be
found in the “PR102 Opamp Sockets” envelope. You’ll install the 3 IC sockets now. The
actual ICs will be installed in a later step
6
.
Designation Watch IC socket orientation! See Figure 31 Done

U2
Solder an 8 pin IC socket in place
U3
Solder an 8 pin IC socket in place
U4
Solder an 8 pin IC socket in place
Install the Control Cable Connector
Look at Figure 32 CAREFULLY to be sure that you’re installing P1 correctly! Match the
indicated features of the connector to the picture.
6
3 more sockets will be installed at a later step when the tone-volume board is built.
