AkitikA PR-101NR - Connecting the Chassis Ground; Figure 15-Adding Lug to Ground Harness; Figure 16-AC Power and Ground Wiring

Page 22 of 68
Figure 15-Adding Lug to Ground Harness
Connecting the Chassis Ground
Locate the #6 toothed lug. It’s packed in the “Screw Nut Lug” envelope. Locate the green
ground harness. It has green wire with 3 FASTONs.
1. Cut the long green wire to 8” length as shown in Figure 15.
2. Remove 3/8” of insulation from the now 8” wire. Twist and tin the strands. Loop
and crimp the wire on the lug as shown in Figure 15. Solder the wire to the lug.
3. Connect the blue 0.25” wide FASTON to the center terminal of the IEC power
connector.
4. Connect the blue 0.187” wide FASTON to the center terminal of the unswitched
outlet.
5. Connect the red 0.187” wide FASTON to the center terminal of the switched
outlet.
6. Dress the long green wire toward the ground stud behind the switch as shown in
Figure 16. Use two more cable ties in the tie down positions shown to secure the
ground wire.

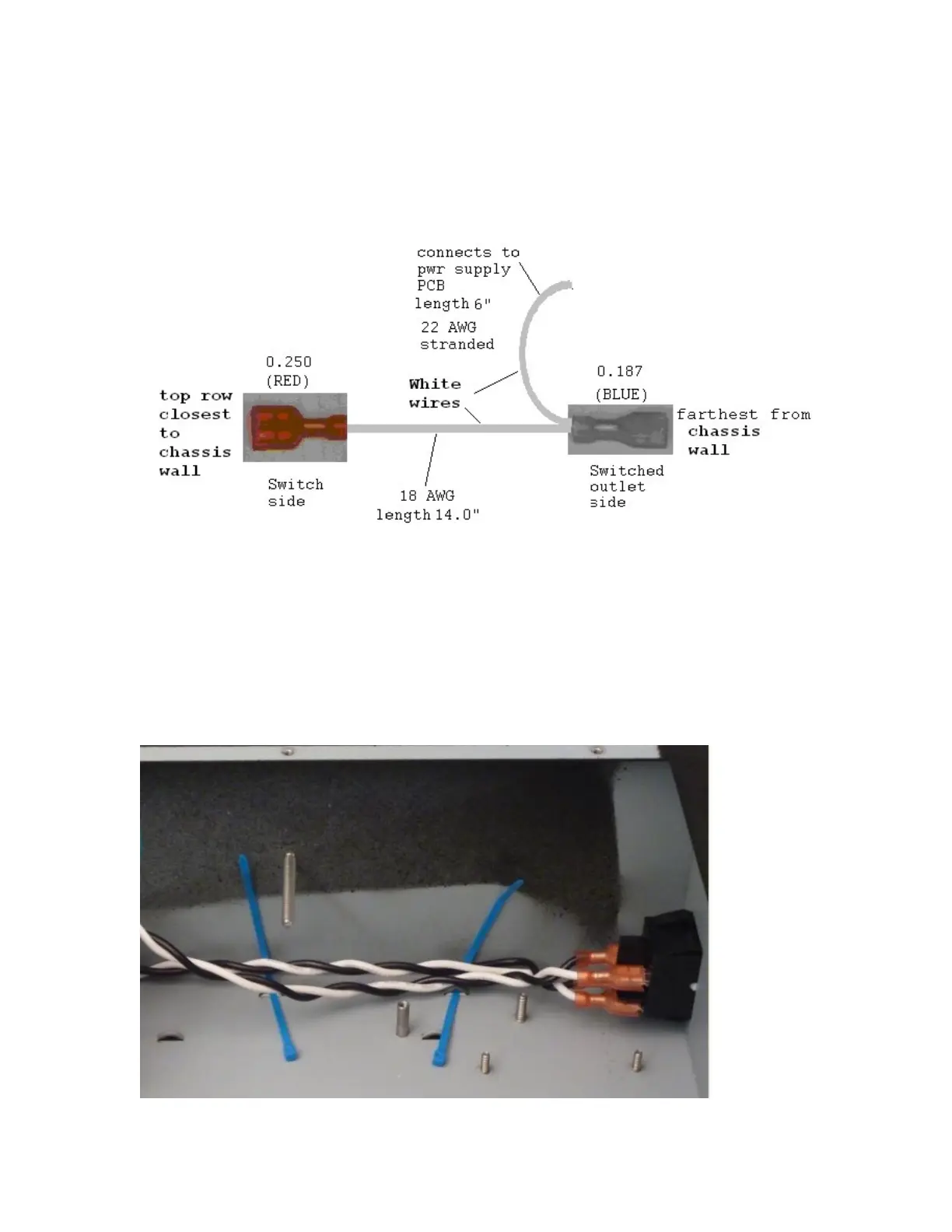

Figure 16-AC Power and Ground Wiring
7. Use a plain 6-32 nut to hold the ground lug on the chassis stud.
