you get the orientation of the IEC power connector correct…it’s pretty well impossible to
remove once installed!

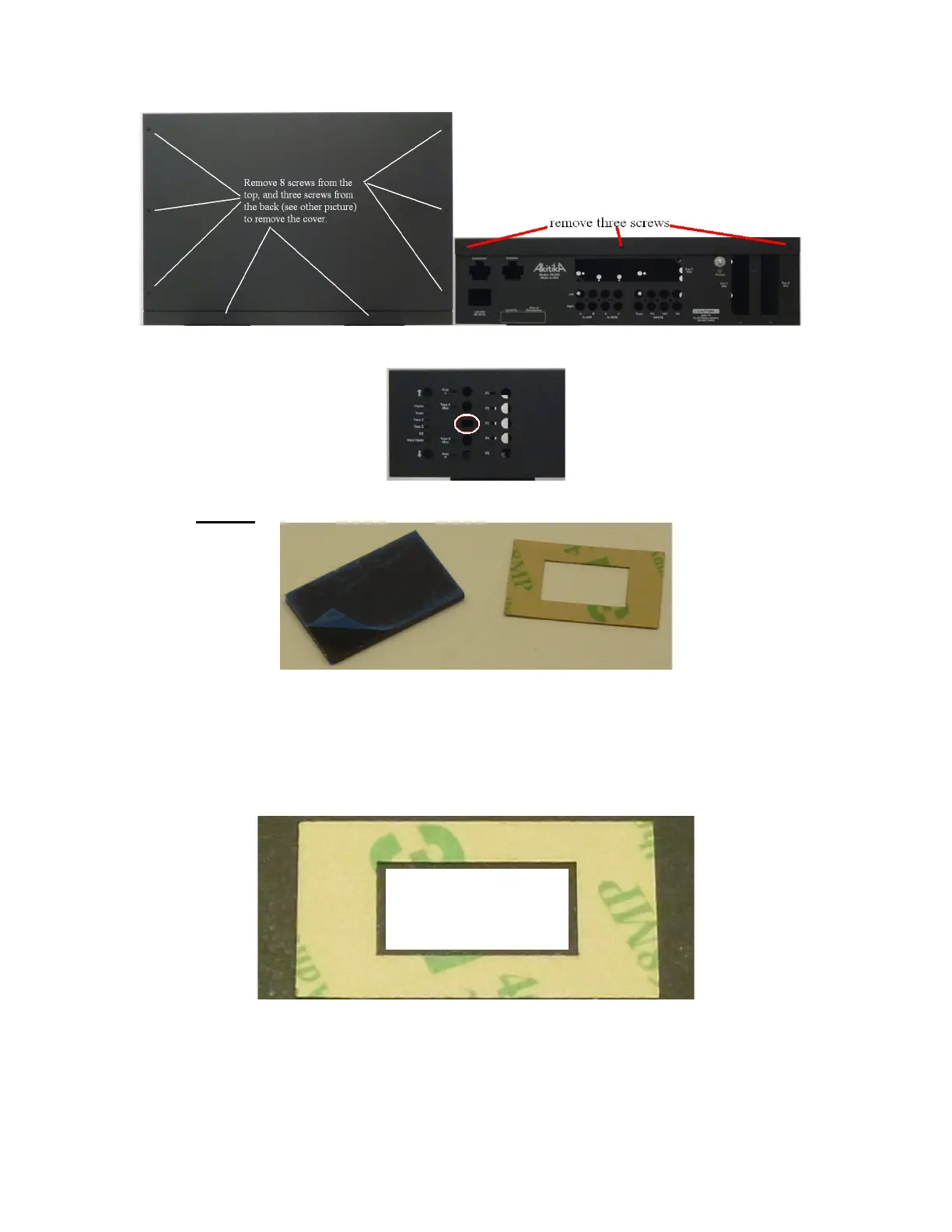

Figure 12-Installing power outlets and IEC connector...watch orientation! Installing the power
switch…watch orientation!
Push the front panel power switch into the front panel from the outside. Make sure you
have the orientation correct with the O on the switch toward the chassis bottom before
you push it in. It is very difficult to remove once installed.
Power Wiring
The kit includes five pre-built wiring harnesses with fully insulated FASTON connectors
to make the power wiring easy and safe. The FASTONs take a little force to push on, and
a lot more force to remove. You can save your fingers if you use needle nose pliers to
push the FASTON connectors in place.
Read the instructions carefully to make sure you have them in the right place before you
push them on the terminals.
Locate the black unswitched power harness. It has black wire with 3 FASTONs.
1. Connect the blue 0.25” wide FASTON to the IEC power contact closest to the
chassis wall.
2. Connect the red 0.187” wide FASTON to the unswitched outlet contact closest to
the chassis wall.
