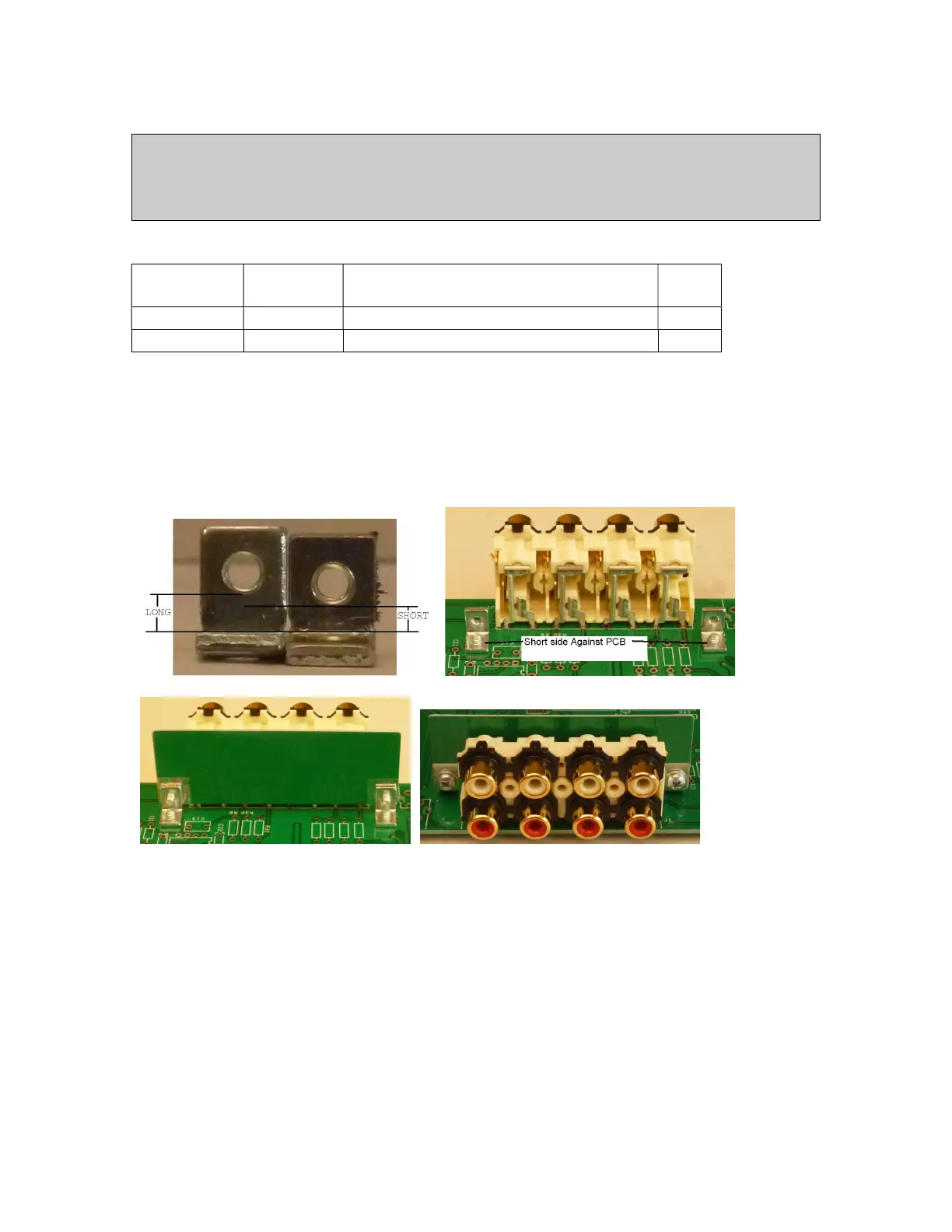

AkitikA PR-101NR - Install Input Selector Power Wiring

Page 50 of 68
Select one of the 7” pieces with a remaining red wire (and no black wire).
Solder it into TB12’s RT terminal. Insert it from the component side and
solder it on
the solder side.
Cover the accompanying drain wire with ½” of the outside gray jacket
material. Solder the drain wire into TB12’s GND terminal. Insert it from
the component side and solder it on the solder side.
Select the other of the 7” pieces with a remaining red wire (and no black
wire). Solder it into TB10’s RT terminal. Insert it from the component side
and solder it on the solder side.
Cover the accompanying drain wire with ½” of the outside gray jacket
material. Solder the drain wire into TB10’s GND terminal. Insert it from
the component side and solder it on the solder side.
Select one of the 7” pieces with a remaining black wire (and no red wire).
Solder it into TB11’s LT terminal. Insert it from the component side and
solder it on the sol
der side.
Cover the accompanying drain wire with ½” of the outside gray jacket
material. Solder the drain wire into TB11’s GND terminal. Insert it from
the component side and solder it on the solder side.
Select the other of the 7” pieces with a remaining black wire (and no red
wire). Solder it into TB9’s LT terminal. Insert it from the component side
and solder it on the solder side.
Cover the accompanying drain wire with ½” of the outside gray jacket
material. Solder the drain wire into TB9’s GND terminal. Insert it from the
component side and solder it on the solder side.
Select the other of the 9” wire that has black, red, and drain wires on both
ends. Insert the wires from the component side and solder them on the
solder side:
1. Red wire to TB8 RT terminal.
2.
Black wire to TB7 LT terminal..
Cover the accompanying drain wire with ½” of the outside gray jacket
material. Solder the drain wire into Drain wire to TB7 GND terminal.
Insert it from the component side and solder it on the solder side.
Install Input Selector Power Wiring
These steps refer to the gray jacketed wires and green wire that connect to TB3 of the
power supply board.
Connecting +/
-
12V power and AGND to the Input Selector
Done? (

)
Remove ¼” of insulation from the red wire.
Tight
ly twist the red wire strands, then tin them.
Remove ¼” of insulation from the black wire.
Tightly twist th
e black
wire strands, then tin them.
Remove
¼” of insulation from the green
wire.
Tightly twist th
e green
wire strands, then tin them.
