5. Connect the red 0.187” wide FASTON to the unswitched outlet contact farthest
from the chassis wall.
6. For now, leave the remaining long end with the FASTON connector loose.
7. Twist the white and black wires from steps 3 and 6 together to form an insulated,
twisted pair. About 1 twist per inch will take up enough length so that there’s only
a little bit left to tuck into the corners.
8. Insert a pair of small cable ties into the tie down points as indicated in Figure
14and lay the twisted pair over the cable tie, forming the twisted pair into the
corner of the chassis. Don’t close the cable ties yet.

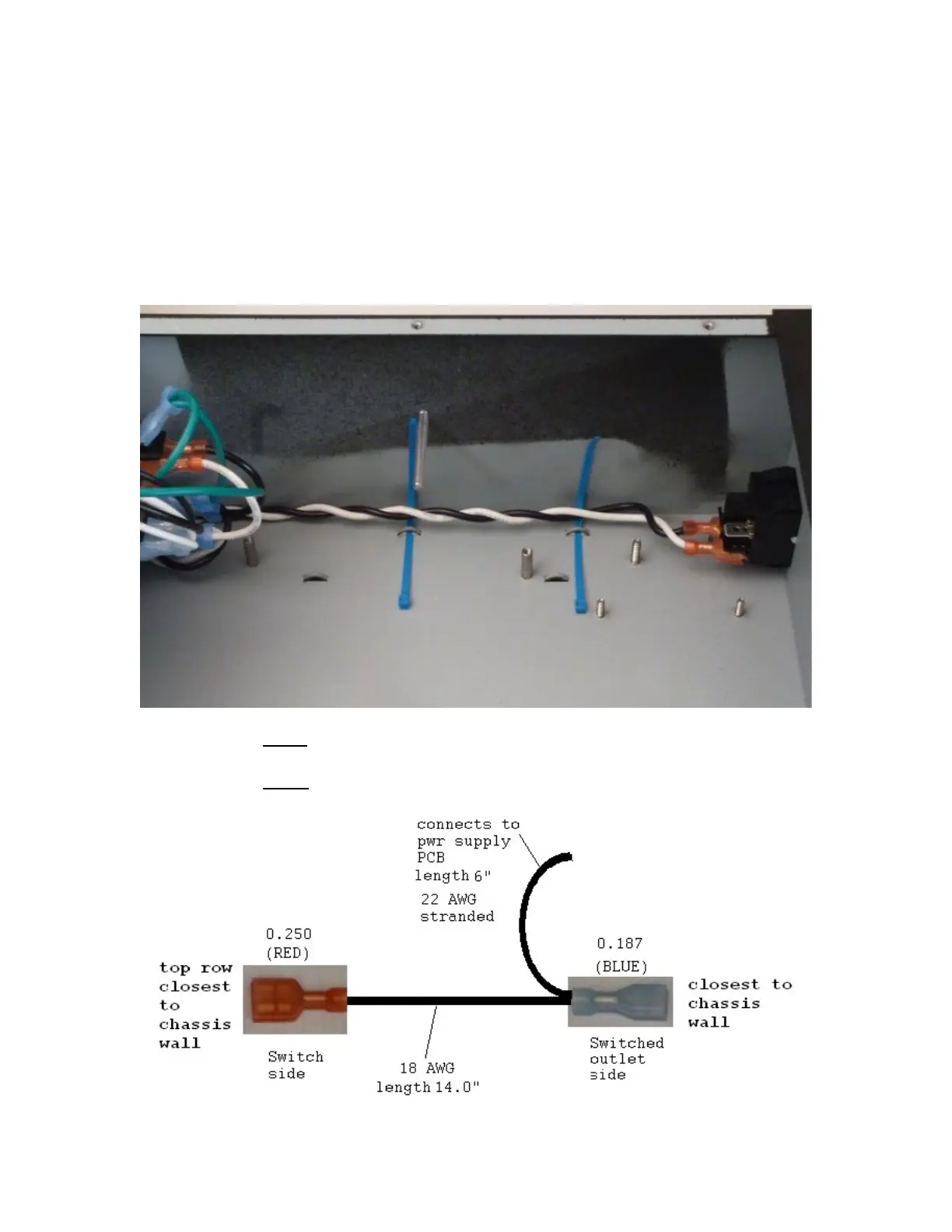

Figure 14-Insert cable ties, then lay twisted pair into the chassis corner
9. Connect Black wire of the twisted pair to the bottom row switch contact closest to
the chassis wall.
10. Connect White wire of the twisted pair to the remaining bottom row switch
contact.
