AkitikA PR-101NR User Manual

Page 37 of 80
You’ll note an unusual order to the buttons below. If you follow that order, then you
install the outside corner buttons first. That makes it easy to correctly install the rest of
the buttons.
Here’s a good way to install the push buttons. Set SW1, SW11, SW2, and SW7 in the
marked silk screen areas. Place a piece of cardboard over the switches to make a
cardboard-switch-PCB sandwich. Flip the sandwich smoothly and set it on your work
surface. The switches will still be retained, and should be flat against the PCB before you
solder them in place.
Designation Description (note that all the push
button switches are the same, being
normally open switches)
Done

SW1
Normally open push button switc
h
SW11
Normally open push button switch
SW2
Normally open push button switch
SW7
Normally open push button switch
Use the same method to insert and solder in the rest of the switches.
Designation
Description
Done

SW3
Normally open push
button switch
SW4
Normally open push button switch
SW5
Normally open push button switch
SW6
Normally open push button switch
SW8
Normally open push button switch
SW9
Normally open push button switch
SW10
Normally open push button switch
Install the Infrared Detector
The infrared detector is installed on same side of the controller board as the push button
switches.
U9
TSOP32238
IR Detector
Use C2 (not yet installed, 2200 pF film capacitor marked 2n2K63) as a guide to forming
the bend in the leads as shown in Figure 26. This places the center of the bent leads about
0.1” from the edge of the IR detector body.

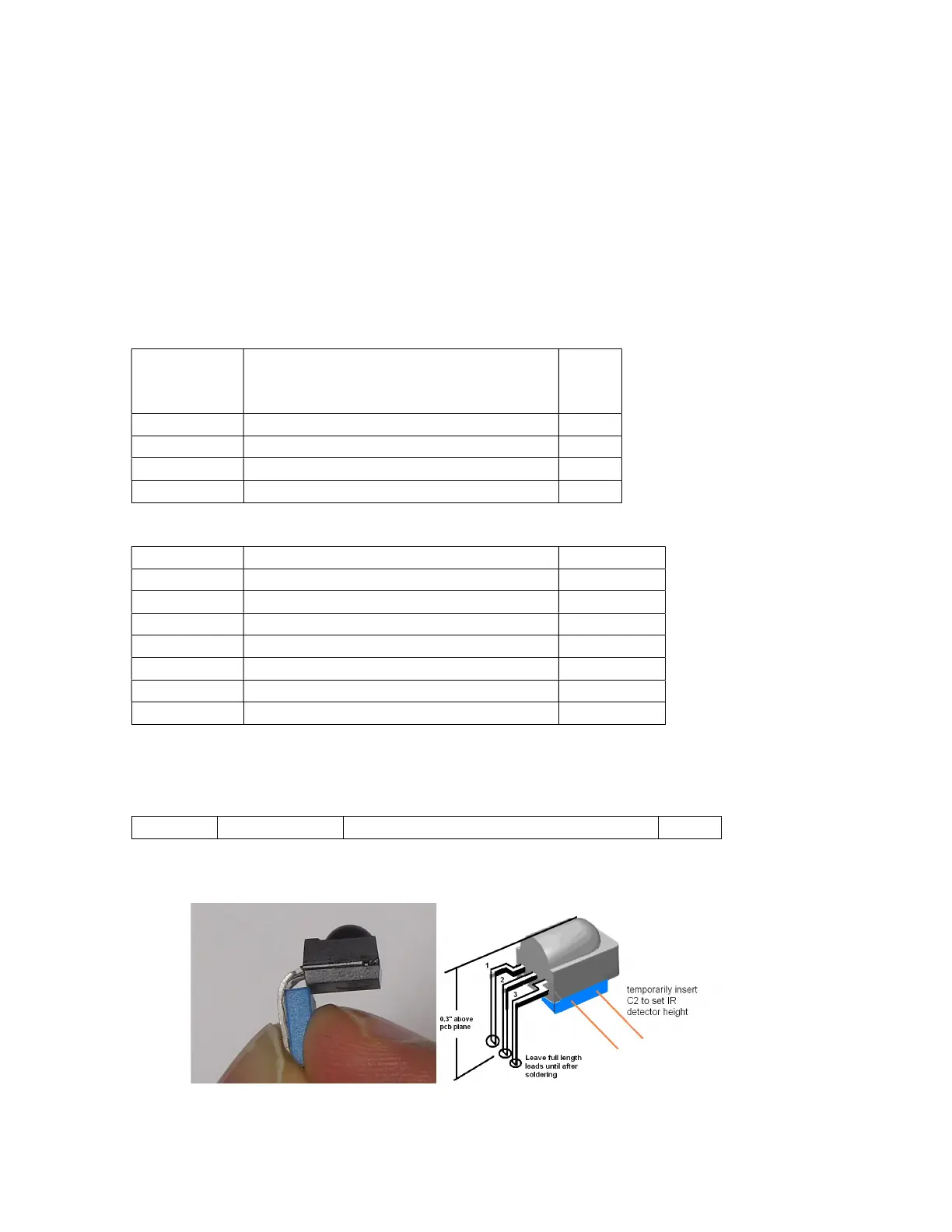

Figure 26-Bending the IR Detector Leads and setting the mounting height
