Page 56 of 68

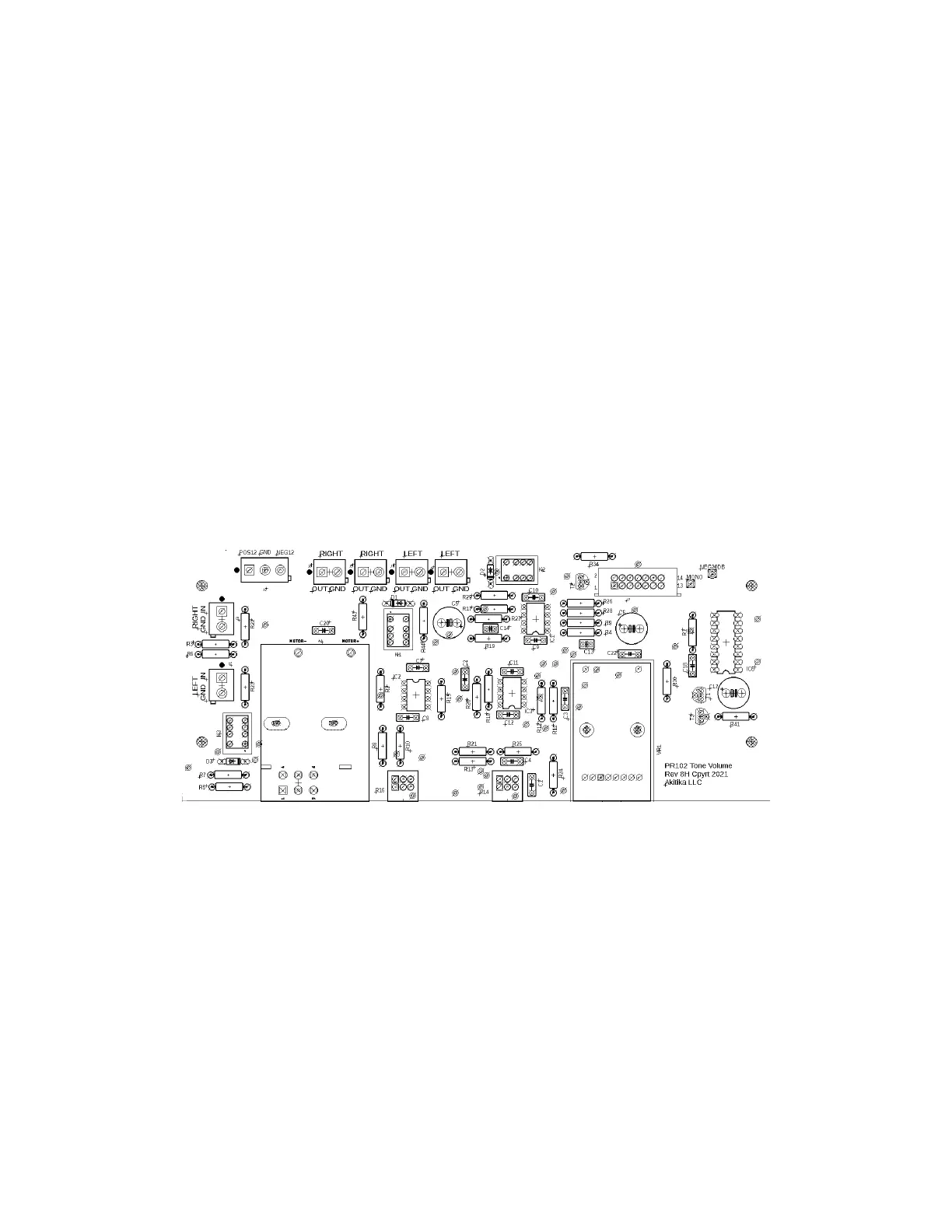

The following diodes are not installed in the NR version of the preamp
D2
1N4004
Not installed
D3
1N4004
Not installed
D4
1N4004
Not installed
D5
1N
4004
Not installed
D6
1N4004
Not installed
D7
1N4004
Not installed
D8
1N4004
Not installed
D9
1N4004
Not installed
Now we’ll install the following small capacitors:
Bend leads to 0.4” spacing if you have a lead
-
bending jig
Designation Value Description Done
C3
100 pF
COG, marking 101K
C5
100 pF
COG
C6
100 pF
COG
C9
100 pF
COG
C
29
100 pF
COG
C
30
100 pF
COG
Install the bypass capacitors:
These leads are pre
-
formed, no bending is needed
Designation Value Description Done
C11
0.1 µF
Bypass cap, 100 V, marked 104
C12
0.1 µF
Bypass cap, 100 V, marked 104
C13
0.1 µF
Bypass cap, 100 V, marked 104
C14
0.1 µF
Bypass cap, 100 V, marked 104
C15
0.1 µF
Bypass cap, 100 V, marked 104
C16
0.1 µF
Bypass cap, 100 V, marked 104
C1
7
0.1 µF
Bypass cap, 100 V, marked 104
C18
0.1 µF
Bypass cap, 100 V, marked 104
C19
0.1 µF
Bypass cap, 100 V, marked 104
C20
0.1 µF
Bypass cap, 100 V, marked 104
C24
0.1 µF
Bypass cap, 100 V, marked 104
C25
0.1 µF
Bypass cap, 100 V, marked 104
C26
0.1 µF
Bypass cap, 100 V, marked 104
C27
0.1 µF
Bypass cap, 100 V, marked 104
C28
0.1 µF
Bypass cap, 100 V, marked 104
