Akuvox E21 Series - Relay Control; HTTP Relay Control

9
E21A/V
Admin Guide
If select static IP, users should manually setup IP address, subnet
mask, default gateway and DNS server address. The figure right
shows static IP setting.
3.3.2.4. Local RTP
Go to Network - Advanced to configure.
Local RTP: To display and configure Local RTP settings.
Starting RTP Port: Determine the minimum port that RTP stream
can use.
Max RTP Port: Determine the maximum port that RTP stream can
use.
3.3.2.5. SNMP
Go to Network - Advanced to configure.
SNMP: To display and configure SNMP settings.
Active: To enable or disable SNMP feature.

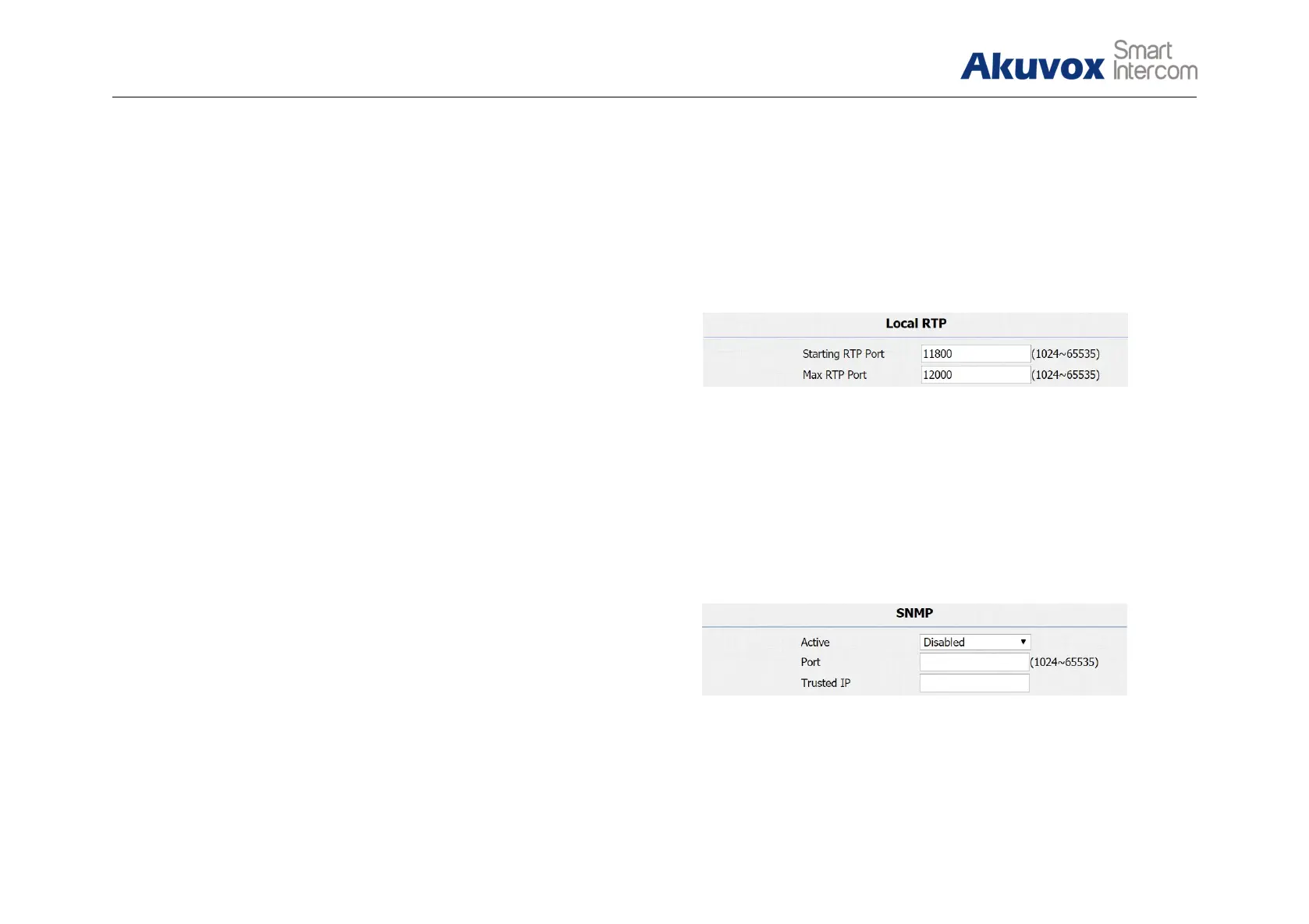

Figure 3.3.2.4 Local RTP
Figure 3.3.2.5 SNMP
