CHECKING THE EFFICIENCY OF THE

LEFT/RIGHT FRICTION PADS

1. Check that the stabiliser is correctly coupled by ensuring

the coupling handle is fully down and the red indicator

button is in the raised position.

2. Push the stabiliser handle down until resistance is felt

(ie. the friction pads are in contact with the ball but not yet

under pressure) (Fig 24/Item 1).

3. Check the position of the arrowhead on the arm of the

stabiliser. If it lines up with the two green lines then the

friction pads are still as new (Fig 24/A).

4. If the arrowhead lines up with the two red lines then the

friction pads are worn and should be replaced immediately

(Fig 24/B).

NOTE

When the stabiliser handle is correctly applied, the arrowhead

should line up with the black line marked 2 (Fig 24/C).

NOTE

The friction pads do not require any form of lubrication and

should be cleaned with a ne emery paper prior to every

journey. It is not necessary to adjust the friction pads.

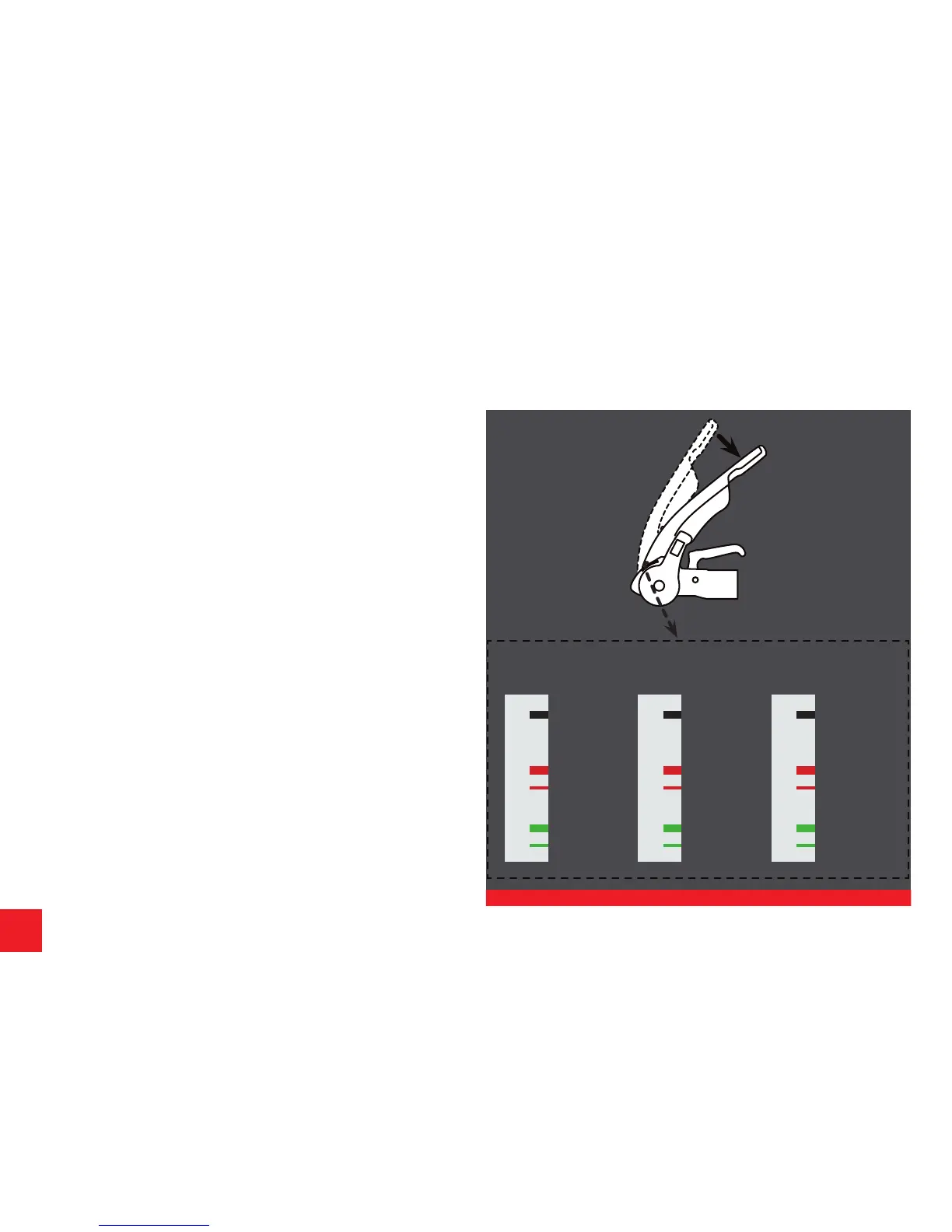

Fig 24 Checking Left/Right Friction Pads

OPERATING INSTRUCTIONS

FOR AKS 3004 STABILISER


