This type of coupling is normally tted to
trailers or older model caravans.
OPERATING INSTRUCTIONS
COUPLING UP
Push the safety lever (Fig 35/Item 1) up with the index nger
and lift the handle up and forwards. Put the opened coupling
onto the towball with the handle pulled up and in addition
press down by hand. The coupling will close by applying a
light pressure. Press the handle down by hand until the catch
snaps out (Fig 35/Item 3).
The coupling head is correctly engaged when the green
cylinder part of the safety indicator is visible (Fig 35/Item 2).
CAUTION
It is most important to check that the coupling head is
properly engaged on the towball each time.

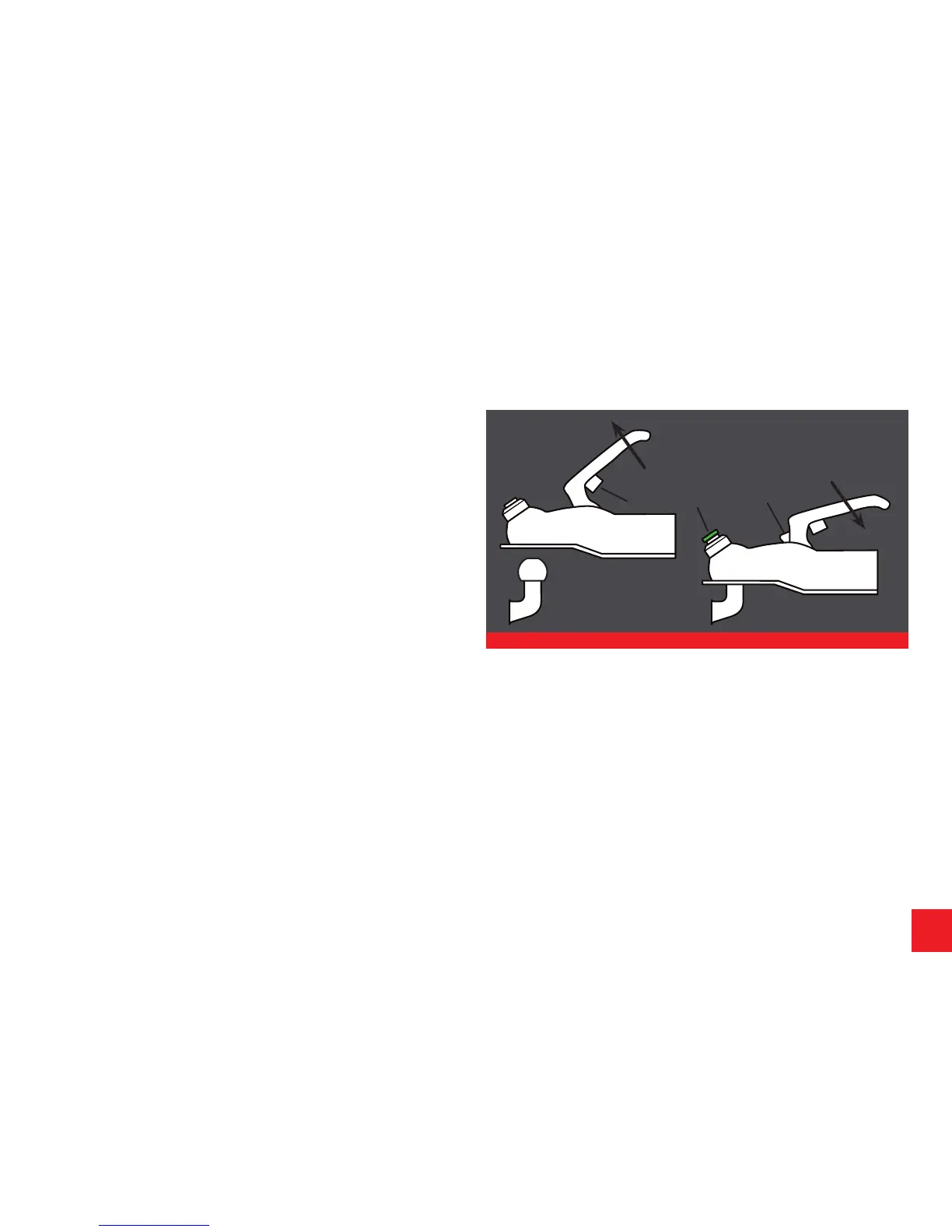

Fig 35 Coupling Up
UNCOUPLING
Lift coupling handle fully and remove the coupling head from
the towball. Where there are higher nose loads, coupling and
uncoupling can be made easier by using the jockey wheel.
2
3
1
COUPLING TYPES AK7, AK10/2 OR AK252
