OPERATING INSTRUCTIONS
FOR AKS 3004 STABILISER
SERVICING AND CLEANING
Friction Pad Replacement
(Replace one at a time)
1. Uncouple AKS 3004.
2. Remove protective caps (Fig 27/Item 1) with the aid of a
small screwdriver.
3. Press worn out pad inwards and remove (use punch and
hammer) (Fig 27/Item 2).
4. Insert new friction pad from below (after rst re-inserting
shim washers if they were present) and press in as far as it
will go (Fig 27/Item 3 & Fig 27a).

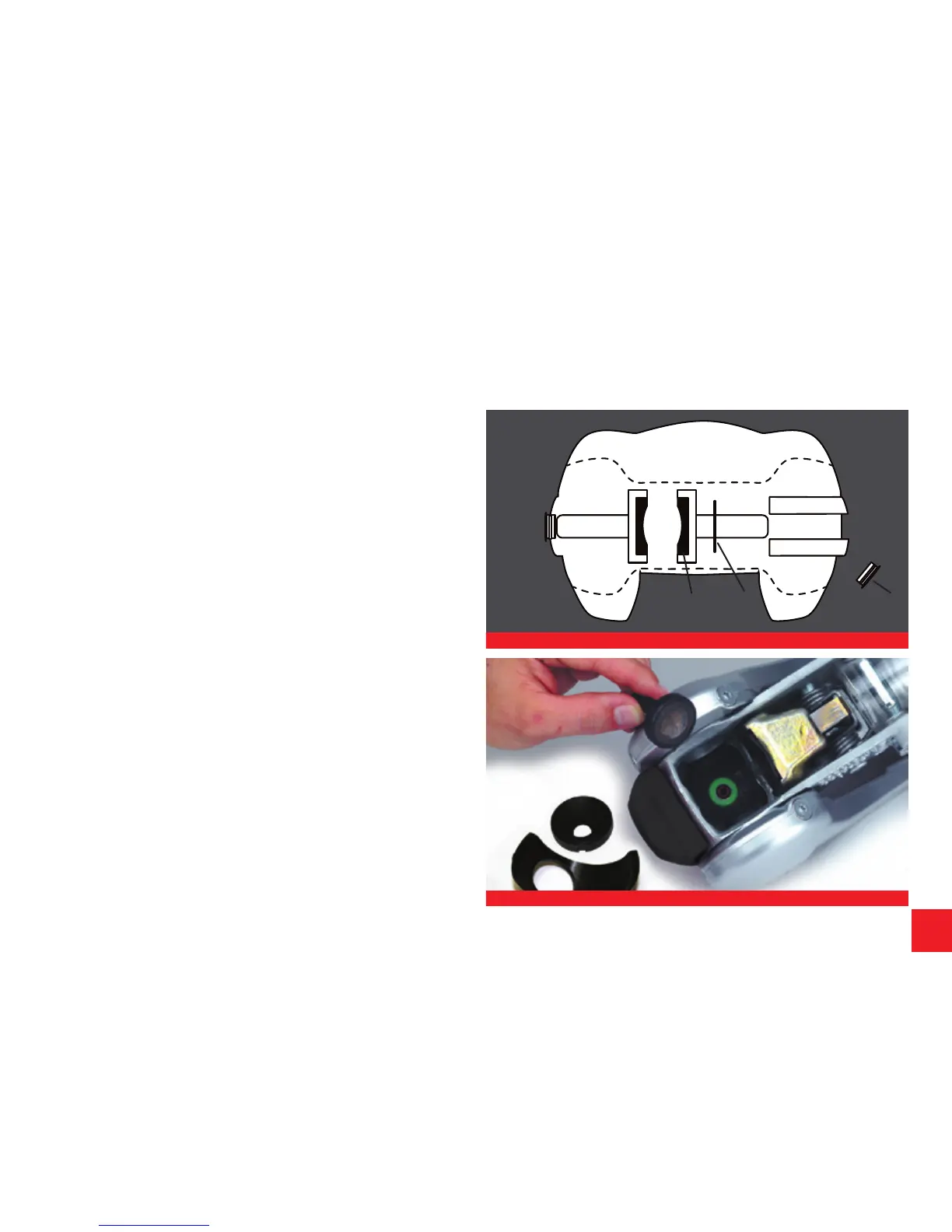

Fig 27 Remove Worn Pads
Fig 27a Insert New Pads
12 3
